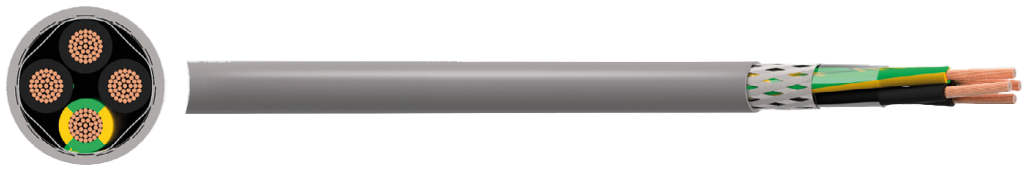

CY LSZH (HSLCH) Control Cable

CHARACTERISTICS

Voltage Rating

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -15°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible plain copper

Insulation

LSZH (Low Smoke Zero Halogen)

Separator

PET (Polyester Tape)

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

LSZH (Low Smoke Zero Halogen)

Core Identification

 Black with     White number

From 3 cores:                                                       Green/Yellow

Colour-coded cores available upon request

Sheath Colour

● Grey

STANDARDS

VDE 0207-303-7,
