CY LSZH (HSLCH) Control Cable
These cables are not used for outdoor or underground installation.
APPLICATION
Low smoke halogen-free flexible screened cable for instrumentation and control equipment in tooling machinery,production lines, and flexible applications with free movement without tensile load. Suitable for use in dry, ambient and wet rooms. The screen protects against external interference pulses for interference-free transmission. These cables are not used for outdoor or underground installation.
CHARACTERISTICS
Voltage Rating
300/500V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -15°C to +70°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 15 x overall diameter

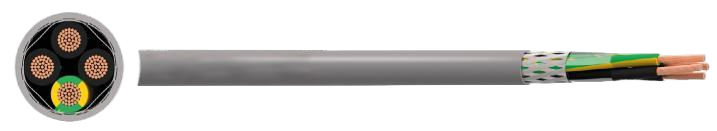

CONSTRUCTION
Conductor
Class 5 flexible plain copper
Insulation
LSZH (Low Smoke Zero Halogen)
Separator
PET (Polyester Tape)
Screen
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification Black with White number
From 3 cores: Green/Yellow Colour-coded cores available upon request
Sheath Colour
● Grey
