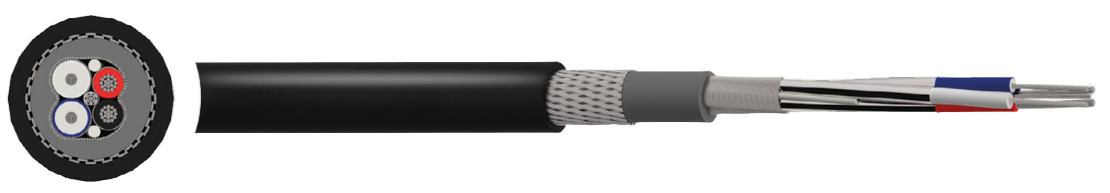

DeviceNet LSZH SWB Cable
A LSZH (Low Smoke Zero Halogen) cable designed for use on DeviceNet systems.
$10.00
APPLICATION
A LSZH (Low Smoke Zero Halogen) cable designed for use on DeviceNet systems. The cable incorporates both a power and data pair for backbone wiring. These cables are also referred to as DeviceNet trunk cables. For installations where fire,smoke emissions and toxic fumes create a potential risk to life and equipment.
CHARACTERISTICS
Voltage Rating
125V
Temperature Rating
Fixed: -20°C to +80°C
Flexed: -5°C to +50°C
Minimum Bending Radius
10 x overall diameter
CONSTRUCTION
Conductor
Pair 1 - Data: Class 2 Stranded tinned copper
Pair 2 - Power: Class 2 Stranded tinned copper
Insulation
1 - Data: Foam-skin PE (Polyethylene)
Pair 2 - Power: Solid PE (Polyethylene)
Shield
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Overall Shield
TCWB (Tinned Copper Wire Braid)
Bedding
LSZH (Low Smoke Zero Halogen)
Armour
GSWB (Galvanized Steel Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: Blue White
Pair 2: Red Black
Sheath Colour
● Black
