DeviceNet Thick LSZH Cable
DeviceNet Thick cable for fixed and occasional flexing indoor applications in CAN technologies.
$15.00
APPLICATION
DeviceNet Thick cable for fixed and occasional flexing indoor applications in CAN technologies. Connects industrial devices, motor starters and PLCs. Commonly used as trunk cables for industrial ethernet installations.
CHARACTERISTICS
Maximum Operating Voltage
300V
Temperature Rating
-30°C to +80°C
Minimum Bending Radius
15 x overall diameter

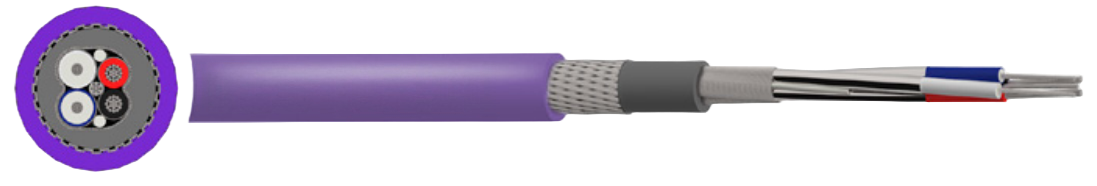

CONSTRUCTION
Conductor
Data Pair: Stranded tinned copper wires
Power Supply Pair: Stranded tinned copper wires
Insulation
Data Pair: Foam-Skin Polyethylene
Power Supply Pair: Solid Polyethylene
Individual Pair Shield
AL/PET (Aluminium/Polyester Tape)
Drain Wire
Tinner Copper
Overall Shield
TCWB (Tinned Copper Wire Braid)
Separation
PET (Polyester Tape)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Data Pair: O Blue
Power Supply Pair: Red
Sheath Colour
● Violet
