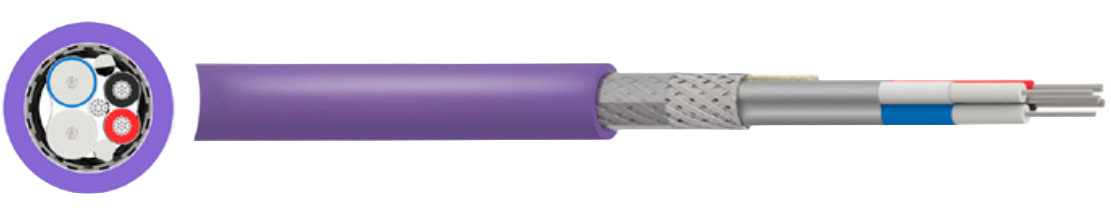

DeviceNet Thin LSZH Cable
DeviceNet cable suitable for fixed and occasional flexing indoor applications in CAN technologies
$15.00
APPLICATION
DeviceNet cable suitable for fixed and occasional flexing indoor applications in CAN technologies. LSZH (Low Smoke Zero Halogen) sheath. The accurate construction and the high shielding efficiency guarantee excellent transmissive performances in environments particularly polluted by electromagnetic interferences. Connects industrial devices, motor starters and PLCs.
CHARACTERISTICS
Voltage Rating
125V
Temperature Rating
Fixed: -20°C to +80°C
Flexed: -5°C to +50°C
Minimum Bending Radius
10 x overall diameter
CONSTRUCTION
Conductor
Data Pair: Class 2 Stranded tinned copper Power Pair: Class 2 Stranded tinned copper
Insulation
Pair 1 - Data: Foam-skin PE (Polyethylene) Pair 2 - Power: Solid PE (Polyethylene)
Shield
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper - 24AWG
Overall Shield
TCWB (Tinned Copper Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
Pair 1: White Blue
Pair 2 Black Red
Sheath Colour
● Violet
