DIN VDE Festoon-Flex -HF D12Y11Y-J 0.6/1 kV Crane Cables PUR Sheathed For Festoon Application（AS/NZS 2802）

Introduction

Industrial crane operations and festoon systems demand cables that can withstand extreme mechanical stress while maintaining reliable electrical performance. The constant motion, varying environmental conditions, and heavy-duty cycles characteristic of material handling equipment require specialized cable solutions that go beyond standard industrial wiring. Modern manufacturing facilities, ports, and construction sites rely on overhead cranes, gantry systems, and automated material handling equipment that operate continuously under demanding conditions.

The Festoon-Flex PUR-HF D12Y11Y-J represents a breakthrough in dynamic cable technology, specifically engineered for the most challenging festoon applications. This advanced low voltage round cable combines the superior mechanical properties of polyurethane (PUR) sheathing with halogen-free insulation materials, creating a solution that excels in environments where traditional cables fail. Whether powering overhead cranes in steel mills, supplying energy to automated warehouse systems, or enabling precise control in manufacturing assembly lines, this cable delivers uncompromising performance where reliability is paramount.

Product Overview

Understanding the technical nomenclature of the Festoon-Flex PUR-HF D12Y11Y-J reveals its sophisticated engineering. The "D12Y11Y-J" designation follows German industrial standards, where each element signifies specific construction characteristics. The "D" indicates the cable's suitability for dynamic applications, while "12Y11Y" refers to the particular insulation and sheath material combinations optimized for festoon use. The "J" suffix denotes the fine-stranded conductor construction essential for repeated flexing applications.

This cable operates at a rated voltage of 0.6/1kV, positioning it perfectly for low-voltage power distribution in industrial environments. The voltage rating ensures compatibility with standard three-phase power systems while providing adequate safety margins for demanding applications. The round cable configuration offers superior flexibility compared to flat alternatives, making it ideal for applications requiring frequent bending and twisting motions.

The primary application scope encompasses festoon systems used in overhead cranes, gantry cranes, and monorail systems. Additionally, the cable excels in reeling systems where continuous winding and unwinding occur, as well as in material handling equipment requiring dynamic power and control connections. Its robust construction makes it suitable for both indoor and outdoor installations across various industrial sectors.

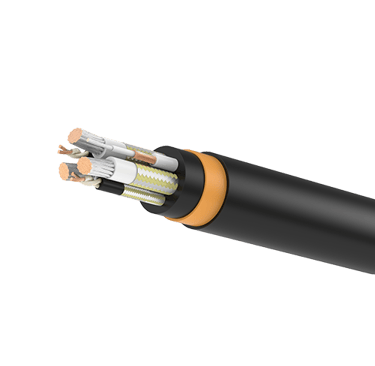

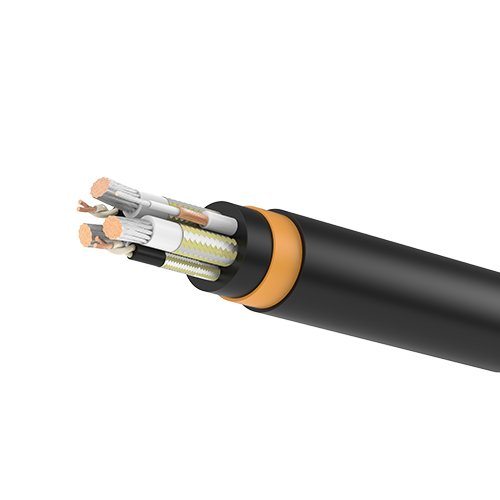

Cable Construction & Materials

The conductor design represents a critical component of the Festoon-Flex PUR-HF D12Y11Y-J's superior performance. Utilizing fine stranded bare copper conductors meeting Class 5 specifications per IEC 60228, the cable achieves exceptional flexibility while maintaining excellent electrical conductivity. The fine stranding construction distributes mechanical stress across numerous individual copper strands, preventing conductor failure even after millions of flex cycles.

The insulation system employs a halogen-free compound based on polyester elastomer, providing several advantages over conventional PVC insulation. This advanced material maintains consistent dielectric properties across a wide temperature range while producing minimal toxic emissions if exposed to fire. The polyester elastomer base offers superior resistance to cracking and degradation under repeated flexing, ensuring long-term reliability in dynamic applications.

The polyurethane (PUR) sheath represents the cable's primary defense against environmental hazards. This specialized formulation exhibits remarkable resistance to abrasion, oil, UV radiation, and ozone exposure. The PUR sheath maintains its flexibility and protective properties across extreme temperature ranges, from arctic conditions to tropical environments. Unlike conventional cable sheaths that become brittle or soft under stress, PUR maintains consistent mechanical properties throughout its service life.

Core identification follows DIN VDE requirements, utilizing clearly printed numbers on each conductor. This identification system ensures reliable installation and maintenance procedures, reducing the risk of connection errors that could result in equipment damage or safety hazards. The printing remains legible even after extended service in harsh environments, facilitating troubleshooting and system modifications.

Electrical Characteristics

The electrical performance specifications of the Festoon-Flex PUR-HF D12Y11Y-J reflect its suitability for demanding industrial applications. Operating at 600/1000 V, the cable provides reliable power transmission for typical three-phase industrial equipment while maintaining appropriate safety margins. The dual voltage rating indicates the cable's capability to handle both phase-to-neutral (600V) and phase-to-phase (1000V) voltages in standard European industrial power systems.

Testing procedures verify the cable's electrical integrity through a 4000V AC test voltage, demonstrating its ability to withstand electrical stress well beyond normal operating conditions. This test ensures the insulation system's reliability and helps identify potential weaknesses before installation. The high test voltage provides confidence in the cable's performance under transient voltage conditions common in industrial environments.

The maximum conductor temperature ratings demonstrate the cable's thermal capabilities: 90°C for continuous operation and 250°C during short-circuit conditions. These specifications ensure the cable can handle normal load currents without degradation while surviving fault conditions long enough for protective devices to operate. The temperature ratings exceed many conventional cables, providing additional safety margins in high-current applications.

Dielectric strength and insulation resistance values meet stringent industrial standards, ensuring reliable operation in electrically noisy environments. The high dielectric strength prevents breakdown under voltage stress, while excellent insulation resistance maintains system efficiency and safety. These characteristics remain stable throughout the cable's service life, even under continuous flexing conditions.

Common Question: How do I determine if my cable has electrical problems?

Answer: Monitor for signs such as intermittent power loss, unusual heating, flickering lights, or tripping circuit breakers. Use a multimeter to check continuity and insulation resistance. Any readings outside manufacturer specifications indicate potential electrical issues requiring professional attention.

Mechanical and Environmental Performance

The mechanical performance characteristics of the Festoon-Flex PUR-HF D12Y11Y-J set it apart from conventional industrial cables. The cable achieves high flexibility with a minimum bending radius of only 6 times the outer diameter, allowing tight routing in confined spaces while maintaining structural integrity. This exceptional flexibility results from the careful selection of conductor stranding, insulation materials, and sheath formulation.

Travel speed capabilities up to 210 m/min accommodate the most demanding crane and material handling applications. This specification ensures the cable can keep pace with high-speed automated systems without mechanical failure or premature wear. The ability to maintain performance at such speeds requires precise engineering of every cable component, from conductor stranding to sheath elasticity.

Operating temperature range from -40°C to +80°C enables installation in virtually any climate or industrial environment. The cable maintains its mechanical and electrical properties across this entire temperature spectrum, ensuring consistent performance whether installed in refrigerated warehouses, outdoor construction sites, or high-temperature manufacturing facilities.

Environmental resistance capabilities include protection against water ingress, UV radiation, mechanical stress, and torsional forces up to ±25°/m. The water resistance prevents electrical faults in wet environments, while UV resistance ensures outdoor installations maintain their properties without degradation. Mechanical stress resistance allows the cable to withstand impacts, crushing forces, and abrading contact with equipment structures.

Common Question: What causes premature cable failure in festoon systems?

Answer: Primary causes include exceeding minimum bend radius, incorrect installation angles, inadequate support systems, environmental contamination, and operating beyond specified speed or temperature limits. Regular inspection and proper installation techniques prevent most failures.

Typical Applications

Festoon systems on overhead cranes represent the most demanding application for the Festoon-Flex PUR-HF D12Y11Y-J cable. These systems require cables that can travel hundreds of meters while supporting their own weight and maintaining electrical continuity. The cable's construction ensures reliable performance in bridge cranes, gantry cranes, and jib cranes across industries from steel production to container handling.

Conveyor and reeling applications benefit from the cable's ability to withstand continuous winding and unwinding cycles. Whether powering conveyor drive motors, control systems, or instrumentation, the cable maintains its electrical and mechanical properties through millions of operational cycles. Reeling drum applications particularly benefit from the cable's resistance to crushing and abrasion.

Industrial automation and material handling systems increasingly rely on dynamic flex cables for robotic operations, automated guided vehicles, and flexible manufacturing systems. The Festoon-Flex PUR-HF D12Y11Y-J provides the reliability these systems demand while meeting the stringent safety requirements of modern industrial facilities.

Monorail systems in automotive manufacturing, aerospace assembly, and general industrial applications require cables that can follow complex paths while maintaining consistent electrical performance. The cable's flexibility and durability make it ideal for these applications where traditional rigid wiring would fail.

Compliance with Standards

Adherence to DIN VDE 0250-814 ensures the Festoon-Flex PUR-HF D12Y11Y-J meets German industrial standards for flexible cables in dynamic applications. This standard specifies construction requirements, testing procedures, and performance criteria that guarantee consistent quality and reliability across different manufacturers and applications.

IEC 60332-1 flame retardant compliance provides fire safety assurance in industrial installations. The cable's ability to self-extinguish and resist flame propagation protects both personnel and equipment in the event of fire. This characteristic is particularly important in confined spaces where smoke and toxic gases pose significant hazards.

IEC 60754-1/2 halogen-free emissions certification ensures the cable produces minimal toxic gases if exposed to fire. This feature is crucial in occupied buildings, underground installations, and confined spaces where personnel evacuation might be delayed. The halogen-free construction also reduces corrosive gas emissions that could damage sensitive electronic equipment.

RoHS and CE directive compliance demonstrates the cable's environmental responsibility and European market compatibility. RoHS compliance ensures the cable contains no hazardous substances, while CE marking indicates conformity with European Union safety, health, and environmental protection requirements.

Technical Selection Guide

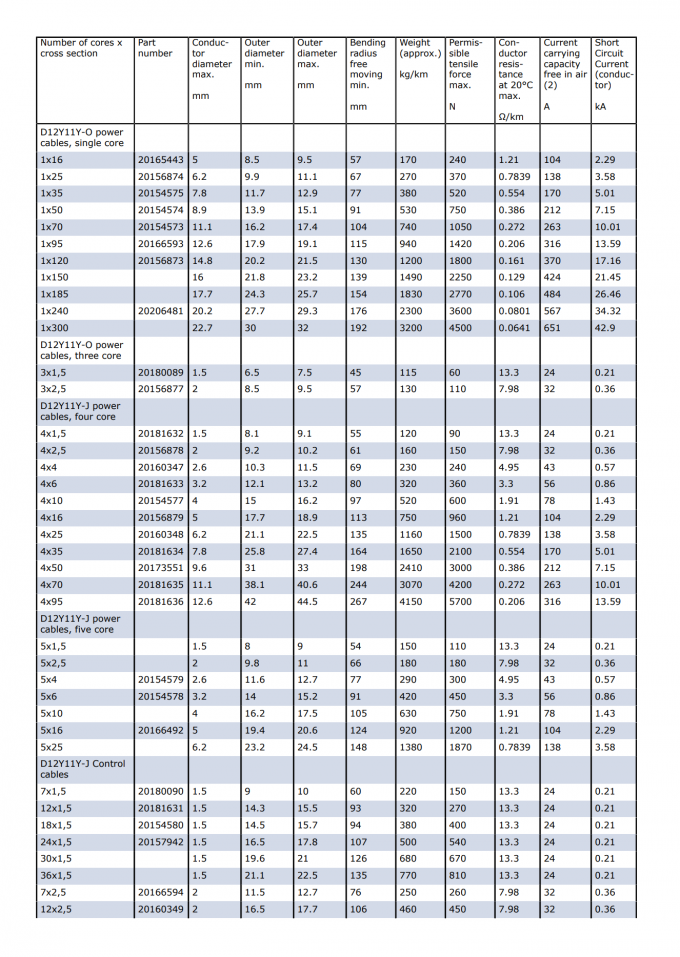

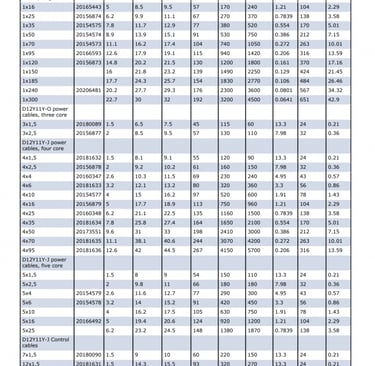

Available conductor configurations include common sizes such as 4G1.5mm², 7G2.5mm², and various other combinations to match specific application requirements. The selection depends on current carrying capacity, voltage drop considerations, and mechanical stress requirements. Larger conductor sizes provide higher current capacity but reduced flexibility, requiring careful balance between electrical and mechanical performance.

Load considerations encompass both electrical current requirements and mechanical forces from cable weight and motion. The cable must carry the required current without excessive voltage drop while supporting its own weight and any additional mechanical loads. Environmental conditions including temperature, humidity, chemical exposure, and UV radiation influence material selection and cable configuration.

Speed requirements determine the cable's construction details, particularly conductor stranding and sheath flexibility. Higher speeds demand finer conductor stranding and more flexible sheath materials to prevent fatigue failure. The selection process must consider not only maximum speed but also acceleration rates and duty cycles.

Common Question: How do I calculate the correct cable size for my application?

Answer: Consider electrical load requirements, voltage drop limitations, ambient temperature, installation method, and mechanical stress factors. Use manufacturer sizing charts and consult electrical codes. Factor in future expansion needs and safety margins for reliable long-term performance.

Installation & Maintenance Tips

Proper bending radius adherence prevents premature cable failure and ensures optimal performance throughout the service life. Never exceed the minimum bending radius of 6 times the outer diameter, and use guided supports at direction changes to prevent kinking. Install cables with smooth, gradual curves rather than sharp bends that concentrate stress.

Festoon arrangement requires careful attention to cable routing, support spacing, and environmental protection. Use appropriate festoon systems with proper carrier spacing to prevent excessive sag while avoiding over-tensioning. Ensure adequate clearance from moving machinery and structural elements that could cause damage.

Securing methods should accommodate thermal expansion and contraction while preventing excessive stress concentration. Use flexible mounting systems that allow natural cable movement without restriction. Avoid rigid clamping that could cause stress concentration and premature failure.

Regular inspection procedures should include visual examination for cuts, abrasion, or deformation, electrical testing for continuity and insulation resistance, and mechanical testing of support systems. Document inspection results and maintain replacement schedules based on operating conditions and manufacturer recommendations.

Common Question: What are the signs that my festoon cable needs replacement?

Answer: Warning signs include visible damage to the outer sheath, conductor exposure, electrical intermittents, unusual heating, reduced flexibility, or cracking. Any of these conditions indicate immediate replacement is necessary to prevent equipment failure or safety hazards.

Conclusion

The Festoon-Flex PUR-HF D12Y11Y-J represents the pinnacle of dynamic cable technology, combining halogen-free environmental responsibility with exceptional mechanical and electrical performance. Its highly flexible construction, oil-resistant properties, and UV stability make it the definitive choice for demanding industrial applications where conventional cables fail.

The cable's comprehensive standards compliance, superior material selection, and proven performance record provide the reliability that modern industrial operations demand. Whether powering overhead cranes in steel mills, supplying energy to automated warehouse systems, or enabling precise control in manufacturing environments, this cable delivers uncompromising performance where failure is not an option.

For engineers and maintenance professionals seeking the ultimate solution for dynamic cable installations, the Festoon-Flex PUR-HF D12Y11Y-J offers the perfect balance of flexibility, durability, and electrical performance. Its advanced PUR sheathing technology and halogen-free construction ensure safe, reliable operation in even the most challenging industrial environments, making it the intelligent choice for critical material handling and crane applications worldwide.
