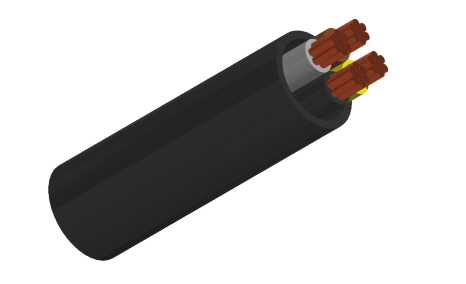

DN-F
Cable
Application and Description
Flexible cable for mobile heavy duty. Suitable for installations in dry, damp or wet locations, outdoors, for hazardous areas with explosive gas atmospheres, machines in industrial workshops, motors and transportable machines; on construction sites and for agricultural exploitations. Suitable for submerged installations (AD8).
Standards
UNE 21150
UNE 21166
EN 60332-1
IEC 60332-1

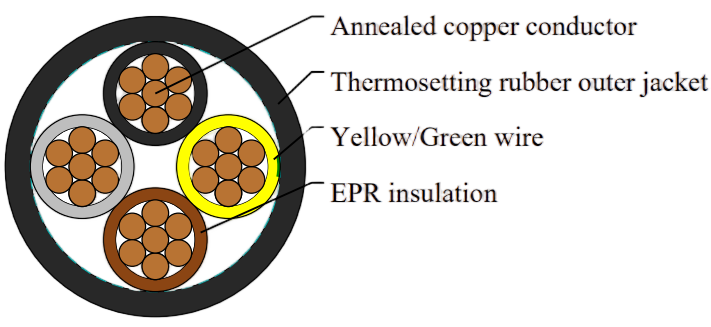

Cable Construction
Flexible electrolytic annealed copper conductor
Class 5 or class 6 in accordance with IEC 60228.
Thermosetting rubber type EPR insulation
Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow
Green-yellow grounding, 3 conductors and above
Thermosetting rubber type SE1 outer sheath
Technical Characteristics
Working voltage | 600/1000 volts |
Test voltage | 2000 volts |
Minimum bending radius | 3 x Ø |
Working temperature | -25°C to +90°C |
Short circuit temperature | +250°C |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
