DP LSZH SWB Cable
A 1 pair LSZH (Low Smoke Zero Halogen) DP cable with a steel wire braid for additional mechanical support. For use on process and fieldbus communications.
$15.00
APPLICATION A 1 pair LSZH (Low Smoke Zero Halogen) Profibus DP cable with a steel wire braid for additional mechanical support. For use on process and fieldbus communications. |
CHARACTERISTICS Voltage Rating 300V (Not for power purposes) Temperature Rating Fixed: -40°C to +80ºC Minimum Bending Radius 10 x overall diameter |

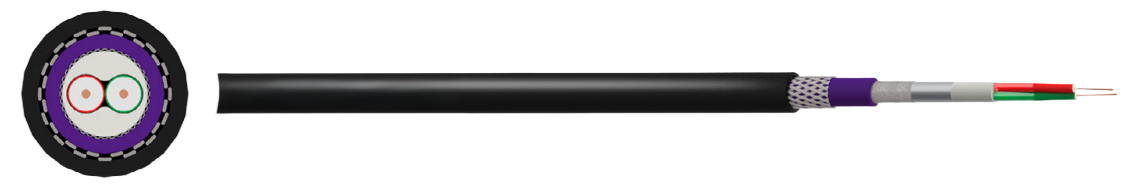

CONSTRUCTION
Conductor
Class 1 solid copper conductor
Insulation
Foam-skin PE (Polyethylene)
Separation
PET (Polyester Tape)
Filler
HFFR (Halogen Free Flame Retardant) compound
Shield 1
Al/PET (Aluminium/Polyester Tape)
Shield 2
TCWB (Tinned Copper Wire Braid)
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Armour
GSWB (Galvanized Steel Wire Braid)
Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
● Green ● Red
Inner Sheath Colour
● Violet
Outer Sheath Colour
● Black
