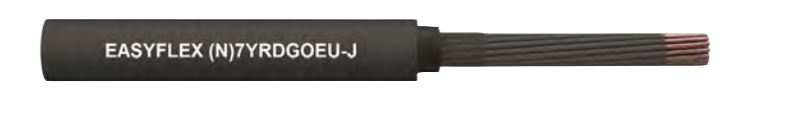

EASYFLEX (N)7YRDGOEU Cable for Simple Reeling Applications
Reliable Connection Cable for Spring Reels in Indoor and Outdoor Use
$2.00
Application
Connection cable for use on spring cable reels. Typical applications in wastewater treatment plants, as well as for simple reelng operating in indoor and outdoor areas.
Global data
Type designation:(N)7YRDGOEU-J
Design features
Conductor Bare electrolytic copper, very finely stranded, class FS
Insulation ETFE for good mechanical and electrical characteristics (see also DIN VDE 0207)
Core identification Black colored insulation with numbers printed in white, earth conductor green-yellow
Core arrangement Laid-up in layers
Inner sheath Basic material EPR, color: black
Outer sheath Basic material EVA, color: black
Electrical parameters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC Test Voltage 3.5 kV (5 Min.)
Current Carrying Capacity description Acc. to DIN VDE 0298-4
Thermal parameters
Max. permissible temperature at conductor 90 °C Max. short circuit temperature of the conductor 250 °C
Ambient temperature for fixed installation min -50 °C ; max +80 °C Ambient temperature in fully flexible operation min -35 °C ; max +80 °C
Mechanical parameters Max. tensile load on the conductor | 15 N/mm² |
Torsional stress | ± 15 °/m |
Min. bending radius | 6 x D |
Travel speed | - Reeling operation: 80 m/min |
Additional tests | Reversed bending test, reeling test |
