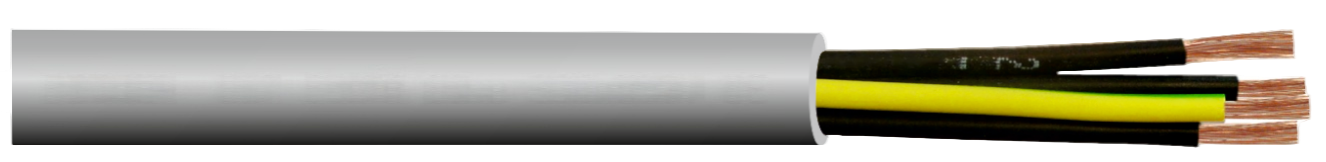

Halogen-Free Control Cables – 300/500V Flexible Power & Signal Solutions

Low Smoke, Flame-Retardant, CPR Certified Cables for Industrial Safety

$1.00

Technical data:

Thermal parameters:

Operating temperature:

fixed installation: -40 °C to 80 °C

flexible connections: -5 °C to 80 °C

Electrical parameters:

Operating voltage: U0/U = 300/500 V

Test voltage (50 Hz): 3000 V

Insulation resistance: 20 MΩ x km

Mechanical parameters:

Min. bending radius:

fixed installation: 5 x Ø

flexible connections: 10 x Ø

Design:

Conductors:

Insulation:

Core identification:

Core arrangement:

Outer sheath:

bare copper conductors, multi-stranded class 5

acc. to EN 60228

halogen-free compound

black, number coded conductors, cables with protective earth conductor marked G (e.g. 7G1,5)

cores twisted together or pairs twisted together

halogen-free compound, self-extinguishing and

flame retardant (acc. to EN 60332-1-2, EN 60332-3-24, cat. C); colour: grey

Application:Flexible, halogen-free power and control cables designed for operation in control and protective devices, as well as in control circuits. Designed especially for installation in industrial areas with increased fire safety requirements (limited flame propagation). Cables suitable for fixed installations and for flexible connections in industrial devices, technological lines and machines operating in dry and humid areas. Cables are halogen-free, low smoke and significantly limit flame propagation. Cables classified according to EN 50575 (CPR).
