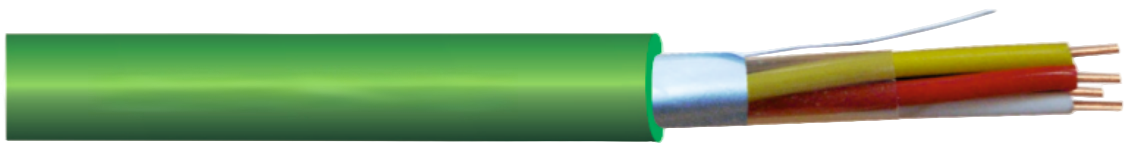

EIB Bus Data Transmission Cable – Halogen-Free and Flame-Retardant

Design:

Conductors:                      solid copper conductors, as per EN 60228

Insulation:                         special halogen-free compound

Core identification:

for a one-pair arrangement: red, black

for a two-pair arrangement: 1p-white/yellow, 2p-red/black

for a four-pair arrangement: 1p-white/blue, 2p-yellow/red, 3p-white/green, 4p-white/brown

Core arrangement:           cores twisted in pairs, pairs twisted together

Screen:                              aluminium backed polyester tape with tinned copper

drain wire Ø 0,4 mm placed longitudinally underneath the screen

Outer sheath:                    special halogen-free, self-extinguishing and flame

retardant (as per EN 60332-1-2); colour: green (one-pair cable), green (two-pair cable) or purple (four-pair cable)

Application:

Cable for transmission of BUS signals in intelligent building management systems based on standards of the European Installation Bus EIB. Signals received from system sensors  (lighting,  temperature,  air  conditioning,  access  control  and  others)  are gathered in the EIB bus, and subsequently processed and used to control a device's operation. Cables can be installed in dry and damp rooms, both within and on walls, as well as in pipes, trays and cable ducts. They may also be used for external applications but suitably protected against direct exposure to sunlight. Cables classified according to EN 50575 (CPR).
