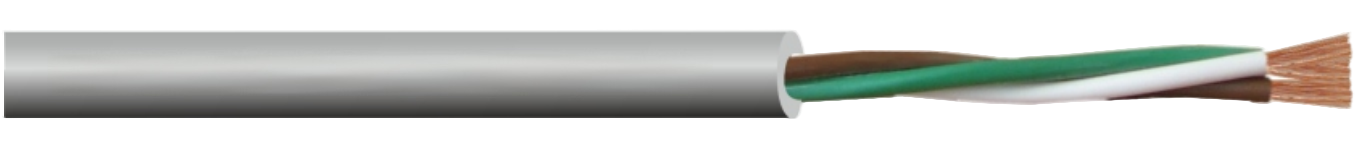

LiHH Halogen-Free Flexible Control Cable 300/300V for Industrial Applications

Technical data:

Thermal parameters

Operating temperature:

fixed installation: -40 °C to 80 °C

flexible connections: -5 °C to 80 °C

Electrical parameters:

Operating voltage: U0/U = 300/300 V

Test voltage: 1500 V

Insulation resistance: 20 MΩ x km

Approximate capacitance (at 800 Hz):

150 pF/m

Approximate inductance: 0,65 mH/km

Mechanical parameters:

Min. bending radius:

flexible connections: 10 x Ø

fixed installation: 5 x Ø

Design:

Conductors:                     bare copper conductors, multi-stranded class 5

acc. to EN 60228

Insulation:                        special halogen-free compound

Core identification:         colours as per DIN 47100

Core arrangement:          cores twisted together or pairs twisted together

Outer sheath:                   special halogen-free compound, self-extinguishing and

highly flame retardant with LOI>29 (as per EN 60332-1-2,    EN 60332-3-24 cat. C); colour: grey, on customer’s request black

Application:

Cables designed for signalling control circuits, control circuits in industrial applications, in measurement technology, for analogue and digital signals transmission in electronic industrial  and  automatic  control  engineering   systems,  for  fixed  installations   and mobile/portable devices. Suitable for usage in internal systems, in both dry and damp rooms. Core arrangement ensures asymmetry attenuation of 10 dB. In the environment with considerable electromagnetic interference we recommend using a screened version

- FEICHUN LiHCH. Cables classified according to EN 50575 (CPR).
