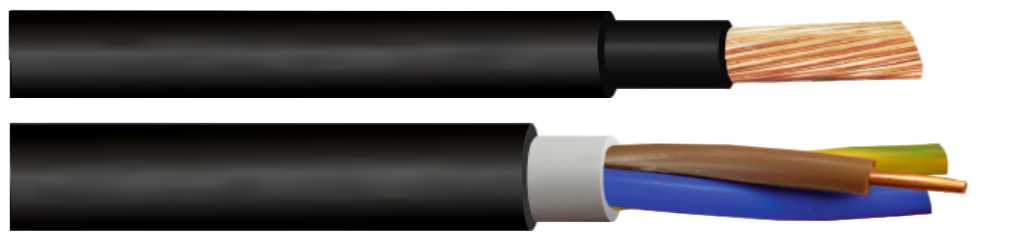

Halogen-Free Power and Lighting Cable 0.6/1kV for Indoor & Outdoor Use

UV-resistant, flame-retardant installation cable designed for safe power distribution in dry, damp, and fire-sensitive environments.

$5.00

Technical data:

Thermal parameters:

Operating temperature:

operation temperature: -40 °C to 90 °C

installation temperature -5 °C to 50 °C

Max core temp. during operation: 90 °C

Max core temp. during short-circuit: 250 °C

Electrical parameters:

Nominal voltage: U0/U = 0,6/1 kV

Test voltage: 4 kV

Mechanical parameters:

Min. bending radius:

for single-core cables: 15 x Ø

for multi-core cables: 12 x Ø

Design:

Conductors:

Insulation:

Core identification:

Core arrangement:

Inner sheath:

Outer sheath:

solid bare copper conductors singlewires class 1 (RE) or multiwires class 2 (RM) acc. to EN 60228

XLPE, special cross-linked, halogen-free compound color coded (acc. to table), G - protective core

(green-yellow)

cores twisted together

special halogen-free compound (multi-core cables only)

special halogen-free compound; colour: black

Application:Halogen-free installation cable for power and lighting installations in facilities with increased fire protection requirements. The cable is suitable for installation in dry and damp rooms, and can be installed under, on or in plaster, as well as in brick walls and directly in concrete (fixed installation only). In underground installations cables should be placed incable ducts or pipes. Cables classified according to EN 50575 (CPR).
