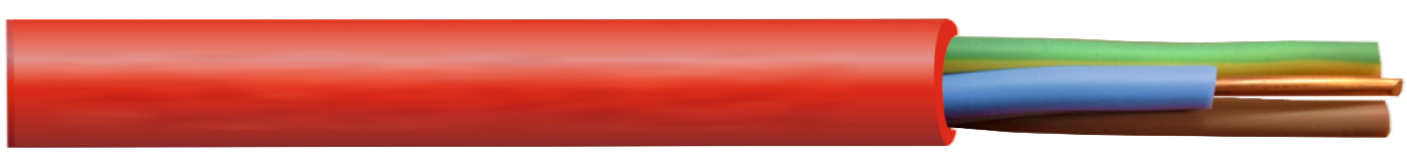

S FE180/E90 Halogen-Free Fire-Proof Power Cable 300/500V
Reliable emergency cable for indoor installations, ensuring 90 min. circuit integrity and 180 min. fire insulation with low smoke emission.
$2.00
Design:
Conductors: bare solid copper conductor, class 1 acc. to EN 60228,IEC 60228
Insulation: special ceramic silicone rubber
Core colors:
without green/yellow earth conductor
2- core – blue, brown
3- core – brown, black, grey
4-core – blue, brown, black, grey
5-core – blue, brown, black, grey, black Above 5 cores – In each layer:
brown (starting conductor), blue (reference conductor), remaining conductors – any freely selected colours
with exception of green, yellow, brown, blue with green/yellow earth conductor
3-core – green/yellow, blue, brown
4-core – green/yellow, brown, black, grey
5-core – green/yellow, blue, brown, black, grey Above 5 cores – In external layer:
green/yellow (starting conductor), blue (reference
conductor) remaining conductors – any freely selected colours with exception of green, yellow, brown, blue
Other layers: brown (starting conductor), blue (reference conductor) remaining conductors – any freely selected colours with exception of green, yellow, brown, blue
Wrapping: polyester tape
Outer sheath: halogen-free compound; colour: red
Operating voltage: 300/500V
Test voltage:
AC 2000V
DC 5000V
Insulation resistance: (min.) 100MΩ*km
Fixed installation: -40℃ do 80℃
Min. bending radius: 10xØ
Installation details:
Indoor cable
Min. installation temperature: -10℃
Environmental resistance:
Halogen-free
Flame retardance on a single wire
Flame retardance on a bunched wires
Fire resistance (acc. to IEC 60331)
Fire integrity function (EN 50200, DIN 4102-12)
Application:Halogen-free fire resistant cables designed for installations in places where it is necessary to ensure operation of devices under fire conditions. They are recommended for emergency lighting installations, smoke extraction systems, alarm systems, signalling systems, sound warning and control systems, fire alarm signalling and automation and other safety ensuring circuits. Under fire conditions those cables ensure correct functioning of installation for at least 90 minutes (PH90) and insulation resistance to fire exposure for 180 minutes (FE180). During burning they do notemit corrosive gases or dense smoke. Cables are suitable for fixed installations inside buildings. |
