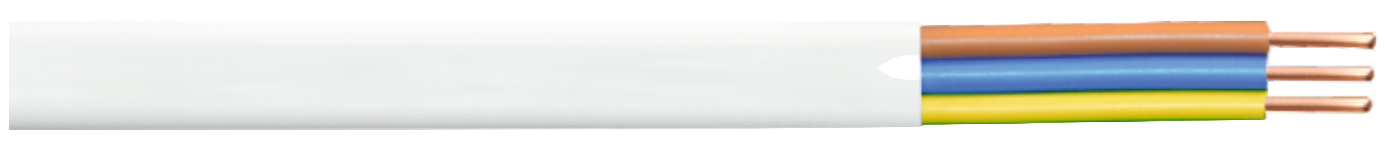

H(p) 450/750V Halogen-Free Flat Power Installation Cable
Fire-safe, low-smoke indoor cable for power and lighting systems, suitable for dry, damp, and masonry installations.
$2.00
Application:Halogen-free instal cables, rated 450/750V, designed for power and lighting installations. Due to high reaction-to-fire class, cables are intended for use in buildings with increased fire safety requirements. They are suitable for operation in dry and damp rooms, both within and on walls, as well as in masonry walls and in concrete (only fixed installations). They may also be used for external application but suitably protected against direct exposure to sunlight. When buried underground, cables should be installed in pipes and cable ducts.
Technical data: |
|
Power cable, halogen-free Operating temperature: -30°C do 80°C Min. Installation temperature -5°C Operating voltage U0/U = 450/750V Test voltage: 2500V Min. bending radius: 5xØ Behaviour in case of fire: B2ca - s1b, d0, a1 |
Design: |
|
Conductors: solid copper conductors class 1 acc. to EN 60228 Insulation: special polymer, halogen-free Core arrangement: cores arranged in parallel Outer sheath: special polymer, halogen-free, self-extinguishing and flame retardant (EN 60332-1, IEC 60332-1, EN 60332-3-24, IEC 60332-3 cat. C) Sheath colour: white |
