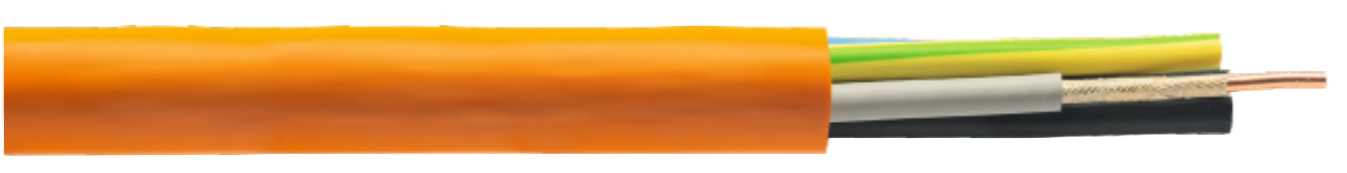

FE180/PH120 Fire-Resistant Halogen-Free Cable 0.6/1kV for Critical Power Supply

Technical data:

Thermal parameters:

Operating temperature:

fixed installation: -40°C to 90°C

min. installation temp.: -5°C

Permissible conductor operating temperature: 90°C

Permissible conductor temperature during

short circuit: 250°C

Electrical parameters:

Operating voltage: U0/U=0,6/1kV

Test voltage: 3500V

Insulation resistance: > 200 MΩxkm Mechanical parameters:

Min. bending radius: 10xØ

Design:

Cores:                                bare copper conductors, singlewires cl.1 (RE) or multiwires cl.2 (RM) (acc. to EN 60228, IEC 60228)

Insulation:                         mica tape wrapping and special halogen-free compound

Core colours:                    up to 5 cores colour coded (acc. to the table), >5 cores number coded conductors, cables with protective earth conductor marked G (e.g. 7G2,5)

Fillers:                               special halogen-free compound, only in multi-core cables over 16mm²

Outer sheath:                    special halogen-free compound, self-extinguishing and flame retardant (acc. to EN 60332-1, IEC 60332-1-2 flame propagation test for a single insulated cable and EN 60332-3-24, IEC 60332-3-24 flame propagation test for vertically-mounted bunched cables); colour: orange
