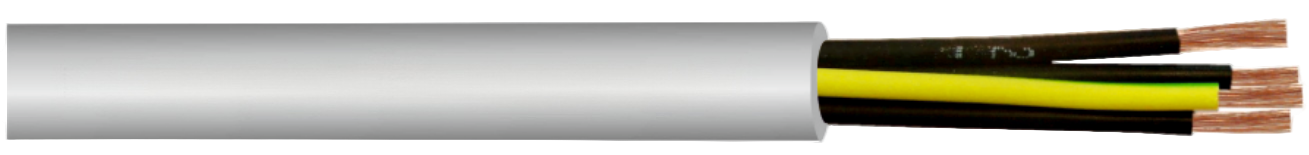

Industrial Control & Signal Cable 300/500V – Multi-Core, Halogen-Free

Technical data:

Thermal parameters:

Operating temperature:

fixed installation: -40 °C to 80 °C

flexible connections: -5 °C to 80 °C

Electrical parameters:

Operating voltage: U0/U = 300/500 V

Test voltage (50 Hz): 3000 V

Insulation resistance: 20 MΩ x km

Mechanical parameters:

Min. bending radius:

fixed installation: 5 x Ø

flexible connections: 10 x Ø

Conductors:                     bare copper conductors, multi-stranded class 5

acc. to EN 60228

Insulation:                        special halogen-free compound

Core identification:          black, number coded conductors

Core arrangement:          cores twisted together or pairs twisted together

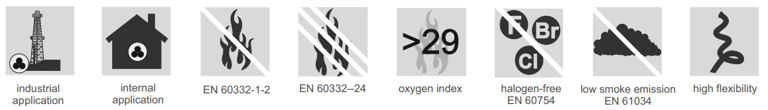

Outer sheath:                   special halogen-free compound, self-extinguishing and

flame retardant (acc. to EN 60332-1-2, EN 60332-3-24, cat. C); colour: grey

Application:

Flexible, halogen-free power and control cables designed for operation in control and protective devices as well as in control circuits. Designed especially for installation in industrial areas with increased fire safety requirements (limited flame propagation). They are suitable for fixed installations and for flexible connections in industrial devices, technological  lines  and  machines  operating  in  dry  and  damp  rooms.  Cables  are halogen-free, low smoke and significantly limit flame propagation. Cables classified according to EN 50575 (CPR).
