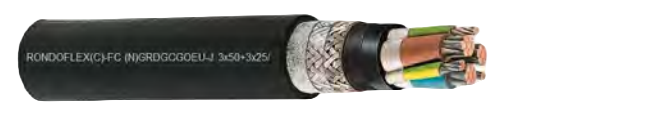

EMC Protected Festoon Cable - RONDOFLEX(C)-FC

Low voltage screened cable for high-stress applications and motor power supply

$30.00

Application

For use on festoon systems, e.g. on gantry cranes, hall gantry cranes, rack material handling equipment, transportation systems or machine tools. Especially suitable where power cables are expected to cause interference and disruption on data cables or where the maximum emission values according to EN 55011/55022 must be achieved.The cables are used under high mechanical stresses and frequent bending. Also suitable for use as flexible motor power supply cable.

Global data

Type designation (N)GRDGCGOEU-J

Standard Based on DIN VDE 0250-814

Certifications / Approvals VDE Reg. Nr. 7841; GOST-R

Mechanical parameters

Max. tensile load on the conductor 15 N/mm²

Torsional stress Not allowed

Min. bending radius Acc. to DIN VDE 0298 part 3

Travel speed - Trolley (festoon system): up to 240m/min

Note: the trouble free operation is influenced by a number of factors (e.g. space, cable

weight, loop length, number of motor driven carriers). It is recommended to consult the cable manufacturer for travel speeds beyond 240 m/min.

Design features

Conductor Bare electrolytic copper conductor, finely stranded, class 5. Earth conductor made of tinned,

extremely finely stranded copper, class FS (better than class 5).

Insulation PROTOLON MS

high grade special compound based on high-quality EPR (at least GI3); improved mechanical and electrical characteristics

Core identification Light colored insulation with numbers printed in black for power and control cables, earth

conductor green/ yellow

Core arrangement Up to 10mm²: 4-core design;

from 16mm² on: three main conductors, earth conductor splitted into three parts and placed into the interstices

Inner sheath Basic material EPR, compound type GM1b, color: black

Screen over inner sheath Braid screen made of tinned copper wires, surface covered: >80%, transfer impedance <100mΩ/

m at <= 30MHz

Outer sheath Basic material PCP, rubber compound 5GM3, colour: black

Electrical parameters Rated voltage	0.6/1 kV (600/1000V)
Max. permissible operating voltage AC	0.7/1.2 kV
Max. permissible operating voltage DC	0.9/1.8 kV
AC Test Voltage	5 kV (5 Min.)
Peak voltage	2400 V
Max. AC voltage for connection on frequency converter	690 V
EMC	Main application thanks to the special cable design

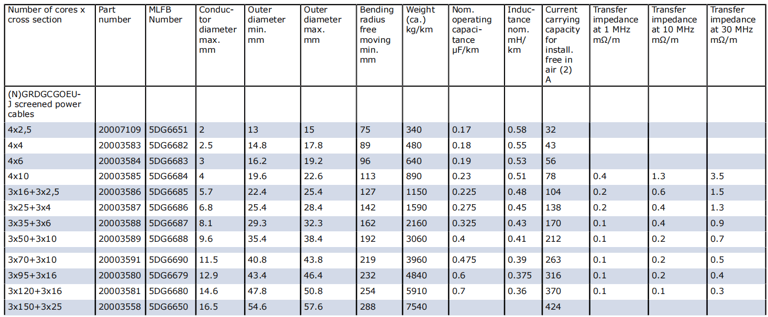

Current Carrying Capacity description	Acc. to DIN VDE 0298-4
