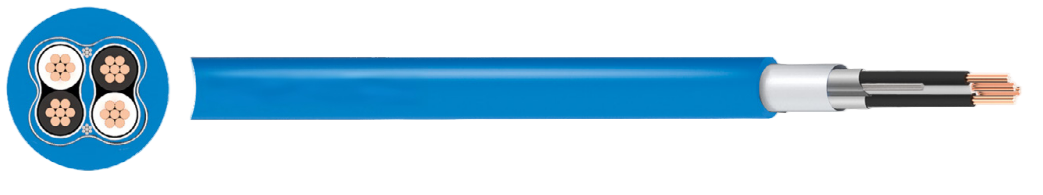

EN 50288-7 RE-2X(st)H LSZH PiMF Instrumentation Cable

APPLICATION

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Pairs are individually shielded for enhanced signal security. Not suitable  for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.、

CHARACTERISTICS

Voltage Rating

300V

Operating Temperature

Fixed: -40°C to +80°C

Flexed: 0°C to +50°C

Minimum Bending Radius

6 x overall diameter

CONSTRUCTION

Conductor

0.5mm² - 0.75mm²: Class 5 flexible Copper 1mm² and above: Class 2 stranded Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Individual and Collective Screen

Al/PET (Aluminium/Polyester Tape)

Drain Wire

Tinned Copper

Sheath

LSZH (Low Smoke Zero Halogen) - UV Resistant

Core Identification

Pairs: White Black, numbered

Triples: o White ● Black Red

Outer Sheath Colour

● Blue ● Black

Note

500V rated cables available on request
