EN 50288-7 - RE-2X(st)H SWAH LSZH PiMF Cable
STANDARDS: EN 50288-7, EN 50288-1, EN 60228
$30.00
APPLICATION
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Pairs are individually shielded for enhanced signal security to prevent cross-talk within cable. Suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.
CHARACTERISTICS
Voltage Rating
300V
Operating Temperature
Fixed: -40°C to +80°C
Flexed: 0°C to +50°C
Minimum Bending Radius
10 x overall diameter

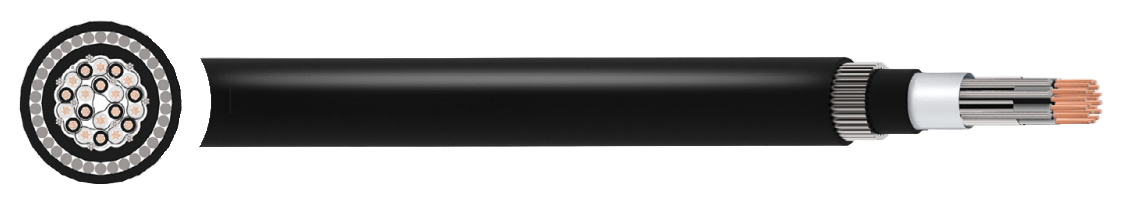

CONSTRUCTION
Conductor
0.5mm² - 0.75mm²: Class 5 flexible Copper 1mm² and above: Class 2 stranded Copper
Insulation
XLPE (Cross-Linked Polyethylene)
Individual and Collective Screen
Al/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned Copper
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Armour
SWA (Galvanised steel wires)
Outer Sheath
LSZH (Low Smoke Zero Halogen) - UV Resistant
Core Identification
Pairs: White Black, numbered
Triples: o White ● Black ● Red
Outer Sheath Colour
Blue Black
