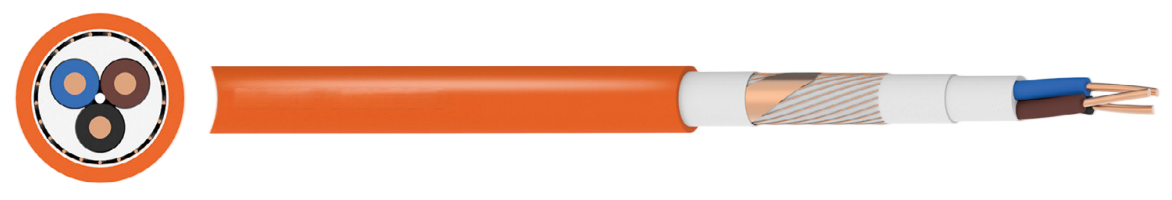

EN 60332-3-24 NHXCH FE180-E30 0.6/1kV Safety Cable
Fire-Resistant LSZH Cable with FE180 and E30 Integrity for Reliable Indoor Protection
$3.00
APPLICATION Safety cables are used in all locations where a high degree of protection against fire and fire damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors. They may not be installed directly into the ground or into water. Fire resistant to FE 180 and Circuit integrity to E 30. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating -5°C to +90°C Minimum Bending Radius 12 x overall diameter |
CONSTRUCTION
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation
LSZH (Low Smoke Zero Halogen)
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Concentric Conductor
Copper wires with counter helix of copper tape
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 cores:
Brown
Blue
3 cores: ● Brown ● Black
Grey
4 cores: ● Brown ● Black
Grey ● Blue
5 cores: ● Brown ● Black
Grey ● Blue ● Black
7 core and above:
Black with
White numbers
Sheath Colour
Orange
