EN 60332-3-24 NHXCH FE180-E90 0.6/1kV Safety Cable
High-Security Fire-Resistant Cable with FE180 and E90 Circuit Integrity for Critical Indoor Installations
$3.00
APPLICATION Suitable for use in all locations where a high degree of protection against fire and fire damage has to be provided for human life and equipment. These cables may be used indoors. Not suitable for direct burial or in water. Fire resistant to FE 180 and Circuit Integrity to E 90. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating -5°C to +90°C Minimum Bending Radius 12 x overall diameter |

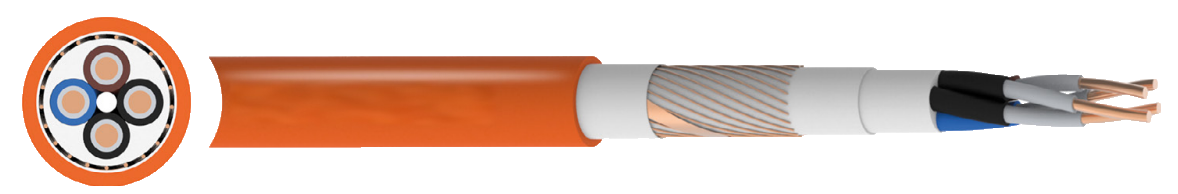

CONSTRUCTION
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation
LSZH (Low Smoke Zero Halogen)
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Concentric Conductor
Copper wires with counter helix of copper tape
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 cores:
Brown
Blue
3 cores: ● Brown ● Black
Grey
4 cores: ● Brown ● Black
Grey ● Blue
5 cores: ● Brown ● Black
Grey ● Blue ● Black
7 core and above:
Black with
White numbers
Sheath Colour
Orange
