EN 60332-3-24 NHXH FE180-E30 0.6/1kV Safety Cable
Fire-Resistant Cable with FE180 and E30 Integrity for Reliable Indoor and Outdoor Protection
$10.00
APPLICATION Safety cables are used in all locations where a high degree of protection against fire and fire damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground or into water. Fire resistant to FE 180 and Circuit Integrity to E 30. |
CHARACTERISTICS Voltage Rating Uo/U 0.6/1kV Temperature Rating -5°C to +90°C Minimum Bending Radius RE: 12 x overall diameter RM: 15 x overall diameter |

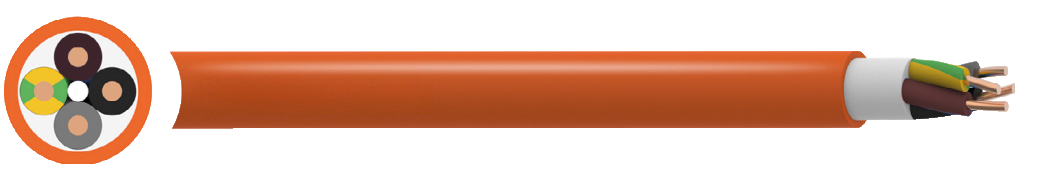

CONSTRUCTION
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation
LSZH (Low Smoke Zero Halogen)
Inner Sheath
LSZH (Low Smoke Zero Halogen)
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
3 cores: Brown Blue Green/Yellow
4 cores: Brown Black Grey Green/Yellow
5 cores:
Brown Black Grey Blue Green/Yellow
7 core and above: Black with White numbers
Sheath Colour
Orange
STANDARDS
DIN VDE 0266, DIN VDE 0276-604, DIN VDE 0472-814, EN 60228
