Enhanced Fire Resistant Cable BS7629-1
Enhanced fire Resistant cables for use primarily in fire detection, fire alarm, voice alarm, and emergency lighting circuits.
$1.50
APPLICATION Enhanced fire Resistant cables for use primarily in fire detection, fire alarm, voice alarm, and emergency lighting circuits. These cables are designed to continue to operate for a period of time in a fire situation. ‘Enhanced grade’ fire resistance is recommended for systems, in particular building types, in which cables might need to operate correctly during a fire for periods in excess of those normally required for single phase evacuation of a building. |
CHARACTERISTICS Voltage Rating Uo/U 300/500V Temperature Rating -40°C to +90°C Minimum Bending Radius 6 x overall diameter |

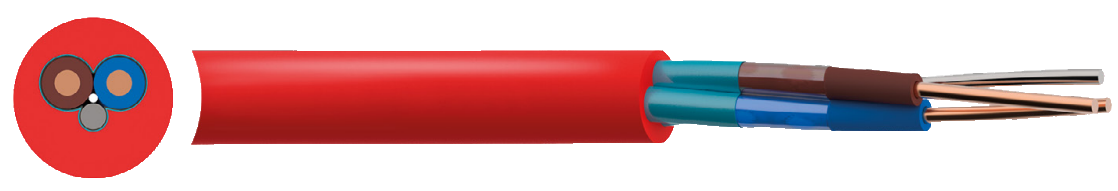

CONSTRUCTION
Conductor
1.5mm2 - 2.5mm2 : Class 1 solid conductor
4mm2 : Class 2 stranded conductor
Insulation
Mica/Glass fire resistant tape covered by high performance fire resistant silicone rubber
Overall Screen
Al/PET (Aluminium/Polyester Tape)
Circuit Protective Conductor
Tinned copper
Outer Sheath
LSZH (Low Smoke Zero Halogen)
Core Identification
2 cores: Blue Brown + Bare Earth
3 cores: ● Brown ● Black Grey + Bare Earth
4 cores: ● Blue ● Brown ● Black Grey
Sheath Colour
● Red O White
