Enhancing Mine Safety with AS/NZS 1972 Single Point Suspension Cable (SPS) – Borehole Cables for Underground Coal & Metalliferous Mines

The mining industry's relentless pursuit of deeper deposits and more challenging extraction environments has necessitated innovative electrical infrastructure solutions. Among these critical technologies, Single Point Suspension Cable (SPS) systems have emerged as essential components for powering underground operations safely and efficiently. These specialised cables, also known as borehole cables, represent a sophisticated engineering solution designed to meet the unique electrical and mechanical demands of subterranean mining environments.

1. Introduction to Single Point Suspension Cable (SPS)

1.1 Definition and Purpose of SPS Cables

Single Point Suspension Cable systems are engineered electrical distribution solutions specifically designed for vertical power transmission in mining applications. Unlike conventional horizontal cable installations, SPS cable mining systems must support their entire weight whilst maintaining electrical integrity over substantial vertical distances. These cables incorporate specialised construction features that enable them to function as both electrical conductors and structural suspension elements, eliminating the need for separate support infrastructure in vertical shafts and boreholes.

The primary purpose of these systems extends beyond simple power transmission. They provide a cost-effective means of establishing electrical infrastructure across expansive underground mining operations, where traditional cable installation methods would prove impractical or prohibitively expensive. By enabling power distribution through vertical boreholes drilled at strategic locations, SPS systems allow mining operators to supply electricity to working areas in tunnels and underground galleries without extensive horizontal cable runs.

1.2 "Borehole Cable" Terminology Explained

The term "borehole cables" derives from their typical installation method and operational environment. These cables are specifically designed to be lowered into vertical boreholes or shafts, where they remain suspended from a single point at the surface. This installation approach requires cables that can withstand the mechanical stresses associated with their own weight whilst maintaining electrical performance under challenging underground conditions.

The borehole installation method offers significant advantages in mining operations, particularly where surface access is limited or where underground geography makes horizontal cable installation challenging. The self-supporting nature of these cables eliminates the need for intermediate support structures within the borehole, simplifying installation and reducing ongoing maintenance requirements.

1.3 Importance in Underground Coal and Metalliferous Mines

Underground mining operations present unique electrical challenges that standard industrial cables cannot address adequately. Coal mines, with their inherent explosion risks and stringent safety requirements, demand electrical systems that meet exceptional safety standards whilst providing reliable power distribution. Similarly, metalliferous mines often require power transmission over significant vertical distances to reach ore bodies located deep underground.

The importance of reliable electrical infrastructure in these environments cannot be overstated. Power failures in underground mining operations can compromise ventilation systems, lighting, and critical safety equipment, potentially endangering personnel and disrupting production. SPS systems provide a robust solution that minimises these risks through their specialised design and compliance with rigorous Australian standards.

2. Standards and Compliance

2.1 Overview of AS/NZS 1972 Specification

The AS/NZS 1972 standard represents the cornerstone of underground coal mining electrical safety in Australia and New Zealand. This comprehensive specification establishes stringent requirements for electrical equipment and cables used in coal mining environments, with particular emphasis on explosion prevention and personnel safety. The standard encompasses design requirements, testing protocols, and installation guidelines that ensure electrical systems can operate safely in potentially explosive atmospheres.

For SPS cable mining applications, AS/NZS 1972 compliance ensures that cables meet specific requirements for insulation integrity, conductor design, and mechanical strength. The standard mandates rigorous testing procedures that validate cable performance under extreme conditions, including exposure to moisture, mechanical stress, and temperature variations commonly encountered in underground mining environments.

2.2 Key Compliance Requirements for SPS Cables

AS/NZS 1972 compliance for suspension cables encompasses several critical design and performance criteria. Cables must demonstrate adequate insulation resistance under high humidity conditions, maintain structural integrity when subjected to their maximum suspended weight, and resist degradation from underground environmental factors. The standard also specifies requirements for conductor materials, insulation compounds, and protective sheathing that ensure long-term reliability in challenging mining conditions.

Mechanical compliance requirements are particularly stringent for SPS systems, given their unique loading conditions. Cables must withstand torsional forces that can develop during installation and operation, whilst maintaining electrical continuity under varying mechanical stress. The double armour construction required by AS/NZS 1972 provides the necessary mechanical protection whilst ensuring the cable can support its own weight over extended vertical distances.

2.3 Benefits of AS/NZS 1972 Certification

Certification to AS/NZS 1972 provides mining operators with confidence that their electrical infrastructure meets the highest safety and performance standards. This certification represents comprehensive validation of cable design, materials, and manufacturing processes, ensuring consistent quality and reliability. For mining companies, AS/NZS 1972 certified mining suspension cable systems provide assurance that their electrical infrastructure will perform reliably under the demanding conditions typical of underground mining operations.

The certification process involves extensive testing that validates cable performance across a range of operating conditions. This includes mechanical testing to verify suspension capabilities, electrical testing to confirm insulation integrity and conductivity, and environmental testing to ensure long-term durability. The rigorous nature of this certification process means that certified cables have demonstrated their ability to meet or exceed performance requirements in real-world mining applications.

2.4 Long-tail Keyword Integration

When selecting an AS/NZS 1972 certified mining suspension cable, operators gain access to proven technology that has undergone comprehensive validation. This certification ensures that the cable will perform reliably in the challenging underground environment whilst meeting all relevant safety requirements.

3. Mechanical Design Features

3.1 Built-in Mechanical Components vs. Electrical Conductors

The sophisticated design of SPS cables integrates mechanical and electrical components into a unified system that addresses the unique requirements of vertical power transmission. Unlike conventional cables where mechanical support is provided by separate infrastructure, SPS systems incorporate structural elements directly into the cable design. This integration includes specialised armour configurations that provide the tensile strength necessary to support the cable's weight whilst protecting the electrical conductors from mechanical damage.

The mechanical components of SPS cables are engineered to work in harmony with the electrical elements. Galvanised steel wire armour provides the primary mechanical support, whilst conductor screens and metallic screening ensure electrical integrity. This integrated approach eliminates the mechanical stress that would otherwise be transmitted to the electrical conductors, ensuring consistent electrical performance throughout the cable's operational life.

3.2 Armour and Suspension Wire Design Details

The armour system in high-strength SPS cable for mining applications employs a sophisticated double-layer configuration specifically engineered to resist torsional forces. The primary armour layer, constructed from galvanised steel wires with a nominal diameter of 3.2mm, provides the fundamental mechanical strength required for suspension applications. This armour configuration is designed to distribute mechanical loads evenly across the cable structure, preventing stress concentration that could compromise electrical or mechanical performance.

The suspension wire design incorporates specific geometric arrangements that optimise load distribution whilst minimising cable diameter. The precise lay angle of the armour wires is calculated to provide maximum tensile strength whilst resisting the torsional forces that develop during installation and operation. This design approach ensures that the cable maintains structural integrity even under dynamic loading conditions that can occur in active mining environments.

3.3 Cable Construction: Conductor Area, Diameter and Armour Underlay

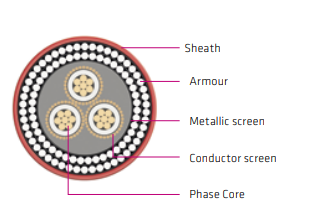

SPS cable construction follows a carefully engineered hierarchy of components that optimise both electrical and mechanical performance. The conductor cores utilise plain circular compacted copper with areas ranging from 185mm² to 400mm² for 11kV applications, and 185mm² to 300mm² for 22kV systems. These copper conductors are designed to provide optimal current-carrying capacity whilst maintaining the flexibility necessary for installation through vertical boreholes.

The insulation system employs Cross Linked Polyethylene (XLPE) with both conductor and insulation screens to ensure reliable electrical performance. The metallic screen, constructed from plain annealed copper wire, is designed to provide not less than 50% conductance of one associated power conductor, ensuring adequate fault current handling capability. The outer sheath utilises red 5V-90 polyvinyl chloride (PVC) that provides environmental protection whilst maintaining flexibility at the operating temperature range of up to +90°C.

4. Electrical Performance

4.1 Voltage Ratings (11 kV and 22 kV Options)

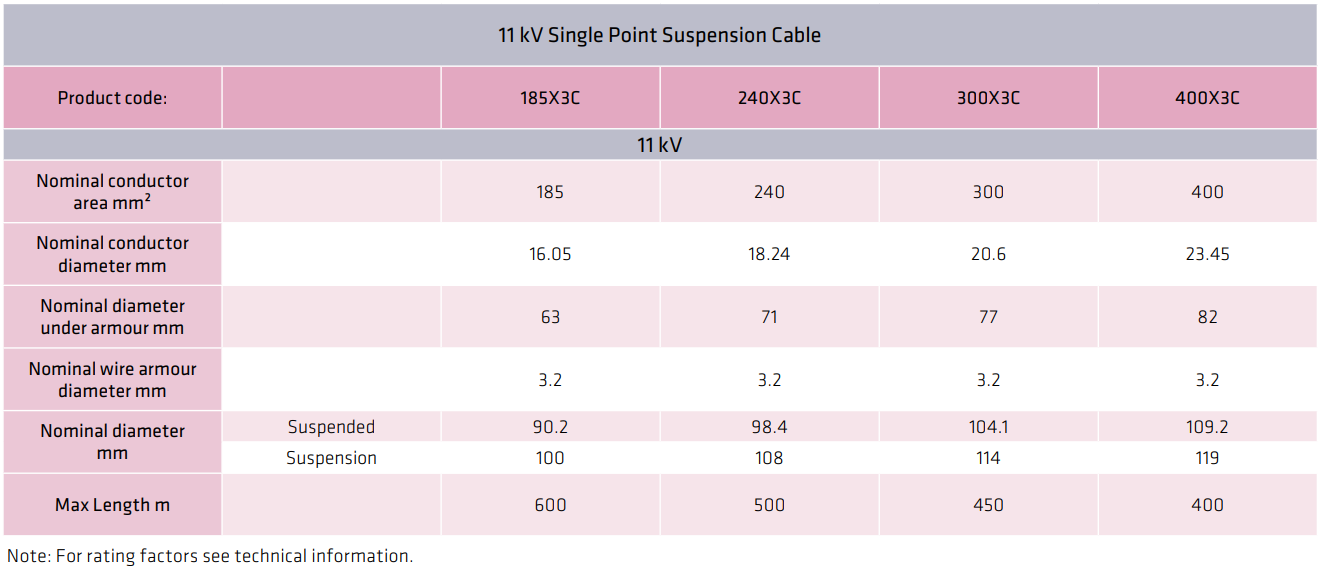

SPS cables are available in two primary voltage configurations to meet diverse mining power distribution requirements. The 11kV systems, operating at 6.35/11kV, provide an optimal balance between power transmission capability and system complexity for many underground applications. These systems are particularly well-suited to medium-scale mining operations where power requirements can be met efficiently at this voltage level.

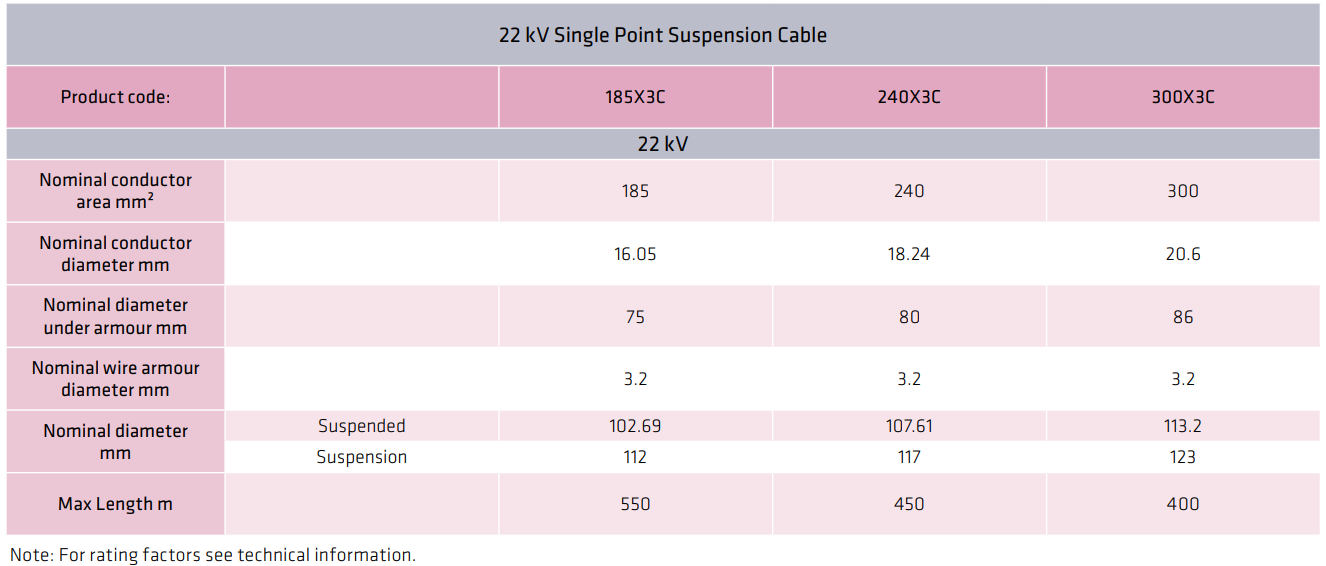

The 22kV option, operating at 12.7/22kV, addresses the needs of larger mining operations requiring power transmission over greater distances or higher power densities. The higher voltage rating enables more efficient power transmission by reducing current requirements for a given power level, thereby minimising transmission losses and enabling the use of smaller conductor cross-sections. This voltage level is particularly advantageous in deep mining operations where power must be transmitted over significant vertical distances.

4.2 Conductivity and Insulation Properties

The electrical performance of AS/NZS 1972 electrical suspension cable systems depends critically on the quality and design of both conductor and insulation materials. The plain circular compacted copper conductors provide excellent electrical conductivity whilst maintaining the mechanical properties necessary for reliable operation under stress. The compaction process increases the effective conductor cross-sectional area, improving current-carrying capacity whilst reducing overall cable diameter.

The XLPE insulation system offers superior electrical properties compared to alternative insulation materials, including excellent dielectric strength, low dielectric losses, and resistance to electrical degradation over time. The extruded semiconducting compound screens, bonded to the insulation during manufacture, ensure uniform electric field distribution around the conductor, preventing localised stress concentrations that could lead to premature failure.

4.3 Thermal Capacity and Current-Carrying Capabilities

Thermal management in SPS cable systems presents unique challenges due to their vertical installation configuration and limited heat dissipation opportunities. The current-carrying capacity of these cables is influenced by factors including ambient temperature, installation method, and the thermal properties of the surrounding environment. The maximum operating temperature of +90°C provides adequate thermal headroom for most mining applications whilst ensuring long-term insulation reliability.

The thermal capacity calculations for suspension cables must account for the reduced heat dissipation available in borehole installations compared to conventional underground or direct buried installations. This consideration influences both the cable design and the application of derating factors that ensure safe operation within thermal limits. Proper thermal management is essential for maintaining the long-term reliability and electrical performance of the installation.

5. Application in Underground Mines

5.1 Use in Coal Mining Operations

Coal mining applications present some of the most demanding requirements for electrical cable systems, combining the need for intrinsic safety with reliable power transmission in challenging environmental conditions. SPS cables in coal mining operations typically provide power distribution from surface installations to underground working areas, enabling the operation of essential equipment including ventilation fans, lighting systems, and material handling equipment.

The explosion risk inherent in coal mining environments requires that all electrical installations meet stringent safety requirements. SPS cables designed for coal mining applications incorporate additional safety features and comply with specific testing requirements that validate their suitability for use in potentially explosive atmospheres. The reliable operation of these cables is crucial for maintaining the safety systems that protect underground personnel.

5.2 Use in Metalliferous Mining Operations

Metalliferous mining operations utilise underground metalliferous mine suspension cable systems to provide power distribution in environments that may be less constrained by explosion risks but present other significant challenges. These applications often require power transmission over greater vertical distances, as metalliferous ore bodies are frequently located at substantial depths below surface installations.

The robust construction of SPS cables makes them particularly well-suited to metalliferous mining applications where mechanical durability and long-term reliability are paramount. The ability to provide power distribution through boreholes drilled at strategic locations enables efficient mine development and operation, reducing the infrastructure requirements for power distribution compared to conventional cable installation methods.

5.3 Installation Methods and Support Systems

The installation of SPS cables requires careful consideration of mechanical and electrical factors that ensure safe and reliable operation. The single-point suspension method necessitates adequate surface support structures capable of supporting the full weight of the suspended cable whilst providing secure attachment points that can accommodate any dynamic loading. The installation process typically involves careful cable deployment to prevent mechanical damage and ensure proper cable positioning within the borehole.

Support system design must account for factors including wind loading on surface installations, potential ground movement, and the long-term mechanical properties of the support structure. The installation method should minimise mechanical stress during deployment whilst ensuring that the cable achieves its design position without exceeding safe bending radii or mechanical stress limits.

6. Installation Best Practices

6.1 Suspension Point Considerations

The design and construction of suspension points for SPS cable installations require careful engineering analysis to ensure adequate safety factors and long-term reliability. Suspension points must be capable of supporting the full weight of the cable plus any dynamic loads that may develop during operation or adverse weather conditions. The attachment method should distribute loads evenly and provide secure connection that will not deteriorate over the operational life of the installation.

Environmental factors affecting suspension point design include wind loading, temperature variations, and potential ground movement. The suspension point should accommodate thermal expansion and contraction of the cable whilst maintaining secure attachment. Access for inspection and maintenance should be incorporated into the suspension point design to enable ongoing condition monitoring and preventive maintenance activities.

6.2 Handling and Storage Guidelines

Proper handling and storage of SPS cables prior to installation is crucial for maintaining their mechanical and electrical integrity. The significant weight and specialised construction of these cables require appropriate handling equipment and techniques to prevent damage during transport and storage. Cable drums should be stored on firm, level surfaces and protected from environmental factors that could affect cable condition.

The durable borehole cable installation guide emphasises the importance of maintaining minimum bending radii during all handling operations to prevent damage to conductors or armour systems. Temperature considerations during storage should account for the thermal properties of the insulation and sheathing materials, ensuring that cables are not exposed to temperature extremes that could affect their long-term performance.

6.3 Inspection and Maintenance Protocols

Regular inspection and maintenance protocols are essential for ensuring the ongoing reliability and safety of SPS cable installations. Inspection procedures should include visual examination of surface installations, electrical testing to verify insulation integrity, and mechanical assessment of support structures and suspension points. The frequency of inspection activities should be based on environmental conditions, operational requirements, and manufacturer recommendations.

Maintenance activities may include cleaning of surface installations, lubrication of mechanical components, and electrical testing to verify continued compliance with performance specifications. Documentation of inspection and maintenance activities provides valuable data for assessing cable condition and planning future maintenance requirements. Early identification of potential issues enables preventive maintenance that can extend cable life and maintain reliable operation.

7. Safety and Reliability Benefits

7.1 Reduced Conductor Strain and Failure Risks

The specialised design of safe SPS cable mining solution systems significantly reduces the mechanical stress transmitted to electrical conductors compared to conventional cable installations. The integrated mechanical support provided by the armour system ensures that electrical conductors operate in a low-stress environment, reducing the risk of conductor fatigue and mechanical failure. This design approach contributes to extended cable life and improved reliability in demanding mining applications.

The reduction in conductor strain also minimises the risk of electrical failures that could compromise mine safety systems. Reliable electrical supply is essential for maintaining ventilation systems, emergency lighting, and communication systems that protect underground personnel. The robust mechanical design of SPS cables provides assurance that electrical systems will continue to operate reliably even under adverse conditions.

7.2 Enhanced Miner Safety and Operational Uptime

Mining safety depends critically on reliable electrical infrastructure that can maintain power supply to essential safety systems under all operating conditions. SPS cable systems contribute to enhanced safety through their robust design and compliance with stringent safety standards. The reliable operation of these cables ensures that safety-critical systems including ventilation, lighting, and emergency equipment receive uninterrupted power supply.

Operational uptime benefits from the reliability and durability of SPS cable installations. The reduced maintenance requirements and extended service life of these cables minimise planned outages whilst the robust design reduces the likelihood of unplanned failures. This reliability translates directly into improved productivity and reduced operational costs for mining operations.

7.3 Case Studies and Field Performance Summaries

Field experience with SPS cable installations in Australian mining operations demonstrates the effectiveness of these systems in providing reliable power distribution under challenging conditions. Long-term installations have validated the design assumptions and performance expectations, with many installations exceeding their design life whilst maintaining excellent electrical and mechanical performance.

Performance data from operational installations indicates that properly installed and maintained SPS cables provide exceptional reliability with minimal maintenance requirements. The mechanical durability of these cables has been demonstrated in installations subjected to dynamic loading, environmental extremes, and the demanding operational conditions typical of active mining operations.

8. Conclusion and Next Steps

8.1 Summary of Key Features and Benefits

Single Point Suspension Cable systems represent a sophisticated engineering solution that addresses the unique requirements of underground mining power distribution. The integration of mechanical and electrical design elements creates cables that can function reliably as both power transmission and structural suspension systems. Compliance with AS/NZS 1972 standards ensures that these cables meet the highest safety and performance requirements for mining applications.

The key benefits of SPS cable systems include reduced installation complexity, improved reliability, enhanced safety, and cost-effective power distribution over vertical distances. These advantages make SPS cables an essential component of modern mining electrical infrastructure, enabling safe and efficient operation of underground mining facilities.

8.2 How to Source AS/NZS 1972 SPS Cables

Sourcing quality SPS cables requires careful selection of suppliers with demonstrated expertise in mining cable applications and AS/NZS 1972 compliance. Qualified suppliers should provide comprehensive technical support including cable selection guidance, installation recommendations, and ongoing technical support. Verification of certification and compliance documentation is essential to ensure that cables meet all relevant standards and specifications.

The selection process should consider factors including technical specifications, delivery requirements, and the supplier's track record in mining applications. Long-term support capabilities including spare cable availability and technical assistance should be evaluated as part of the supplier selection process.

8.3 Contact Information and Further Reading

Mining operators considering SPS cable installations should consult with qualified electrical engineers and cable specialists to ensure optimal system design and implementation. Professional guidance can help optimise cable selection, installation methods, and maintenance protocols to achieve maximum reliability and service life from SPS cable installations.

Further technical information regarding AS/NZS 1972 requirements, installation best practices, and performance specifications is available from cable manufacturers, mining industry associations, and regulatory authorities. Ongoing developments in cable technology and standards should be monitored to ensure that installations continue to meet current best practices and regulatory requirements.

The implementation of SPS cable systems represents a significant step forward in mining electrical infrastructure, providing the reliability, safety, and performance required for modern underground mining operations. Through careful planning, proper installation, and ongoing maintenance, these systems deliver exceptional value and contribute to the safe and efficient operation of mining facilities across Australia and New Zealand.
