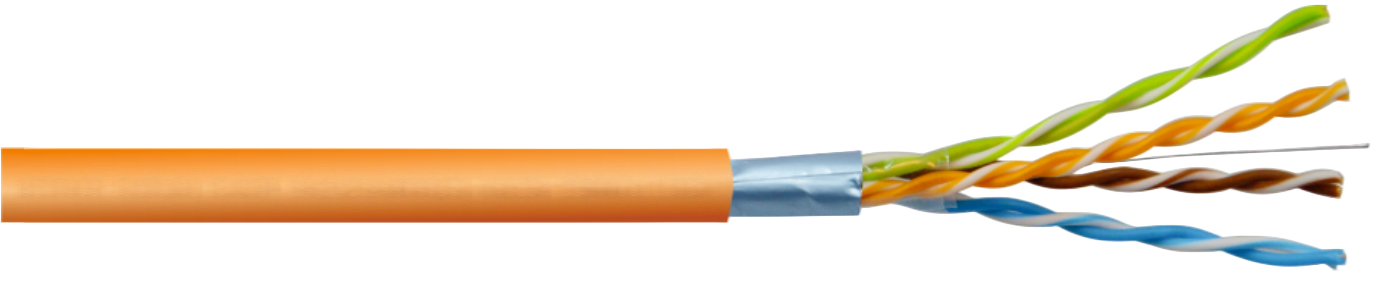

F/UTP Cat.5e LSOH Screened Data Cable 200 MHz

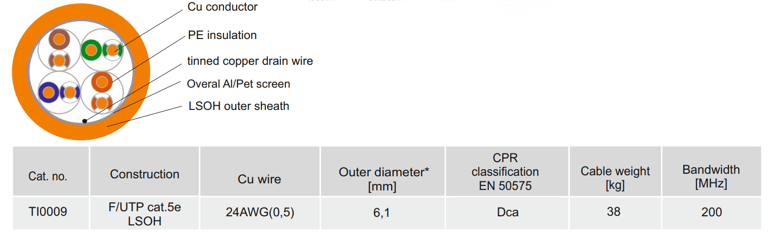

Design:

Conductors:                     solid round copper conductors

Insulation:                        special polyolefin compound

Core identification:         wh/bu-bu, wh/or-or, wh/gn-gn, wh/bn-bn

Core arrangement:          cores twisted in pairs, pairs twisted together

Screen:                             Al/Pet screen with tinned copper drain wire

Outer sheath:                   special LSOH compound

Outer sheath colour:       orange RAL 2003, other colours available on customer's request

Application:

F/UTP cat.5e 200MHz LSOH cables are applicable to computer networks with operating frequency band up to 200MHz. Suitable for transmission of data, audio and video signals, with bitrate up to 1Gb/s. Additional collective Al/Pet screen with tinned copper drain wire acts as a protection against external electromagnetic interferences. Dedicated for fixed  installations  within  indoor  structured  cabling  systems  as  per EN 50173-1, ISO/IEC 11801, ANSI/TIA 568-C.2 standards, as well as within industrial networks  exposed  to  external  electromagnetic   interferences.  Cables  with  flame retardant LSOH outer sheath ensuring low smoke emission acc. to EN 50268, IEC 61034-1(2) and limited emission of corrosive gases acc. to EN 50267, IEC 60754-2, should be installed in places with increased fire safety requirements. Cables classified according to EN 50575 (CPR).
