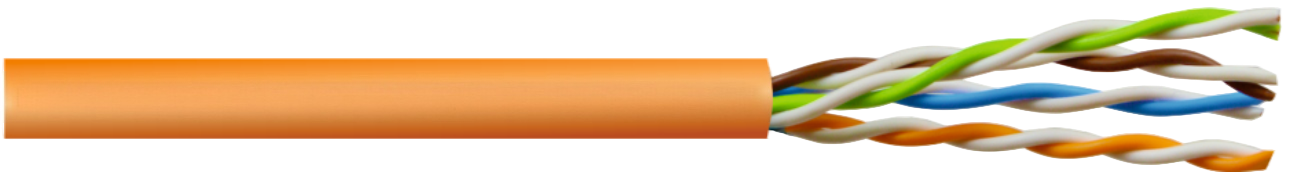

U/UTP Cat.5e LSOH Halogen-Free Data Cable 200 MHz

Basic:

Cable type: LAN cable

Operating voltage: Not specified

Test voltage: 700V AC

1000V DC

Insulation resistance: min 5GΩ/km

Capacity: 50 ± 5 nF/km

Min. bending radius (fixed installations): 4 x Ø

Operating temperature:

Fixed installation: -30℃ do 70℃

DC loop resistance at 20°C (max): 190 Ω/km

Resistance unbalance: 2 %

Capacitance unbalance at 1 kHz (max): max 1600 pF/km

Characteristic impedance: 100±5Ω

Installation details:

Indoor cable

Min. installation temperature: -10℃

Environmental resistance:

Halogen-free

Flame retardance on a single wire

Certificates and approvals:

CPR Certificates / DoP

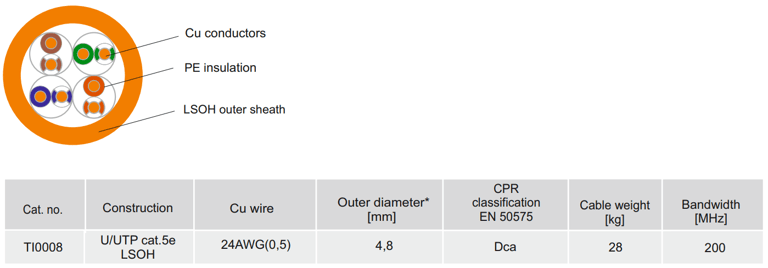

Cable construction:

Basic:

Conductor: bare copper conductors

Core arrangement: pairs / triples / quads

Application:

U/UTP cat. 5e LSOH cables are applicable to computer networks with operating frequency band up to 200MHz. Suitable for transmission of data, audio and video signals with bitrate up to 1Gb/s. Dedicated for fixed installations within indoor structured cabling systems as per EN 50173-1, ISO/IEC 11801, ANSI/TIA 568-C.2 standards, as well as within industrial networks not exposed to external electromagnetic interferences. Cables with flame retardant LSOH outer sheath ensuring low smoke emission acc. to EN 50268-2, IEC 61034-2 and limited emission of corrosive gases acc. to EN 60754-2, IEC 60754-2. should be installed in places with increased fire safety requirements. Cables classified according to EN 50575 (CPR).
