U/UTP Cat.6 LSOH 350MHz Data Transmission Cable
High-Performance Indoor LAN Cable: Halogen-Free Low Smoke, Flame Retardant, Supports 1Gb/s Transmission, Compliant with EN 50575 Standard
$1.00

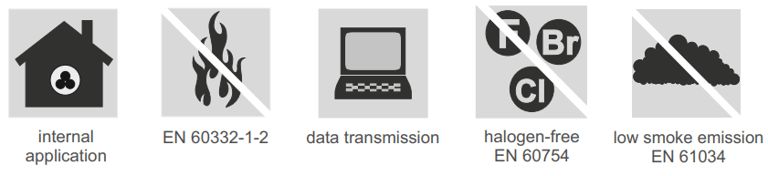

Application: |
U/UTP cat.6 350MHz LSOH cables are applicable to computer networks with operating frequency band up to 350MHz. Suitable for transmission of data, audio and video signals with bitrate up to 1Gb/s. Dedicated for fixed installations within indoor structured cabling systems as per EN 50173-1, ISO/IEC 11801, ANSI/TIA 568-C.2 standards, as well as within industrial networks not exposed to external electromagnetic interferences. Cables with flame retardant LSOH outer sheath ensuring low smoke emission acc. to EN 50268, IEC 61034-1(2) and limited emission of corrosive gases acc. to EN 50267, IEC 60754-2, should be installed in places with increased fire safety requirements. Cables classified according to EN 50575 (CPR). |
Technical data:
Thermal parameters:
Temperature range:
operating temperature: -30 °C to 70 °C
min. installation temp: -10 °C
Electrical parameters:
Conductor diameter: 0,54 ± 0,015 mm
Insulated core diameter: 0,99 ± 0,03 mm DC loop resistance at 20 °C (max):165 Ω/km
Insulation resistance (min): 5 GΩ x km
Resistance unbalance within a pair: ≤ 2 % Mutual capacitance at 1 kHz:50 ± 5 nF/km
Capacitance unbalance pair to groundat 1 kHz (max): 1600 pF/km
Nominal voltage: 150 V Test voltage at 1 min:AC 50 Hz: 700 V；DC: 1000 V
Characteristic impedance at 100 MHz:100 ± 5 Ω
NVP value: 67 %

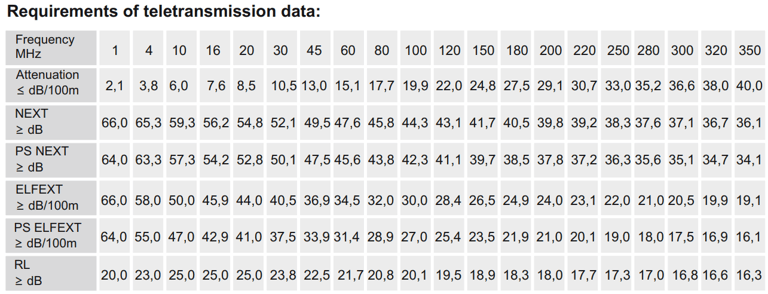

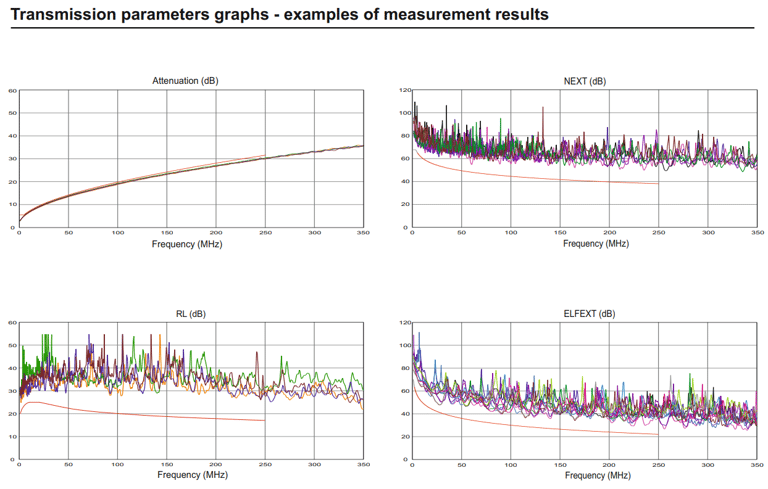

Return loss dB (min):f = 4 ÷ 10 MHz: 20 + 5 x log10(f) f = 10 ÷ 20 MHz: 25；f = 20 ÷ 350 MHz: 25 - 7 x log10(f/20)
Mechanical parameters:
Bending radius:
during operation: ≥ 6 x Ø
during installation: ≥ 8 x Ø
Design:

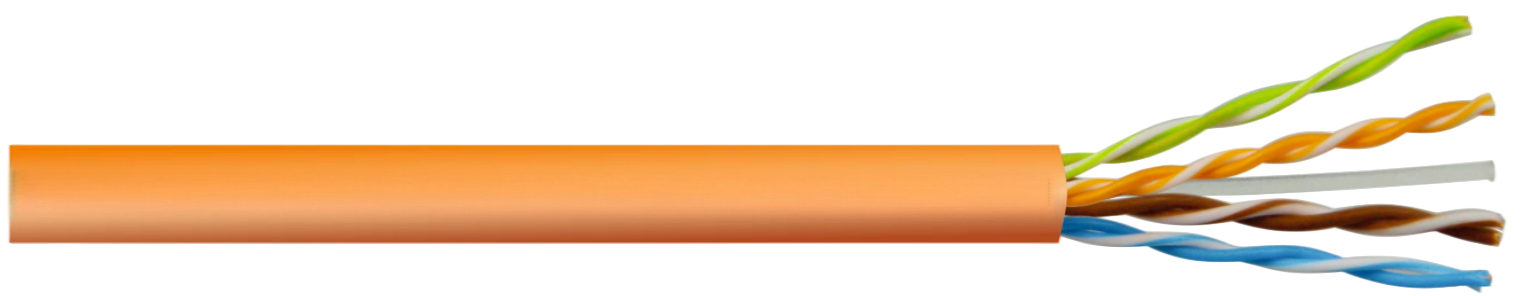

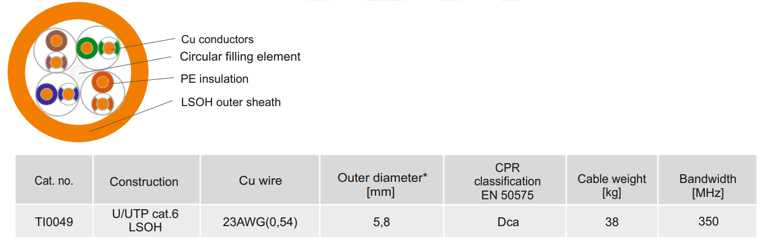

Conductors: solid round copper conductors
Insulation: special polyolefin compound
Core identification: wh/bu-bu, wh/or-or,wh/gn-gn, wh/bn-bn
Core arrangement: cores twisted in pairs, pairs twisted together with a circular filling element
Outer sheath:special LSOH compound
Outer sheath colour: orange RAL 2003, other colours available on customer’s request
