EV MODE 4 Charging Cable
Suitable for installations with possibility of water immersion (AD7). G16 quality HEPR insulation with low corrosive gas emission and low fire propagation properties.
APPLICATION Class 6 flexible power cable with enhanced DC Power rating suitable for Mode 4 EV charging in public and commercial high- powered electric vehicle charging stations. Suitable for installations with possibility of water immersion (AD7). G16 quality HEPR insulation with low corrosive gas emission and low fire propagation properties. |

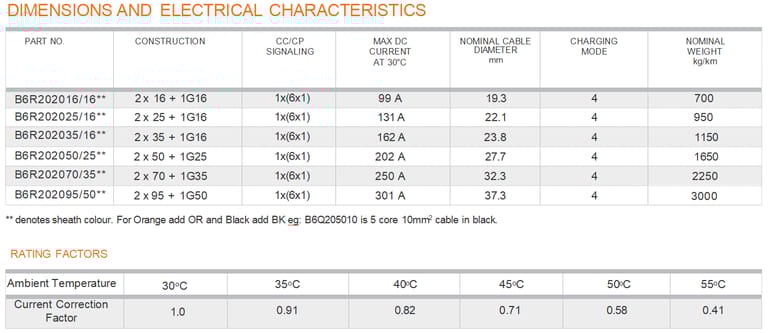

CHARACTERISTICS Voltage Rating 1500V DC Test Voltage 3500V DC (2000V control/pilot cores) Temperature Range -40ºC to +90ºC Maximum Short Circuit Temperature +160ºC
Minimum Bending Radius 5 x overall diameter Maximum Tensile Load 15 N/mm² |

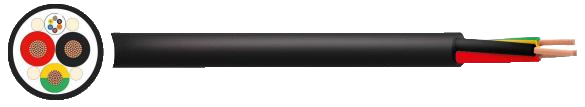

CONSTRUCTION
Conductor
Class 6 Fine Flexible Copper
Insulation
Rubber Compound Type EV1-2
Control/Pilot Cores
Class 5 Flexible Copper with Rubber insulation
Sheath
PUR-HF (Polyurethane Halogen-Free)
Outer Sheath Colour
Black ● Orange
