EVA LSZH Torsion Resistant 1.8/3kV Turbine Cable
3kV LSZH power cable for applications under torsional stresses
APPLICATION
3kV LSZH power cable for applications under torsional stresses. Specifically designed for wind turbines, for transmitting power
from generator to transformer at the base of the tower.
CHARACTERISTICS
Rated Voltage Uo/U
1.8/3kV
Temperature Rating
-40OC + 125OC
Minimum Bending Radius
6x Overall Diameter
Torsion Application
±180°/m

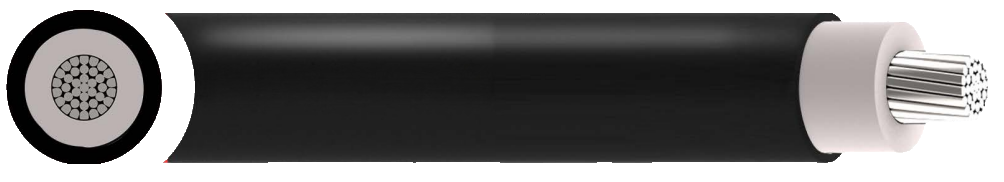

CONSTRUCTION
Conductor
Class 5/6 Flexible Stranded Tinned Copper
Insulation
EPR (Ethylene Propylene Rubber)
Outer Sheath
HF XL-EVA (Halogen Free Cross-linked Ethylene-Vinyl Acetate)
Sheath Colour
● Black
