Feichun CRANE FO 2 x 12 …/125 – Rugged Fiber Optic Crane Cable for PROFIBUS Reeling Systems and Mobile Equipment

Introduction: Industrial Communication Requires Reliability

In today's rapidly evolving industrial landscape, the demand for stable and reliable data transmission in mobile material handling systems has never been more critical. As manufacturing facilities, ports, and automated warehouses become increasingly sophisticated, the backbone of their operations relies heavily on robust communication networks that can withstand harsh operating conditions whilst maintaining uninterrupted data flow.

The emergence of Industry 4.0 and smart manufacturing has amplified the need for high-performance optical PROFIBUS networks capable of supporting long-distance communication across mobile equipment. Traditional copper-based communication systems often fall short when faced with electromagnetic interference, weight constraints, and the demanding mechanical stresses inherent in crane and reeling applications. This is where fiber optic technology proves its worth, offering superior bandwidth, immunity to electrical noise, and lightweight construction that makes it ideal for mobile installations.

Long-distance optical PROFIBUS networks have become essential infrastructure for modern material handling operations. These systems enable real-time monitoring, control, and diagnostics across extensive automated facilities, ensuring optimal performance whilst reducing downtime and maintenance costs. The challenge lies in selecting cables that can endure constant flexing, extreme temperatures, chemical exposure, and mechanical stress whilst maintaining signal integrity over extended distances.

Product Spotlight: Feichun® CRANE FO 2 x 12…/125

The Feichun® CRANE FO 2 x 12…/125 represents a breakthrough in crane fiber optic cable technology, specifically engineered for the demanding requirements of reeling applications in industrial environments. This heavy-duty rubber-sheathed fiber optic cable has been meticulously designed to address the unique challenges faced by mobile material handling equipment, where traditional cables often fail due to mechanical stress and environmental exposure.

This specialised optical cable excels in applications involving both motor-driven and spring-driven reels, making it an ideal solution for a wide range of material handling scenarios. The cable's robust construction ensures reliable performance across various reel systems, from small motor-driven reels used in compact automation systems to larger spring-driven configurations found in heavy industrial applications.

The CRANE FO series demonstrates exceptional compatibility with existing PROFIBUS infrastructure whilst offering the flexibility and durability required for mobile reeling systems. Its design philosophy centres on providing uncompromising reliability in environments where cable failure is not an option, making it the preferred choice for critical communication applications in ports, shipyards, and automated manufacturing facilities.

Key Design Features of the CRANE FO Cable

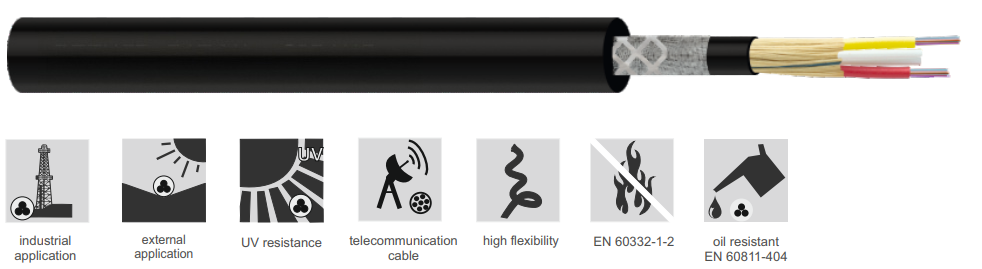

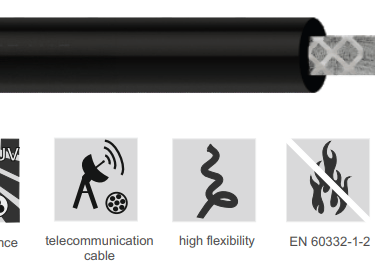

The Feichun® CRANE FO 2 x 12…/125 incorporates a sophisticated double tube construction that houses 24 optical fibres arranged in a 2x12 configuration. This design offers remarkable versatility with multiple fiber type options, including E9/125, G50/125, and G62.5/125 variants, each optimised for specific transmission requirements and distances.

The standard configuration features tube 1 in yellow housing 12 E9/125 fibres, whilst tube 2 in red contains an additional 12 E9/125 fibres. For applications requiring different transmission characteristics, the G62.5 design offers tube 1 in blue with 12 G62.5/125 fibres and tube 2 in red with 12 G62.5/125 fibres. The G50 variant provides tube 1 in green with 12 G50/125 fibres and tube 2 in red with 12 G50/125 fibres.

One of the most valuable features of this optical cable for mobile handling equipment is the availability of custom fiber combinations. Customers can specify mixed configurations such as 12 G50 plus 12 G62.5 fibres, allowing for tailored solutions that meet specific application requirements whilst maintaining cost-effectiveness.

The cable incorporates synthetic strain relief elements strategically positioned to distribute mechanical stress evenly throughout the structure. This design minimises stress concentration points that could lead to fiber damage during dynamic operations. Additionally, the braided reinforcement utilises high-tech multifilament threads that are non-hygroscopic and exhibit low shrinkage characteristics, ensuring dimensional stability across varying environmental conditions.

Technical and Mechanical Advantages

The UV-resistant fiber optic crane cable demonstrates exceptional mechanical properties that set it apart from conventional telecommunications cables. With a maximum reeling speed of 120 metres per minute, the CRANE FO cable can accommodate high-speed operations without compromising signal integrity or mechanical integrity.

The minimum bending radius of 250 millimetres strikes an optimal balance between flexibility and fiber protection, allowing for tight routing around pulleys and guide systems whilst preventing microbending losses that could degrade optical performance. This characteristic is particularly crucial in reeling applications where cables must navigate complex routing paths with limited space.

Perhaps most impressive is the cable's ability to withstand a maximum continuous load of 2000 Newtons during operation. This substantial tensile strength ensures reliable performance even under extreme mechanical stress, making it suitable for heavy-duty crane applications and material handling equipment where cable tension can vary significantly during operation.

The cable's construction incorporates advanced materials science to achieve these mechanical properties whilst maintaining the flexibility essential for reeling applications. The fiber optic cable for small motor-driven reels benefits from optimised jacket materials that provide excellent abrasion resistance whilst remaining pliable across the full operating temperature range.

Durability in Harsh Environments

Environmental durability represents one of the most critical aspects of the CRANE FO cable's design. The outer sheath utilises a heavy-duty rubber compound designated as type 5GM5 according to DIN VDE 0207-21 standards. This specialised rubber formulation provides exceptional resistance to mechanical damage, chemical exposure, and weather-related degradation.

The jacket material consists of thermoplastic elastomer (TPE), which offers superior flexibility and chemical resistance compared to traditional PVC jackets. This material choice ensures that the cable maintains its mechanical properties across a wide temperature range whilst providing reliable protection against oils, solvents, and other industrial chemicals commonly encountered in material handling environments.

Oil resistance certification to IEC 60811-404 standards ensures that the cable can withstand prolonged exposure to hydraulic fluids, lubricants, and other petroleum-based substances without degradation. This characteristic is essential for crane and material handling applications where oil contamination is inevitable.

The cable demonstrates unrestricted outdoor use capabilities with comprehensive resistance to ozone, ultraviolet radiation, and moisture. This makes it an ideal rugged outdoor fiber optic cable for reeling applications where equipment operates in exposed environments subject to varying weather conditions.

Operating temperature specifications encompass a range from -30°C to +80°C for free-moving and festoon applications, ensuring reliable performance across diverse climate conditions. Storage and transportation temperature ratings extend from -40°C to +80°C, providing confidence in the cable's integrity throughout its lifecycle.

Compliance & Standards

The Feichun® CRANE FO cable adheres to comprehensive international standards that ensure compatibility and performance across diverse applications. The E9/125 fibres comply with DIN EN IEC 60793-2-50 and VDE 0888-325 standards, providing assurance of consistent optical characteristics and reliability.

For Gigabit Ethernet applications, the cable meets IEEE 802.3 Gigabit Ethernet Standard requirements, ensuring seamless integration with modern industrial networking infrastructure. The G50 and G62.5 fiber variants comply with ITU-T G.651 and VDE 0888-321 standards respectively, providing comprehensive coverage for various transmission requirements.

Environmental compliance is demonstrated through RoHS 2015/863/EU certification, confirming that the cable meets European Union restrictions on hazardous substances. This certification is increasingly important for equipment deployed in international markets where environmental regulations are stringent.

Fire safety compliance is achieved through certification to IEC 60332-1-2 flame retardant standards. This ensures that the cable will not contribute to fire propagation in the unlikely event of exposure to flames, providing an additional safety margin for critical infrastructure applications.

Fiber colour coding follows ANSI/TIA/EIA 598-A standards, ensuring consistency with international installation practices and simplifying identification during installation and maintenance procedures.

Application Scenarios

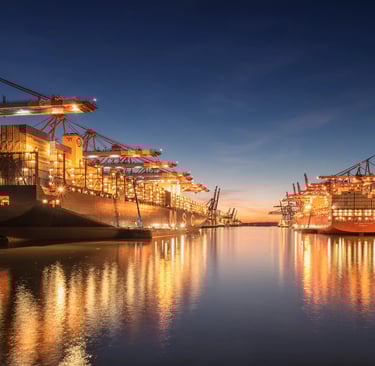

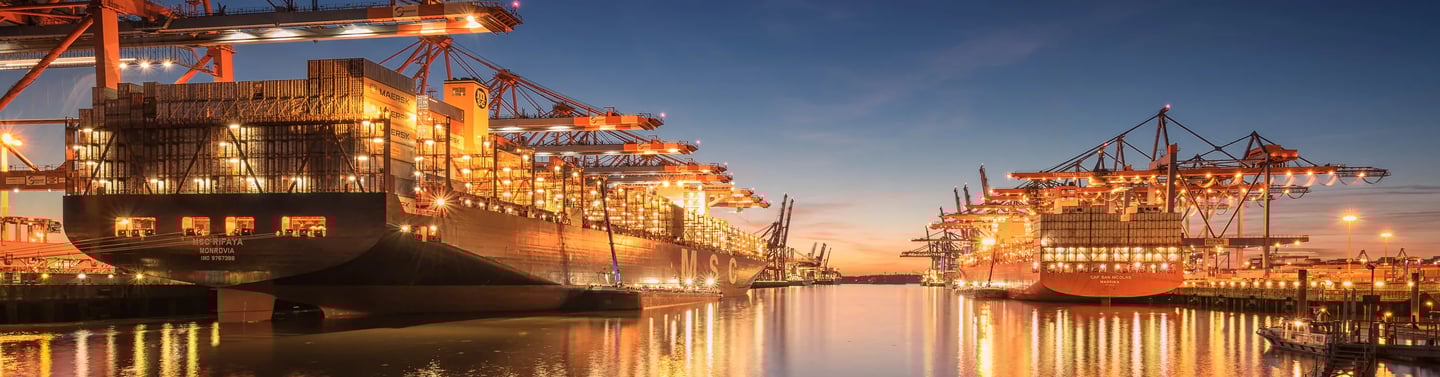

The optical PROFIBUS cable for mobile cranes finds extensive application across diverse industrial sectors where reliable communication is paramount. In port operations, the cable enables seamless data transmission between ship-to-shore cranes and control systems, facilitating efficient container handling operations that are critical to global trade.

Automated stacker systems in manufacturing facilities rely on the CRANE FO cable to maintain constant communication with central control systems whilst navigating complex material handling tasks. The cable's ability to withstand continuous flexing and mechanical stress makes it ideal for these high-cycle applications where downtime can result in significant production losses.

Reclaimer systems in mining and bulk material handling operations benefit from the cable's robust construction and chemical resistance. These systems operate in harsh environments with exposure to dust, moisture, and corrosive substances, making the cable's protective sheathing essential for reliable long-term operation.

The cable for long-distance communication over mobile reels serves critical functions in automated warehousing systems where goods movement is orchestrated by sophisticated control algorithms. Real-time data transmission enables precise positioning and inventory tracking, contributing to operational efficiency and accuracy.

Industrial automation applications spanning automotive manufacturing, steel production, and chemical processing rely on the cable's ability to maintain signal integrity whilst subjected to mechanical stress and environmental challenges. The cable's compatibility with existing PROFIBUS infrastructure simplifies integration into established systems whilst providing enhanced reliability.

Common Cable Issues and Solutions

Q: What causes fiber optic cables to fail in reeling applications?

A: The primary failure modes include mechanical stress from excessive bending, tensile overload during operation, and environmental degradation from chemical exposure or temperature extremes. The CRANE FO cable addresses these issues through its 250mm minimum bend radius specification, 2000N tensile strength rating, and comprehensive chemical resistance properties.

Q: How does temperature variation affect fiber optic cable performance in mobile applications?

A: Temperature fluctuations can cause jacket materials to become brittle or overly flexible, potentially leading to fiber damage. The CRANE FO cable's operating range of -30°C to +80°C ensures consistent performance across typical industrial environments, whilst the TPE jacket maintains flexibility at low temperatures and stability at elevated temperatures.

Q: What maintenance considerations apply to crane fiber optic cables?

A: Regular inspection of connector terminations, monitoring of bend radius compliance, and periodic testing of optical loss characteristics are essential. The CRANE FO cable's robust construction minimises maintenance requirements whilst providing visual indicators such as jacket condition that can alert maintenance personnel to potential issues before failure occurs.

Q: How do you determine the appropriate fiber type for specific applications?

A: The choice between E9/125, G50/125, and G62.5/125 depends on transmission distance, bandwidth requirements, and compatibility with existing equipment. E9/125 offers the best performance for long-distance applications, G50/125 provides optimal characteristics for Gigabit Ethernet, whilst G62.5/125 offers cost-effective solutions for shorter distances with moderate bandwidth requirements.

Why Choose Feichun® for Fiber Optic Crane Cables?

Feichun® has established itself as a leading manufacturer of specialised fiber optic cables through decades of engineering expertise and commitment to quality. The company's approach to custom solutions enables customers to specify unique fiber combinations, cable lengths, and connector configurations that precisely match their application requirements.

The proven performance record of Feichun® cables in demanding industrial environments provides confidence in their reliability and longevity. Extensive testing protocols ensure that each cable meets or exceeds specified performance criteria before delivery, whilst comprehensive documentation supports installation and maintenance activities.

Custom engineering capabilities extend beyond standard configurations to encompass specialised requirements such as enhanced chemical resistance, modified temperature ratings, or unique mechanical properties. This flexibility enables customers to optimise their installations for specific operating conditions whilst maintaining cost-effectiveness.

Conclusion: Fiber Optic Performance for Today's Smart Material Handling

The Feichun® CRANE FO 2 x 12…/125 represents the culmination of advanced fiber optic technology specifically engineered for the demanding requirements of modern material handling systems. Its sophisticated design addresses the critical challenges of mechanical stress, environmental exposure, and signal integrity that have traditionally limited the application of fiber optic cables in mobile equipment.

By combining exceptional mechanical properties with comprehensive environmental protection, the CRANE FO cable enables reliable long-distance communication networks that support the sophisticated control systems essential to contemporary industrial automation. The cable's compatibility with PROFIBUS infrastructure ensures seamless integration whilst its robust construction provides the reliability necessary for critical applications.

As industrial facilities continue to evolve towards greater automation and connectivity, the importance of reliable communication infrastructure cannot be overstated. The CRANE FO cable provides the foundation for these advanced systems, ensuring that data transmission remains stable and reliable regardless of operating conditions.

For organisations seeking to implement or upgrade their fiber optic infrastructure for mobile material handling applications, the Feichun® CRANE FO 2 x 12…/125 offers a proven solution that combines performance, reliability, and cost-effectiveness. Contact Feichun® today to discuss your specific requirements and discover how their expertise can enhance your communication infrastructure performance.

To learn more about the CRANE FO cable specifications or to request a customised quotation for your project, download our comprehensive specification sheet or contact our technical team for personalised assistance.
