FEICHUN EMV-FC (N)SHXCOEU I 0.6/1 kV Halogen-Free Flexible Motor Cable
Durable 0.6/1 kV Cable for Continuous Movement and Heavy Mechanical Stress
$10.00

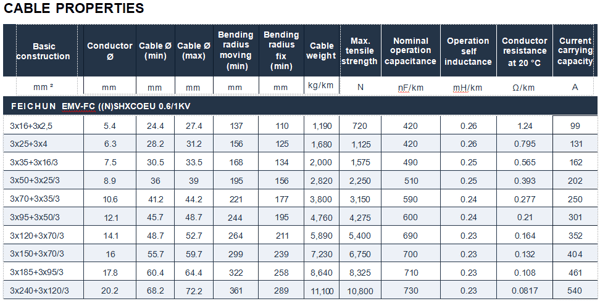

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV; also permitted for U0/U = 640/1140 V |
Peak Voltage | 2400 V |
Test Voltage | 5 kV |
Max Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |

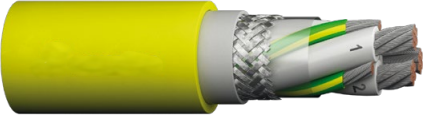

Conductor | Finely stranded tinned copper, class 5 |
Core Configuration | Three main conductors with split earth in the interstices; cores light colored with black numbering for power and control; earth conductor green/yellow |
Shielding | Tinned copper braided screen enhancing EMC compatibility |
Insulation | EPR rubber special compound 3GI3 |
Inner Sheath | Waterproof rubber with special EPR compound |
Outer Sheath | Chlorinated polyethylene (CM/CPE) special compound 5GM5 |
Mechanical Properties | Permanent tensile strength: 15 N/mm² |
Bending Radius | 4 × cable diameter (fixed installation); 5 × cable diameter (flexible operation) |
EMC Compatibility | Yes |
Chemical & Environmental Resistance | Flame retardant; halogen-free; oil resistant; ozone resistant; UV resistant; seawater resistant |
FEICHUN EMV-FC (N)SHXCOEU cable is designed for both fixed installation and flexible operation as motor power supply cable for VFD and FC controlled drives in mining, construction, and similar heavy mechanical stress environments. The cable is suitable for laying on material handling equipment, including continuous movement scenarios such as cable booms or connections between upper and lower cars. It can be permanently immersed in wastewater up to 40 °C at depths of up to 500 meters.
Standards and Certifications
DIN VDE 0250-812
DIN VDE 0207-20 / DIN VDE 0207-21
DIN EN 60228 / IEC 60228 / VDE 0295
DIN EN 60332-1-2 / IEC 60332-1-2
DIN VDE 0298-4
MSHA P-189-3
EAC Certification
Product Features
Halogen-Free and Flame Retardant: Complies with stringent environmental and safety requirements for mining and industrial applications.
Designed for VFD and FC Application: Specially engineered for motor power supply with EMC-compatible copper braided screening.
Robust Mechanical and Electrical Properties: Suitable for flexible and fixed installations with high mechanical stress tolerance.
Chemical and Environmental Resistance: Resistant against oil, ozone, UV radiation, and suitable for limited seawater exposure.
Certified to International Standards: Meets safety, fire, and electrical performance standards relevant to mining and construction industries.
Application Areas

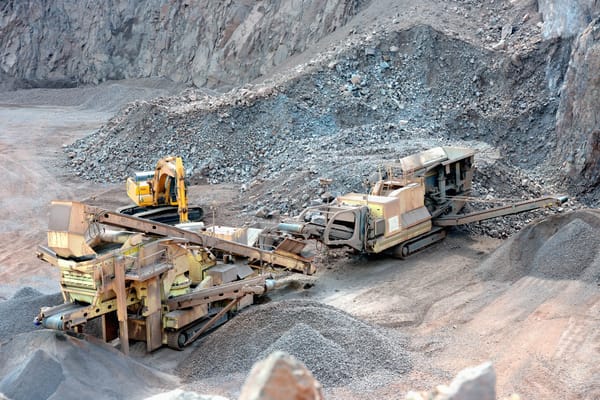

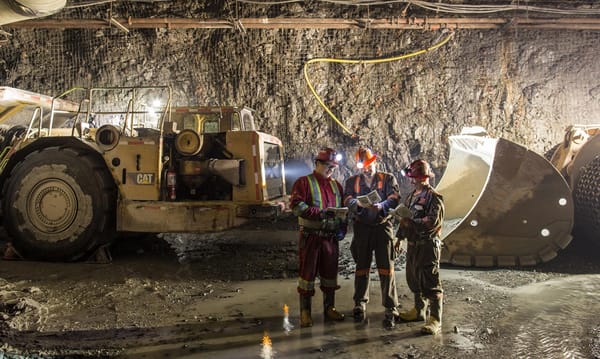

Motor power supply cable for VFD and FC controlled drives in underground mining, construction sites, and material handling equipment subjected to continuous movement.
Installation and Maintenance
Installation per VDE 0298-3 bending radius recommendations with periodic inspections to ensure cable performance.
Customization Services
Available with various conductor sizes, shielding designs, sheath materials, and differing cable lengths to meet specific project needs.
Contact Us
For detailed technical datasheets, quotations, and customized halogen-free flexible cables for VFD and FC applications, please contact our sales or technical teams.
