FEICHUN EMV-FC (N)SSHCOEU I 0.6/1 kV Halogen-Free Flexible VFD Cable
Tinned Copper Shielded Cable for EMC Compatibility and Harsh Environments
$10.00

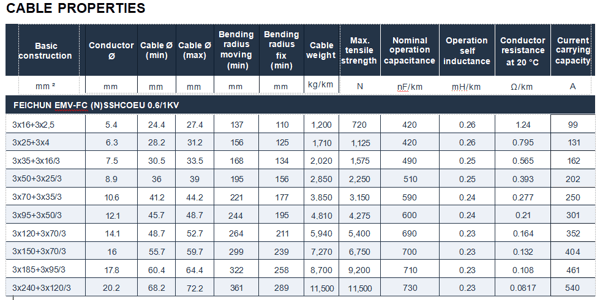

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV |
Test Voltage | 5 kV |
Peak Voltage | 2400 V |
Max Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |

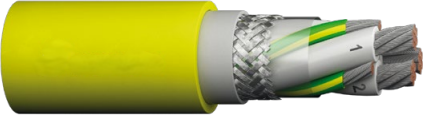

Conductor | Finely stranded, tinned copper, class 5 |
Core Configuration | Three main conductors with split earth conductor in the interstices; light colored insulation with black numbers for power/control cores; earth conductor green/yellow |
Shielding | Tinned copper braided screen for enhanced EMC compatibility |
Insulation | EPR rubber, FEICHUN special compound 3GI3 |
Inner Sheath | Rubber, special EPR waterproof compound |
Outer Sheath | EVA rubber, special compound HM4 |
Mechanical Properties | Permanent tensile strength: 15 N/mm² |
Bending Radius | 4 × cable diameter (fixed installation); 5 × cable diameter (flexible operation) |
Chemical & Environmental Resistance | Flame retardant; halogen-free; oil resistant; ozone resistant; UV resistant; seawater resistant up to max depth |
FEICHUN EMV-FC (N)SSHCOEU is designed for fixed installation and flexible operation in heavy mechanical stress environments, particularly as a motor power supply cable for Variable Frequency Drives (VFD) and Frequency Converter (FC) controlled drives. Used extensively in mining, construction, and similar industries, this cable withstands continuous movement such as on material handling equipment and cable booms. It is suitable for permanent immersion in wastewater up to 40 °C at depths of up to 500 meters.
Standards and Certifications
DIN VDE 0250-812
DIN VDE 0207-20 / DIN VDE 0207-21
DIN EN 60228 / IEC 60228 / VDE 0295
DIN EN 61034-2 / DIN EN 50267-2-2
DIN EN 60332-1-2 / IEC 60332-1-2
DIN VDE 0298-4
EAC Certification
Product Features
Halogen-Free and Flame Retardant: Complies with stringent safety and environmental requirements for mining and industrial use.
Designed for VFD and FC Applications: Suitable for motor power supply with EMC-compatible screened design.
Robust Mechanical Properties: High tensile strength and flexible design support continuous movement applications.
Chemical and Environmental Resistance: Resistant to oils, ozone, UV, and seawater with performance under harsh conditions.
Certified Quality and Compliance: Meets international standards for fire safety, mechanical performance, and electrical properties.
Application Areas

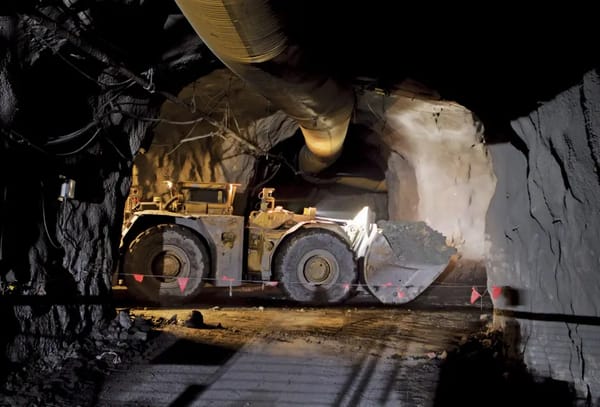

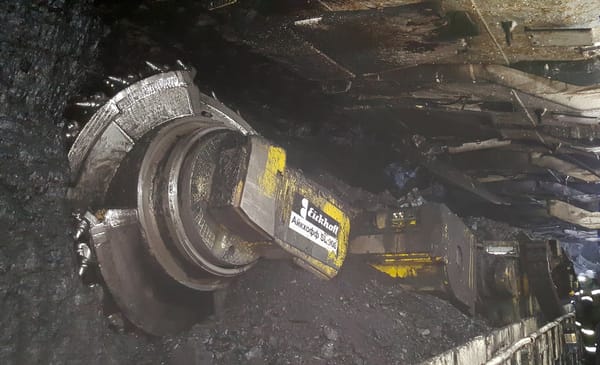

Motor power supply cables for variable frequency and frequency converter drives in mining, construction, material handling, and similar heavy-duty industries.
Installation and Maintenance
Installation according to VDE 0298-3 bending radius guidelines with periodic inspections for optimal reliability and longevity.
Customization Services
Available with various conductor sizes, shielding options, sheath materials, and cable lengths tailored to specific operational demands.
Contact Us
For quotations, technical datasheets, and customized halogen-free flexible rubber cable solutions for VFD and FC applications, please contact our sales or technical teams.
