Feichun FESTOON PUR FO 2 x 12 …/125 Fiber Optic Crane Cable for High-Speed Festoon Systems with Heavy-Duty Trolleys

Introduction

In today's demanding industrial landscape, modern crane operations and festoon systems require robust, reliable solutions that can withstand continuous movement, extreme environmental conditions, and high-speed operations whilst maintaining superior signal integrity. The evolution of automated material handling has placed unprecedented demands on cable systems, particularly in applications where both power transmission and high-speed data communication must coexist seamlessly.

The FESTOON PUR FO 2 x 12 …/125 fiber optic festoon cable represents a pinnacle of engineering excellence, specifically designed to meet the stringent requirements of heavy-duty trolley systems and high-speed crane applications. This advanced fiber optic cable solution addresses the critical needs of industries operating in challenging environments, from busy container ports to automated manufacturing facilities, where reliability and performance cannot be compromised.

With the increasing integration of automation technology, Internet of Things (IoT) devices, and real-time monitoring systems in industrial operations, the demand for high-performance optical signal transmission cables has never been greater. The FESTOON PUR FO cable series provides the essential backbone for these advanced systems, ensuring consistent, high-quality data transmission even under the most demanding operational conditions.

Key Applications of FESTOON PUR FO Cable

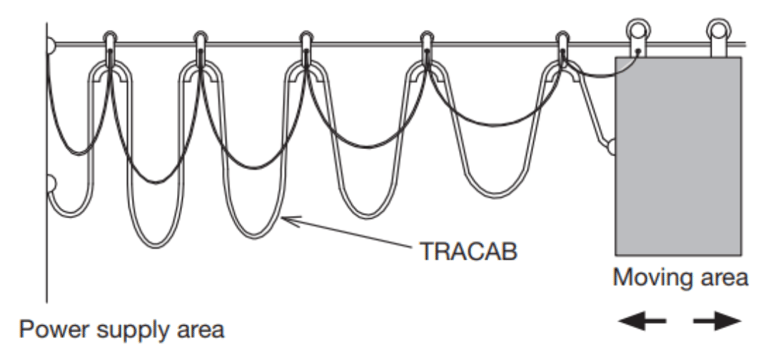

The FESTOON PUR FO 2 x 12 …/125 cable excels in mobile material handling equipment and industrial festoon systems where traditional cables would fail under continuous stress and environmental exposure. This specialised fiber optic festoon cable is engineered for applications requiring both exceptional mechanical durability and superior optical performance.

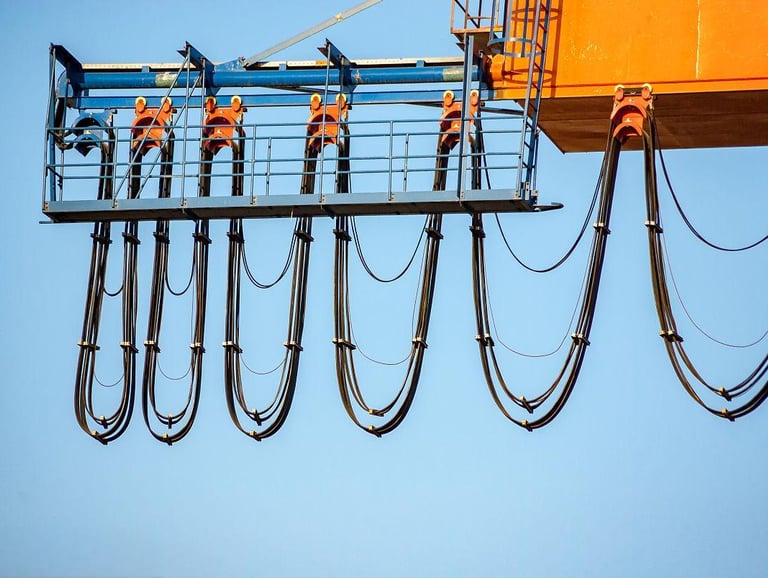

In port facilities and container terminals, these cables are commonly deployed on ship-to-shore cranes, rubber-tyred gantry cranes, and automated stacking cranes. The cable's ability to handle continuous flexing whilst maintaining signal integrity makes it ideal for these applications where trolleys travel extensive distances at high speeds, often exceeding 200 metres per minute.

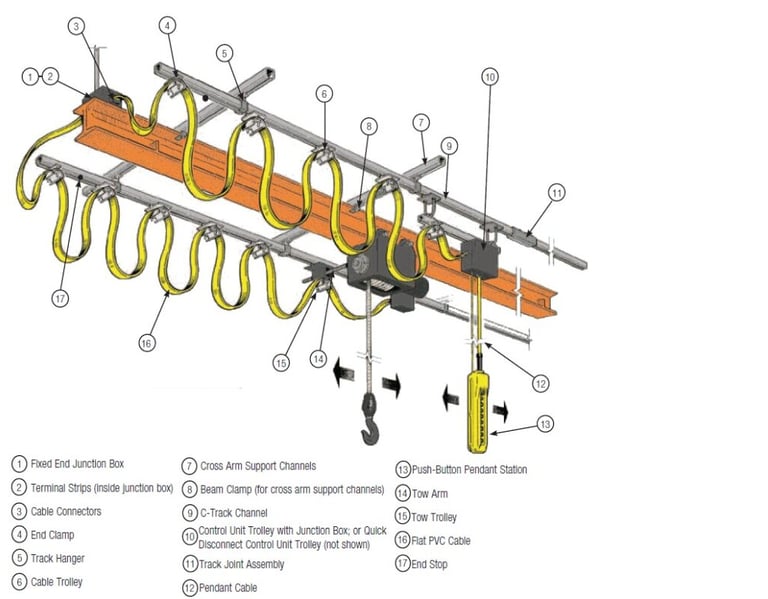

Manufacturing environments benefit significantly from the cable's compatibility with both flat and round cable configurations on heavy-duty trolleys. This versatility allows system integrators to create comprehensive cable management solutions that accommodate power transmission, control signals, and high-speed data communication within a single festoon system. The cable's design ensures seamless integration with existing infrastructure whilst providing the flexibility needed for complex automated systems.

The telecommunications industry has embraced this optical signal transmission cable for cranes in applications where temporary or mobile communication infrastructure is required. Construction sites, mining operations, and offshore installations utilise these cables to establish reliable communication networks that can be quickly deployed and relocated as operational requirements change.

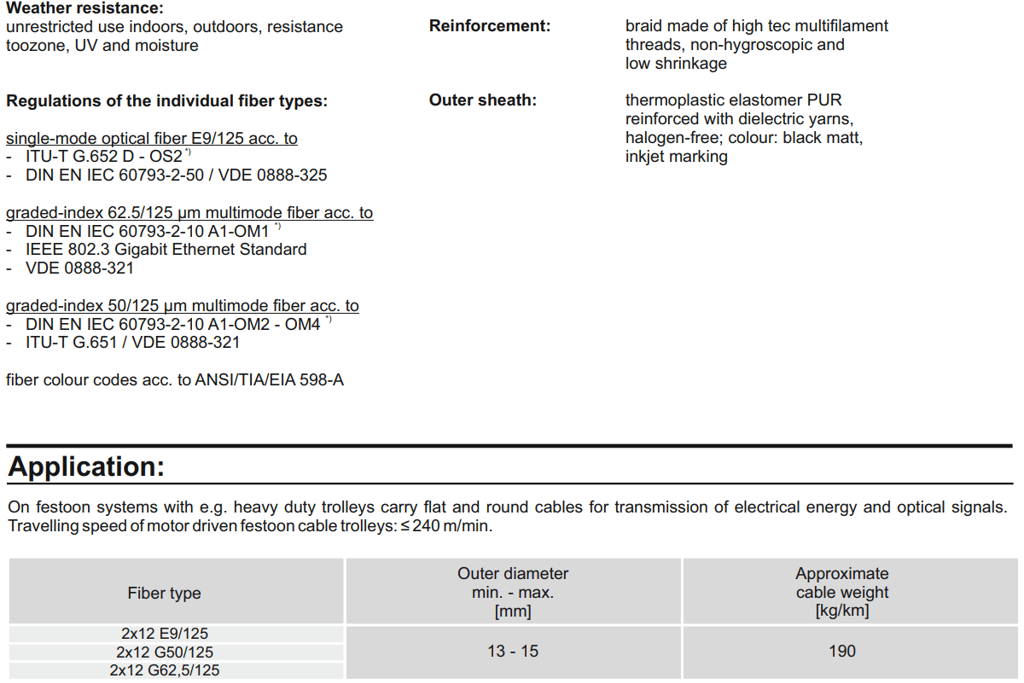

Construction and Technical Specifications

The FESTOON PUR FO 2 x 12 …/125 cable features a sophisticated multi-layer construction designed to deliver exceptional performance across diverse operating conditions. The cable accommodates three distinct fiber type configurations, each optimised for specific application requirements: E9/125, G50/125, and G62.5/125, all arranged in a 2x12 configuration providing 24 total fibers per cable.

The E9 design incorporates one yellow tube containing 12 E9/125 fibers and one red tube with an additional 12 E9/125 fibers. This configuration is particularly suited for long-distance telecommunications applications where low attenuation is paramount. The G62.5 variant features a blue tube with 12 G62.5/125 fibers and a red tube with matching specifications, optimised for high-bandwidth applications requiring superior light-gathering capabilities. The G50 design utilises a green tube and red tube configuration, each containing 12 G50/125 fibers, ideal for shorter-distance, high-speed data transmission applications.

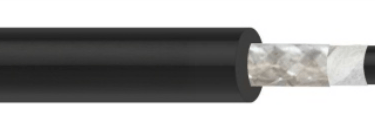

The cable's innovative jacket system employs a dual-layer approach featuring a thermoplastic elastomer (TPE) inner sheath that provides initial protection and environmental sealing, surrounded by a robust polyurethane (PUR) outer sheath. This PUR crane cable construction delivers exceptional resistance to abrasion, chemicals, and environmental stressors whilst maintaining the flexibility essential for continuous flexing applications.

Synthetic strain relief elements are strategically positioned throughout the cable structure to distribute mechanical loads evenly, preventing localised stress concentrations that could compromise fiber integrity. The reinforcement system incorporates a sophisticated braid constructed from high-tensile multifilament threads that are both non-hygroscopic and exhibit low shrinkage characteristics, ensuring dimensional stability across varying environmental conditions.

With an outer diameter ranging from 13 to 15 millimetres and an approximate cable weight of 190 kilograms per kilometre, the FESTOON PUR FO cable achieves an optimal balance between mechanical strength and handling convenience. The minimum bending radius specification of 10 times the cable diameter ensures fiber protection whilst maintaining operational flexibility essential for festoon applications.

Performance Characteristics

The FESTOON PUR FO 2 x 12 …/125 cable delivers exceptional performance characteristics that set new benchmarks for high-speed festoon cable applications. The cable's ability to maintain signal integrity whilst operating at traveling speeds up to 240 metres per minute makes it the preferred choice for motor-driven festoon trolley systems in the most demanding industrial environments.

Mechanical performance represents a critical aspect of the cable's design philosophy. The system can withstand continuous operational loads up to 1000 Newtons whilst maintaining fiber integrity and optical performance specifications. This mechanical strength capability ensures reliable operation even under dynamic loading conditions commonly encountered in crane and material handling applications where acceleration, deceleration, and directional changes create complex stress patterns.

The cable's thermal performance characteristics accommodate the wide temperature variations encountered in industrial environments. During active operation, the cable maintains full functionality across a temperature range from -30°C to +80°C, ensuring reliable performance in both extreme cold storage facilities and high-temperature manufacturing environments. For transportation and storage applications, the cable tolerates even more extreme conditions, operating reliably from -40°C to +80°C.

Dynamic flexing performance sets this high-speed festoon cable apart from conventional solutions. The cable's construction enables millions of flex cycles without degradation in optical or mechanical performance. This exceptional durability results from careful attention to fiber positioning, strain relief design, and jacket material selection, creating a synergistic system that excels under continuous movement conditions.

The optical performance characteristics meet or exceed industry standards across all supported fiber types. Attenuation values remain consistently low even after extended operational periods, ensuring reliable signal transmission for critical industrial applications. The cable's design minimises microbending losses that commonly plague cables subjected to continuous flexing, maintaining optical performance throughout the cable's operational life.

Environmental and Chemical Resistance

Environmental resilience represents a cornerstone of the FESTOON PUR FO cable's design philosophy, enabling reliable operation across diverse and challenging industrial environments. The cable's comprehensive resistance profile addresses the primary environmental threats encountered in crane and festoon applications, ensuring long-term reliability and minimal maintenance requirements.

UV and ozone resistance capabilities make this fiber optic cable suitable for outdoor applications where exposure to direct sunlight and atmospheric pollutants would rapidly degrade conventional cable systems. The specially formulated outer sheath incorporates UV stabilisers and antioxidants that maintain material integrity even under prolonged exposure to harsh environmental conditions. This UV resistant crane cable design enables deployment in uncovered crane systems, port facilities, and outdoor industrial installations without requiring additional protective measures.

The cable's oil resistance, verified through compliance with IEC 60811-404 testing protocols, ensures reliable operation in environments where hydraulic fluids, lubricants, and other petroleum-based products are present. This characteristic proves particularly valuable in heavy industrial applications where equipment maintenance activities and normal operational processes may result in incidental contact with various chemicals and fluids.

Moisture resistance and weatherproofing capabilities enable the cable to maintain performance integrity across varying humidity conditions and precipitation exposure. The halogen-free design philosophy eliminates the emission of corrosive and toxic gases in fire situations whilst maintaining the flame-resistant properties required by safety regulations. Fire resistance performance meets IEC 60332-1-2 standards, providing essential safety characteristics for installations where fire protection represents a critical concern.

The cable's chemical resistance extends beyond oil resistance to include compatibility with cleaning agents, de-icing compounds, and other chemicals commonly encountered in industrial environments. This broad chemical compatibility reduces the risk of premature cable degradation and ensures consistent performance across diverse operational scenarios.

Compliance and Standards

The FESTOON PUR FO 2 x 12 …/125 cable demonstrates comprehensive compliance with international standards and regulations, ensuring compatibility with global installation requirements and safety protocols. This extensive standards compliance reflects the manufacturer's commitment to quality and provides end users with confidence in the cable's suitability for mission-critical applications.

IEEE 802.3 Gigabit Ethernet compliance ensures seamless integration with modern networking equipment and protocols. This compatibility enables the cable to support high-speed data transmission requirements essential for automated crane systems, real-time monitoring applications, and industrial IoT implementations. The cable's performance characteristics exceed the minimum requirements for Gigabit Ethernet applications, providing headroom for future system upgrades and enhanced functionality.

Fiber colour coding follows ANSI/TIA/EIA 598-A standards, ensuring consistent identification and reducing installation errors. This standardised approach simplifies system documentation, maintenance procedures, and troubleshooting activities whilst ensuring compatibility with international installation practices. The colour coding system enables rapid visual identification of specific fiber pairs, streamlining installation and maintenance operations.

ITU-T G.651 compliance for multimode fiber specifications ensures optimal performance characteristics for the intended application ranges. The cable meets VDE 0888 series requirements, providing compatibility with European electrical and optical standards. These certifications ensure that the cable performs reliably within established parameters whilst meeting safety and performance expectations across international markets.

Construction Products Regulation (CPR) 305/2011 compliance addresses fire safety requirements for construction applications, whilst RoHS 2015/863/EU compliance ensures environmental responsibility through the elimination of hazardous substances. This CPR and RoHS compliant fiber optic cable design reflects contemporary environmental stewardship principles whilst meeting evolving regulatory requirements across international markets.

Frequently Asked Questions

Q: What is the maximum travel speed for the FESTOON PUR FO 2 x 12 …/125 cable?

A: The cable is designed to operate reliably at traveling speeds up to 240 metres per minute for motor-driven festoon cable trolley systems. This specification ensures compatibility with the fastest industrial crane and material handling systems currently in operation.

Q: Can the cable withstand outdoor installation in harsh environments?

A: Yes, the cable features comprehensive environmental resistance including UV protection, ozone resistance, weatherproofing, and oil resistance. The PUR outer sheath and halogen-free design ensure reliable outdoor operation across diverse climatic conditions.

Q: Is it possible to mix different fiber types within a single cable?

A: Absolutely. The manufacturer offers custom configurations combining different fiber types, such as 12 G50 fibers with 12 G62.5 fibers, enabling system designers to accommodate multiple transmission requirements within a single cable installation.

Q: What is the minimum bending radius for installation?

A: The minimum bending radius is 10 times the cable diameter (130-150mm for the standard outer diameter range). This specification ensures fiber protection whilst maintaining the flexibility essential for festoon applications.

Q: Does the cable meet fire safety requirements?

A: Yes, the cable complies with IEC 60332-1-2 fire resistance standards and features a halogen-free design that eliminates toxic gas emissions. Additionally, CPR 305/2011 compliance ensures compatibility with construction fire safety requirements.

Summary: Why Choose FESTOON PUR FO 2 x 12…/125

The FESTOON PUR FO 2 x 12 …/125 represents the definitive solution for industrial crane festoon systems requiring simultaneous power transmission and high-performance optical signal communication. This durable fiber optic cable for industrial crane festoon systems combines mechanical durability, exceptional optical performance, and comprehensive environmental resilience in a single, optimised package.

The cable's ability to operate reliably at speeds up to 240 metres per minute whilst withstanding continuous flexing cycles positions it as the preferred choice for the most demanding material handling applications. From busy container ports where ship-to-shore cranes operate around the clock to automated manufacturing facilities requiring precise control and monitoring, the FESTOON PUR FO cable delivers the reliability and performance that modern industrial operations demand.

Long-term reliability represents perhaps the most compelling reason to select this cable system. The combination of advanced materials, sophisticated construction techniques, and comprehensive testing protocols ensures consistent performance throughout extended operational periods. This reliability translates directly into reduced maintenance costs, minimised system downtime, and enhanced operational efficiency.

The cable's compliance with international standards and regulations provides assurance of compatibility with global installation requirements whilst the extensive customisation options ensure optimal configuration for specific applications. Whether deployed in the harsh maritime environment of a shipping terminal, the controlled atmosphere of an automated warehouse, or the demanding conditions of heavy manufacturing, the FESTOON PUR FO 2 x 12 …/125 cable delivers the performance, reliability, and longevity that characterise world-class industrial infrastructure.
