FEICHUN-LUMEN (N)TSCGH3S 6/10kV Self-Illuminating Trailing Cable
High-Visibility Medium Voltage Cable for Mining Shovels and Draglines
$10.00

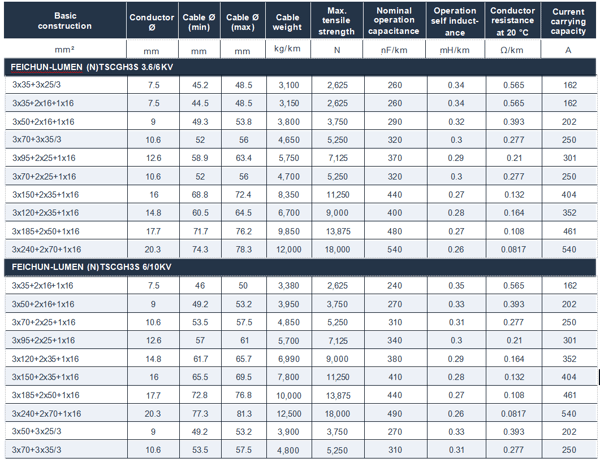

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 3.6/6 (7.2) kV and 6/10 (12) kV |
Nominal Voltage U | 6,000 V (3.6/6 kV), 10,000 V (6/10 kV) |
Test Voltage | 11 kV (3.6/6 kV), 17 kV (6/10 kV) |
Max Conductor Temperature | 90 °C |
Max Short Circuit Temp | 250 °C |
Ambient Temperature (Fixed) | –50 °C to +80 °C |
Ambient Temperature (Flexible) | –50 °C to +60 °C |
Conductor | Finely stranded, tinned copper, class 5 |
Insulation | Semi-conductive EPR with special compound 3GI3 |

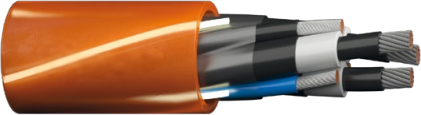

Core Configuration | Cores laid around semiconductive central filler with aramid yarns; electroluminescent (EL) strings in the outer interstices |
Insulation Screen | Semi-conductive NBR easy strip |
Sheath | Transparent flame retardant polyurethane (PUR), special compound |
Mechanical Properties | Permanent tensile strength 25 N/mm² (static) |
Bending Radius | 6 × diameter (fixed), 10 × diameter (flexible), 20 × diameter minimum with S-type bends |
Chemical & Environmental Resistance | Flame retardant, halogen free, oil resistant, ozone resistant, UV resistant |
FEICHUN-LUMEN is a self-illuminating medium voltage trailing cable for powering large mobile mining equipment such as shovels and draglines. Designed for environments where safety demands cable visibility in the dark, it integrates an active electroluminescent element embedded beneath a transparent polyurethane (PUR) outer sheath. This unique feature ensures the cable provides illumination even when not energized. The cable’s outer sheath is highly robust and resistant to abrasion and tearing, making it ideal for fully flexible use down to –50 °C.
4. Standards and Certifications
DIN VDE 0250-813
DIN EN 60228 / IEC 60228 / VDE 0295
DIN EN 60332-1-2 / IEC 60332-1-2
IEC 60754-2
DIN VDE 0298-4
DIN EN 60811-404 / IEC 60811-404
Product Features
Self-Illuminating Electroluminescent Core: Provides continuous cable illumination to enhance safety in dark mining environments even when unpowered.
Transparent Robust PUR Sheath: Combines flame retardance, abrasion and tear resistance with full flexibility to –50 °C.
High Mechanical Strength: Aramid yarn reinforced core construction ensures durability during dynamic trailing operations.
Wide Operating Temperature and Chemical Resistance: Suitable for harsh underground conditions with protection against oils, ozone, and UV exposure.
Safety and Visibility Focused: Designed explicitly to improve safety by making cables easily visible to personnel and equipment operators.
Application Areas
Power supply cable for large mobile underground mining equipment requiring enhanced visibility and safety, such as shovels and draglines operating in dark or low-light conditions.
Installation and Maintenance
Designed for flexible and fixed installations observing proper bending radii. Regular maintenance and inspection are recommended to maintain the electroluminescent functionality and sheath integrity.
Customization Services
Available in multiple conductor sizes, core configurations, and sheath colors with tailored electroluminescent properties to meet specific operational safety requirements.
Contact Us
For quotations, detailed datasheets, and customized self-illuminating medium voltage cable solutions, please contact our sales or technical teams.
