FEICHUN (M)F-(N)TSCGEWOEU 6/35 kV Medium Voltage Flexible Cable – Conveyor & Pump Applications
Heavy-Duty Cable for Continuous Movement on Material Handling Equipment
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 3.6/6 (7.2), 6/10, 8.7/15 (17.5), 12/20 (24), 14/25 (29), 18/30 (36), 20/35 (42) kV |
Test Voltage | 11 kV to 50 kV based on rated voltage |
Nominal Voltage U | 6,000 V to 35,000 V |
Max Conductor Temperature | 90 °C |
Max Short Circuit Temperature | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |

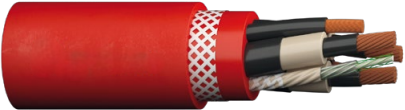

Conductor | Finely stranded bare copper, class 5 |
Insulation | Semi-conductive EPR, FEICHUN HS special compound 3GI3 |
Core Configuration | Three main conductors laid-up with protective earth conductor split into 3 in outer interstices |
Insulation Screen | Semi-conductive NBR easy strip |
Inner Sheath | Special EPR rubber compound GM1b |
Outer Sheath | Chlorinated polyethylene (CM/CPE), special compound 5GM3 |
Mechanical Parameters | Torsional stress: ±100°/m; Permanent tensile strength: 15 N/mm² |
Bending Radius | 6 × diameter (fixed installation); 10 × diameter (flexible operation) |
Chemical & Environmental Resistance | Flame retardant; oil resistant; ozone resistant; UV resistant; seawater resistant |
FEICHUN (M)F-(N)TSCGEWOEU is a medium voltage flexible cable designed for installation alongside conveyor belts, including shiftable units, on material handling equipment such as cable booms or as connections between upper and lower cars. It is also suitable for connections to submersible pump units. The cable is engineered to withstand continuous movement and dynamic mechanical stresses in mining environments while maintaining high electrical performance and durability.
Standards and Certifications
DIN VDE 0250-813
DIN VDE 0298-4
DIN EN 60811-404 / IEC 60811-404
DIN EN 50525-2-21
GOST-R/-K/-B Fire Certificate of Russian Federation
DIN EN 60332-1-2 / IEC 60332-1-2
Product Features
Flexible for Continuous Movement: Designed for dynamic use alongside conveyors and mobile material handling systems.
Robust Construction: Special EPR insulation and chlorinated polyethylene sheath provide mechanical protection and chemical resistance.
Earth Conductor Split Configuration: Protective earth conductor split into three for enhanced safety and grounding.
Wide Thermal and Environmental Tolerance: Operating in harsh mining conditions involving temperature extremes and chemical exposure.
Certified Compliance: Meets international and regional standards for electrical safety, fire performance, and chemical resistance.
Application Areas

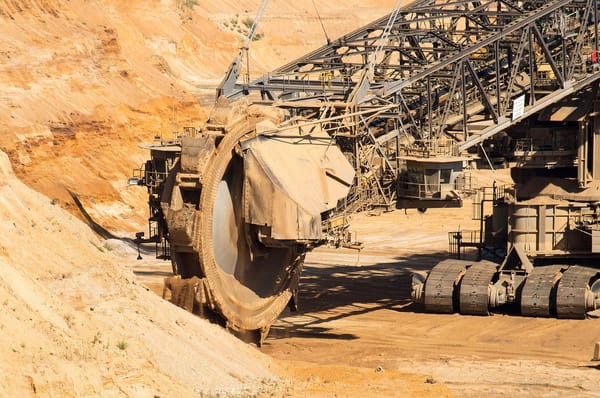

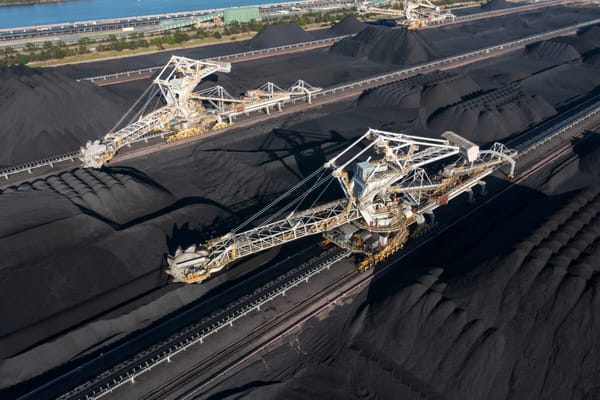

Power cable for flexible and mobile applications in mining, such as conveyor belts, cable booms, material handling equipment, and submerged pump connections.
Installation and Maintenance
Installation should respect VDE 0298-3 bending radius requirements for fixed and flexible configurations. Regular monitoring and maintenance are advised to ensure cable integrity in dynamic environments.
Customization Services
Available with various conductor sizes, sheath materials, lengths, and mechanical reinforcements tailored to customer-specific demands.
Contact Us
For quotations, detailed datasheets, and customized medium voltage flexible cable solutions, please contact our sales or technical teams.
