FEICHUN (M)F-(N)TSWOEU 5 kV Medium Voltage Semi-Flexible Cable – Conveyor & Pump Applications
Flame Retardant, Oil & UV Resistant MV Cable
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 1.8/3 (3.6) kV |
Test Voltage | 11 kV |
Maximum Conductor Temperature | 90 °C |
Maximum Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |
Conductor | Finely stranded bare copper, class 5 |
Insulation | Semi-conductive EPR rubber, special compound 3GI3 |

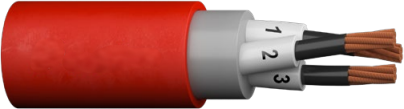

Core Design | Three main conductors laid up |
Inner Sheath | Rubber special EPR compound GM1b |
Outer Sheath | Chlorinated polyethylene (CM/CPE), special compound 5GM3 |
Mechanical Properties | Torsional stress: ±100°/m; Permanent tensile strength: 15 N/mm² |
Bending Radius | 6 × cable diameter (fixed installation); 10 × diameter (flexible operation) |
Chemical & Environmental Resistance | Flame retardant; oil resistant; ozone resistant; UV resistant; seawater resistant up to 10 m depth |
CABLE PROPERTIES
| Basic construction | Conductor Ø | Cable Ø (min) | Cable Ø (max) | Cable weight | Max. tensile strength | Nominal operation capacitance | Operation self induct- ance | Conductor resistance at 20 °C | Current carrying capacity |
| mm² | mm | mm | mm | kg/km | N | nF/km | mH/km | Ω/km | A |
FEICHUN (M) F-(N)TSWOEU 1.8/3KV | ||||||||||
3x70 |
| 10.8 | 42.1 | 45.1 | 3,770 | 3,150 | 510 | 0.28 | 0.272 | 250 |

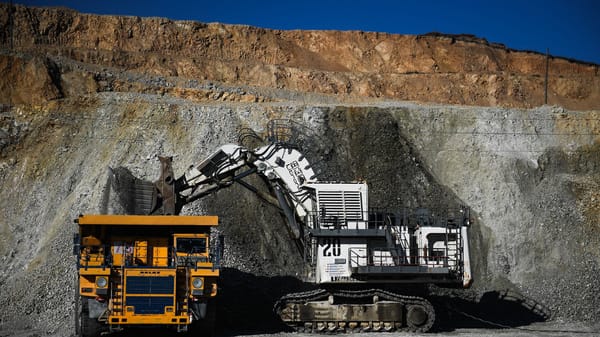

FEICHUN (M)F-(N)TSWOEU is a medium voltage semi-flexible cable designed for use alongside conveyor belts—including shiftable units—and on material handling equipment. It is suitable for continuous movement applications such as cable booms or connections between upper and lower cars, as well as for submersible pump unit connections. This cable provides high mechanical durability and electrical performance within a wide range of demanding mining environments.
Standards and Certifications
DIN VDE 0250-813
DIN VDE 0298-4
DIN EN 60811-404 / IEC 60811-404
DIN EN 50525-2-21
DIN EN 60332-1-2 / IEC 60332-1-2
Product Features
Semi-Flexible Construction: Designed for applications requiring limited bending and movement alongside conveyors and material handling units.
Robust Electrical and Mechanical Performance: High-quality copper conductors insulated with special EPR compounds ensure durability and electrical safety.
Environmental Resistance: Suited for harsh mining environments with flame retardance, resistance to oils, ozone, UV, and seawater exposure.
Suitable for Submersible Pumps: Cable is engineered to withstand conditions in submerged pump installations at depths up to 10 meters.
Certified Safety and Quality: Compliance with stringent international standards guarantees reliable operation.
Application Areas
Ideal for power supply and connection cables in mining material handling systems, cable booms with continuous movements, and submerged pump units.
Installation and Maintenance
Installed following VDE 0298-3 bending radius guidelines with flexible operation capability. Routine inspections recommended to maintain cable integrity and performance.
Customization Services
Available in various conductor sizes, sheath colors, lengths, and special compounds tailored to specific mining and industrial needs.
Contact Us
For quotations, technical datasheets, and customized medium voltage semi-flexible cable solutions, please contact our sales or technical teams.
