Feichun NSHTÖU Crane PUR Cable – Oil, UV & Mechanical Resistant, Halogen-Free, and Flame-Retardant: Is It the Ideal Reelable Cable for Hoists, Conveyors, and Energy Chains?

Industrial sectors including material handling, manufacturing, mining, construction, and logistics depend heavily on robust cable systems that can withstand continuous flexing, environmental challenges, and mechanical stresses. The wrong cable choice can result in costly downtime, safety hazards, and frequent maintenance interventions. Therefore, understanding the technical capabilities and application suitability of specialized cables like the NSHTÖU becomes paramount for industrial decision-makers.

The NSHTÖU Crane PUR Cable addresses critical challenges faced by hoists, transport systems, conveyor mechanisms, and energy supply chains. Its unique design combines advanced materials science with practical engineering solutions, making it an ideal choice for applications where traditional cables might fail prematurely. This comprehensive analysis explores why this VDE-certified cable stands out in the competitive landscape of industrial power and control cables.

Introduction

In today's demanding industrial environments, selecting the appropriate reelable cable for hoists, conveyors, and energy supply chains is crucial for maintaining operational efficiency and safety. The NSHTÖU Crane PUR Cable represents a sophisticated engineering solution designed specifically for applications requiring low to medium mechanical stress while maintaining exceptional durability and performance reliability.

Product Overview

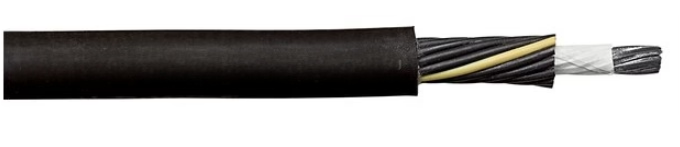

The NSHTÖU Crane PUR Cable is a VDE-certified reelable cable engineered to meet the stringent demands of industrial applications requiring reliable power transmission under challenging conditions. This cable represents a significant advancement in cable technology, incorporating multiple protective features that ensure consistent performance across diverse operational environments.

The cable's polyurethane (PUR) construction provides exceptional resistance to oil, UV radiation, and mechanical stress, making it particularly suitable for outdoor installations and harsh industrial environments. The halogen-free design ensures safer operation by eliminating toxic gas emission risks during fire incidents, while the flame-retardant properties according to IEC 60332-1-2 standards provide additional safety assurance.

One of the most notable characteristics of the NSHTÖU cable is its ability to operate effectively in outdoor environments and withstand short-term industrial water immersion for periods up to two weeks without interruption. This capability significantly expands its application range, allowing for use in washing stations, wet processing areas, and environments where temporary water exposure is unavoidable.

The cable maintains its flexibility and performance characteristics across a wide temperature range, ensuring reliable operation from -25°C to +80°C during flexible use. This temperature tolerance makes it suitable for both cold storage facilities and high-temperature industrial processes, providing versatility that reduces inventory complexity for facility managers.

Unique Design Features

Integrated Supporting Braid

The most distinctive feature of the NSHTÖU Crane PUR Cable is its integrated supporting braid embedded within the outer sheath. This innovative design element serves multiple critical functions that significantly enhance cable performance and longevity. The supporting braid prevents undesirable cable twisting during reeling and unreeling operations, eliminating the formation of corkscrew effects that can damage both the cable and connected equipment.

Traditional cables often suffer from torsional stress during continuous flexing operations, leading to internal wire damage, insulation failure, and reduced service life. The integrated braid distributes mechanical stress evenly across the cable structure, maintaining proper conductor alignment and preventing the spiral deformation that commonly occurs in heavily used reelable applications.

This design innovation is particularly beneficial in crane operations, where cables must maintain their structural integrity while supporting both electrical transmission and mechanical loads. The braid acts as a mechanical backbone, allowing the cable to function effectively as a hawser, drum cable, or towing cable while simultaneously providing reliable electrical connectivity.

Flexible Reeling and Unreeling Capability

The NSHTÖU cable's design enables continuous reeling and unreeling operations without requiring fixed connections during operation. This capability is essential for dynamic applications where cables must move freely while maintaining electrical connectivity. The cable's construction allows for smooth operation across cable reels, drums, and guide systems without binding or jamming.

The flexible design accommodates the complex motion patterns typical of crane operations, conveyor systems, and mobile equipment. Unlike rigid cables that require careful handling and specific routing, the NSHTÖU maintains its performance characteristics even under continuous motion stress, reducing maintenance requirements and extending operational life.

Wide Core Configuration Range

The NSHTÖU cable is available in an extensive range of core configurations, from compact 4G4 mm² arrangements to high-capacity 30G2.5 mm² multi-core variants. This diversity allows engineers to select the precise configuration needed for specific applications, optimizing both performance and cost-effectiveness.

The core sizes range from 2.5 mm² to 95 mm², accommodating everything from control circuits to high-power motor connections. The availability of both 4-core and 5-core configurations, along with specialized multi-core options up to 30 conductors, provides flexibility for complex control systems and power distribution applications.

Technical Specifications

The NSHTÖU Crane PUR Cable operates at a voltage rating of 600/1000V with a test voltage of 4000V, providing substantial electrical safety margins for industrial applications. This voltage rating makes it suitable for most industrial power distribution and motor control applications while maintaining compatibility with standard electrical systems.

The conductor material consists of tinned copper fine-stranded wire conforming to VDE 0295 Class 5 and IEC 60228 Class 5 standards. This construction provides optimal flexibility while maintaining low electrical resistance and excellent current-carrying capacity. The tinning process protects the copper from corrosion and oxidation, ensuring long-term electrical performance even in harsh environments.

The core insulation utilizes rubber compound type 3GI3, specifically formulated to provide excellent electrical insulation properties while maintaining flexibility across the cable's operating temperature range. This insulation system works in conjunction with the outer sheath material to provide comprehensive protection against environmental factors.

The outer sheath employs rubber compound type 5GM3, engineered to provide superior resistance to oils, chemicals, UV radiation, and mechanical abrasion. This compound maintains its protective properties across the full temperature range while providing the flexibility necessary for continuous flexing operations.

Bending radius guidelines specify minimum bend radii that preserve cable integrity during installation and operation. For fixed installations, the minimum bending radius is typically 7.5 times the cable diameter, while flexible applications require consideration of 15 times the diameter to ensure adequate fatigue resistance.

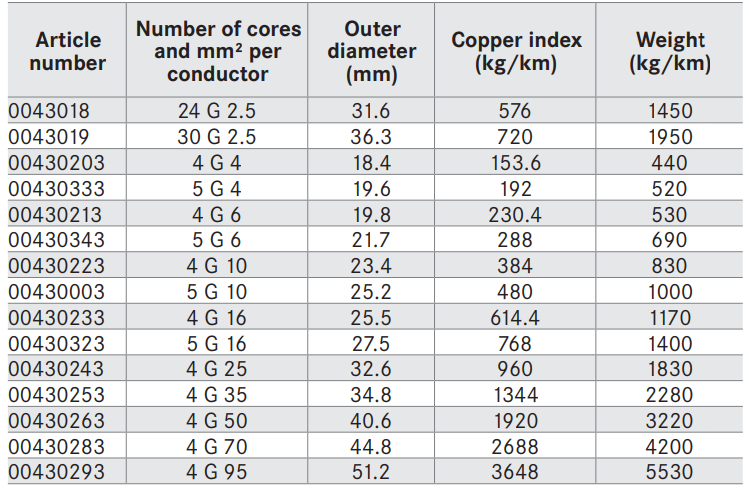

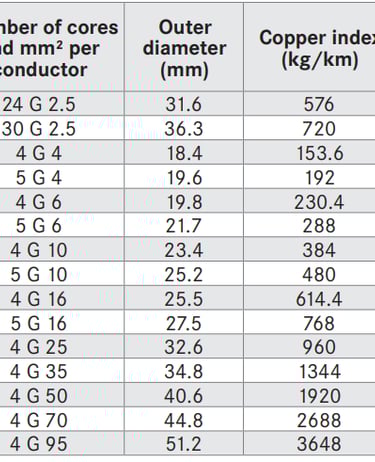

The cable's construction includes precise dimensional tolerances and weight specifications that facilitate proper system design and support structure sizing. Outer diameters range from 18.4mm for the smallest 4G4 configuration to 51.2mm for the largest 4G95 variant, with corresponding weights from 440 kg/km to 5530 kg/km.

Application Areas

Hoists, Cranes, and Lifting Equipment

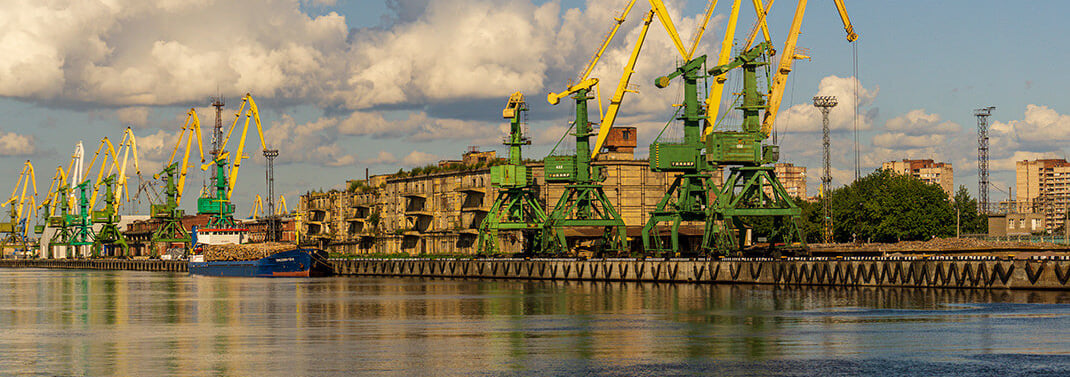

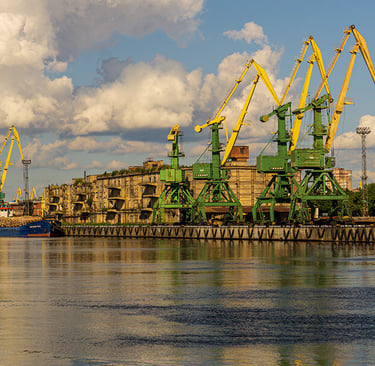

The NSHTÖU cable excels in crane and hoist applications where reliability is paramount for both operational efficiency and safety. These applications demand cables that can withstand continuous flexing while supporting both electrical loads and mechanical stresses. The integrated supporting braid makes this cable particularly suitable for overhead crane systems, mobile cranes, and industrial hoists where cable failure could result in serious safety hazards.

In crane applications, the cable often serves dual purposes as both an electrical conductor and a mechanical support element. The NSHTÖU's design allows it to function effectively as a hawser cable while maintaining electrical integrity, simplifying system design and reducing component count. This dual functionality is particularly valuable in marine applications, construction sites, and industrial facilities where space and weight constraints are critical considerations.

Conveyor and Transport Systems

Modern conveyor and transport systems require cables that can accommodate continuous motion while providing reliable power and control signal transmission. The NSHTÖU cable's flexible design and twist-resistant construction make it ideal for these applications, where traditional cables often fail due to fatigue or mechanical damage.

The cable's ability to operate without fixed connections during movement is particularly valuable in automated storage and retrieval systems, airport baggage handling, and manufacturing assembly lines. These applications often require cables to move continuously across varying paths while maintaining electrical connectivity to motors, sensors, and control systems.

Energy Supply Chains

Energy supply chain applications, including cable carriers and drag chains, place unique demands on cable construction. The NSHTÖU cable's design accommodates the repetitive flexing and extension motions typical of these systems while maintaining electrical and mechanical integrity over millions of cycles.

The cable's construction resists the torsional stresses common in energy chain applications, where cables must bend in multiple planes while maintaining proper conductor spacing. This capability is essential for CNC machine tools, robotic systems, and automated manufacturing equipment where precision and reliability are critical.

Hawser, Drum, and Towing Operations

The NSHTÖU cable's ability to function as both an electrical conductor and mechanical support element makes it valuable for specialized applications requiring combined power transmission and load-bearing capability. In marine applications, the cable can serve as both a power supply and mooring line, simplifying system design while providing reliable performance.

Industrial towing operations benefit from the cable's robust construction and environmental resistance. The oil and UV resistance ensure reliable operation in outdoor environments, while the mechanical strength provides confidence in demanding towing applications.

Compliance and Standards

The NSHTÖU Crane PUR Cable meets comprehensive international standards, ensuring compatibility with global industrial systems and regulatory requirements. The VDE 0250-814 certification validates the cable's construction quality and performance characteristics according to German engineering standards, which are recognized worldwide for their stringency and reliability.

Oil resistance certification according to EN 60811-404 ensures reliable performance in industrial environments where hydraulic fluids, lubricants, and chemical exposures are common. This certification provides quantifiable assurance of the cable's ability to maintain its properties when exposed to industrial oils and fluids.

The cable's suitability for hazardous areas according to DIN VDE 0165 expands its application range to include potentially explosive environments. This certification is crucial for applications in chemical processing, oil and gas operations, and other industries where ignition sources must be carefully controlled.

UV resistance qualification enables outdoor installations without degradation concerns, eliminating the need for additional protective conduits or coverings in many applications. This capability reduces installation costs while ensuring long-term performance reliability.

Benefits for Industrial Users

The NSHTÖU Crane PUR Cable delivers substantial operational and economic benefits through its advanced design and construction. The extended service life achieved through superior environmental resistance and mechanical durability reduces replacement frequency and associated downtime costs. Industrial users report significant cost savings through reduced maintenance requirements and improved system reliability.

The cable's ability to resist oil, UV, and mechanical damage eliminates many common failure modes, reducing unexpected downtime and emergency repair costs. This reliability is particularly valuable in critical applications where cable failure could shut down entire production lines or create safety hazards.

The wide temperature operating range and environmental resistance simplify inventory management by reducing the number of different cable types required for various applications. This standardization effect reduces procurement complexity while ensuring adequate performance margins across diverse operating conditions.

The halogen-free construction and flame-retardant properties contribute to safer working environments by reducing toxic gas risks during fire incidents. This safety enhancement is particularly important in enclosed spaces where personnel evacuation might be challenging.

Frequently Asked Questions

Q: How does the integrated supporting braid prevent cable twist and corkscrew effects?

A: The integrated supporting braid is embedded within the cable's outer sheath and acts as a mechanical backbone that distributes torsional forces evenly across the cable structure. When the cable is subjected to twisting forces during reeling operations, the braid maintains the proper geometric relationship between conductors, preventing the spiral deformation that creates corkscrew effects. This design ensures that the cable maintains its original form even after millions of flexing cycles.

Q: Can the NSHTÖU cable be used in applications requiring both electrical power and mechanical load-bearing capabilities?

A: Yes, the NSHTÖU cable's design specifically accommodates dual-purpose applications where it serves as both an electrical conductor and mechanical support element. The integrated supporting braid provides mechanical strength while maintaining electrical integrity, making it suitable for use as hawser cables, towing cables, and in situations where the cable must support its own weight plus additional loads.

Q: What maintenance considerations are important for maximizing cable service life?

A: Regular inspection of the cable for signs of mechanical damage, proper adherence to minimum bending radius requirements, and ensuring that operating conditions remain within specified temperature and environmental limits are key maintenance considerations. The cable's robust construction minimizes maintenance requirements, but periodic visual inspection and electrical testing can help identify potential issues before they cause failures.

Q: How does the oil resistance rating affect the cable's suitability for different industrial environments?

A: The EN 60811-404 oil resistance certification ensures that the cable maintains its electrical and mechanical properties when exposed to industrial oils, hydraulic fluids, and similar substances. This resistance is crucial in manufacturing environments, mobile equipment, and hydraulic systems where oil exposure is inevitable. The certification provides quantifiable assurance that brief or occasional oil contact will not degrade cable performance.

Conclusion

The NSHTÖU Crane PUR Cable represents a sophisticated engineering solution that addresses the complex demands of modern industrial applications requiring reliable reelable cables. Its unique combination of integrated supporting braid technology, comprehensive environmental resistance, and flexible design makes it an optimal choice for hoists, conveyors, energy supply chains, and specialized mechanical applications.

The cable's VDE certification, comprehensive standards compliance, and proven performance characteristics provide industrial users with confidence in its reliability and safety. The wide range of core configurations and robust construction ensure compatibility with diverse application requirements while minimizing inventory complexity.

For industrial facilities seeking to improve system reliability, reduce maintenance costs, and ensure safe operation in challenging environments, the NSHTÖU Crane PUR Cable offers compelling advantages. Its advanced design features, comprehensive environmental resistance, and mechanical durability make it an ideal investment for critical applications where cable failure is not an option.

The combination of technical excellence, safety features, and operational benefits positions the NSHTÖU cable as a leading solution for industrial power and control applications. Its versatility and reliability make it particularly valuable for facilities operating multiple types of equipment where standardization on a single, high-performance cable type can simplify procurement, installation, and maintenance operations while ensuring optimal performance across all applications.
