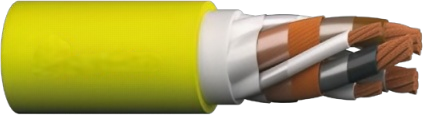

FEICHUN (N)SSHOEU 3E I 0.6/1 kV Flexible Mining Power Cable
Rubber-Sheathed Flame & Oil Resistant Cable for Mining and Tunnel Applications
$10.00

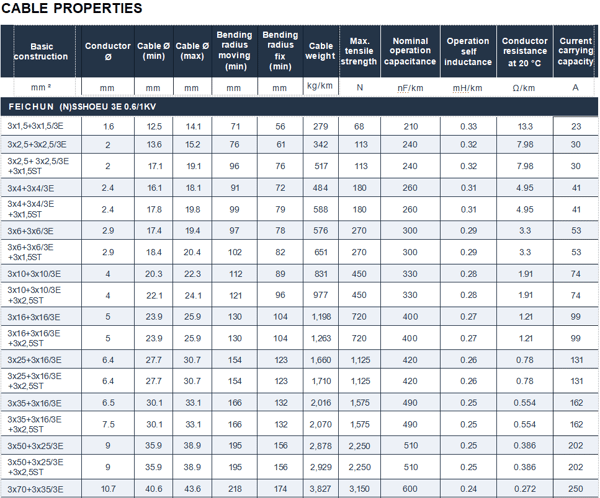

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV; also permitted for U0/U = 640/1140 V |
Peak Voltage | 2400 V |
Test Voltage | 3 kV |
AC Test Voltage (Control Cores) | 2 kV |
Max Conductor Temperature | 90 °C |
Max Conductor Temp at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |
Conductor | Finely stranded bare copper, class 5; PE: individual concentric or overall concentric spinning of bare copper wires |
Insulation | EPR rubber FEICHUN special compound 3GI3 |
Core Configuration | Three main conductors laid up with individual concentric protective earth over insulation; control cores may be included in interstices |
Protective Shielding | Individual concentric or overall concentric spinning of bare copper wires |
Outer Sheath | Rubber with special EPR waterproof compound and chlorinated polyethylene (CM/CPE), special compound 5GM5 |
Mechanical Properties | Permanent tensile strength: 15 N/mm² |
Bending Radius | 4 × cable diameter fixed installation; 5 × cable diameter flexible operation |
Chemical & Environmental Resistance | Flame retardant, oil resistant, ozone resistant, UV resistant, seawater resistant |
FEICHUN (N)SSHOEU 3E cable is suitable for both fixed installation and flexible operation as a power supply cable for motors, distribution boards, pumps, drilling rigs, and similar equipment. It is designed for underground mining, tunnel construction, open-cast mining, quarry use, and comparable heavy-duty applications. The cable is compliant with DIN VDE 0118 standards, ensuring safety and reliability.
Standards and Certifications
Based on DIN VDE 0250-812
DIN EN 60228 / IEC 60228 / VDE 0295
DIN VDE 0293-308
DIN EN 50363 / DIN VDE 0207-20 / DIN VDE 0207-21
DIN EN 60332-1-2 / IEC 60332-1-2
DIN EN 50525-2-21
DIN VDE 0298-4
Product Features
Flexible and Durable: Suitable for both fixed and flexible power supply applications in harsh mining and industrial environments.
Copper Core Shielding: Individual and overall concentric copper wire spinning enhance electrical shielding and safety.
Robust Electrical Insulation: FEICHUN special EPR rubber compounds provide excellent dielectric and mechanical properties.
Chemical Resistance: Resistant to oil, ozone, UV, and seawater for enhanced longevity in challenging conditions.
Certified for Safety: Compliant with multiple international standards for flame retardancy and electrical performance.
Application Areas

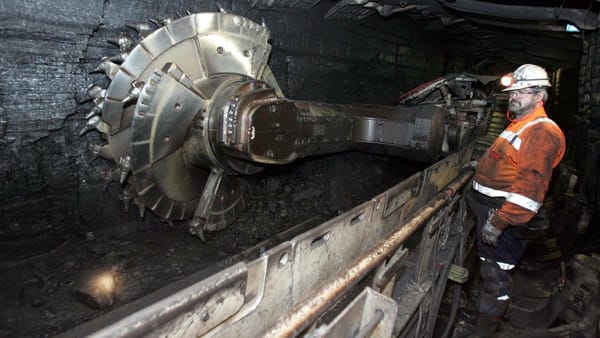

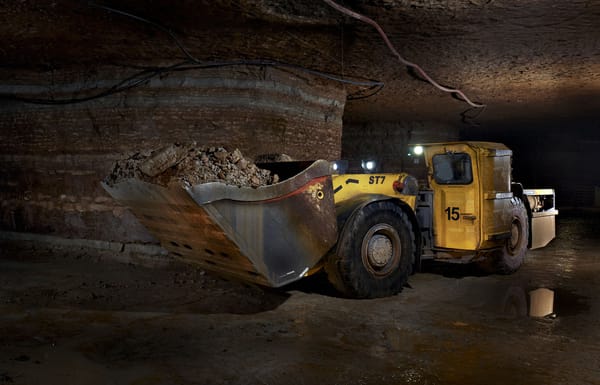

Power and control cable for motors, pumps, drilling rigs, distribution boards, and other equipment in underground mining, tunnel construction, open-cast mines, quarries, and similar settings.
Installation and Maintenance
Installation in accordance with DIN VDE 0298-3 bending radius guidelines. Routine inspection recommended for maintaining cable integrity under both fixed and flexible operational conditions.
Customization Services
Available with various conductor sizes, shielding configurations, sheath materials, and lengths to satisfy specific application requirements.
Contact Us
For quotations, detailed technical datasheets, and customized rubber-sheathed flexible copper core shielded cable solutions, please contact our sales or technical teams.
