FEICHUN (S) NSHTÖU 0.6/1 kV LHD Mining Cable
Reeling Cable for Scoops in Underground Mining Operations
$10.00

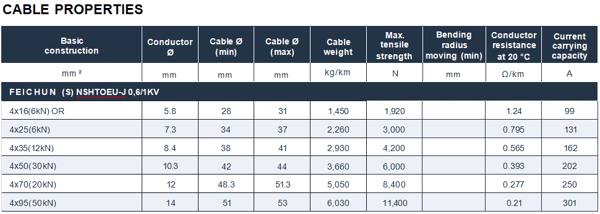

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV; also permitted for U0/U = 640/1140 V |
Test Voltage | 2.5 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |
Conductor | Very finely stranded tinned copper conductor, class FS |

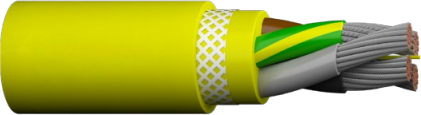

Core Configuration | Cores laid up around central support element made of aramid yarns with rubber covering; power cores colored Black, Grey, Brown, or natural with black numbering; Protective earth (PE) green-yellow |
Insulation | EPR rubber special compound 3GI3 |
Inner Sheath | Rubber polychloroprene (PCP) special compound 5GM5 |
Reinforcement | Polyester braiding |
Outer Sheath | Rubber polychloroprene (PCP) special compound 5GM5 |
Mechanical Properties | Torsional stress ±25°/m; Permanent tensile strength 30 N/mm² |
Travel Speed | Maximum 160 m/min |
Bending Radius | 4 × cable diameter (fixed installation); 5 × cable diameter (flexible operation); 20 × diameter minimum for S-type bends |
FEICHUN (S) NSHTOEU is designed for frequently changing dynamic loads, particularly as a reeling cable for scoops (LHDs) in underground mining. The cable is suitable for mono-spiral and cylindrical reel applications, offering superior flexibility, mechanical strength, and durability under the demanding conditions of underground mine operations.
Standards and Certifications
DIN VDE 0250-814
MSHA P-189-3
EAC Certification
DIN EN 60332-1-2 / EN 60332-3-24
DIN VDE 0298-4
DIN EN 60811-404 / IEC 60811-404
Product Features
Dynamic Reeling Suitability: Designed to withstand frequent bending, roller bending, and torsional stresses typical of LHD scoop operations.
High Mechanical Strength: Aramid yarn central support element and polyester braiding provide robust tensile strength.
Abrasion and Chemical Resistance: Polychloroprene sheath compounds deliver excellent oil, ozone, UV, and flame retardant properties.
Wide Temperature Operation: Suitable for harsh underground mine environments with ambient temperatures from –40 °C to +80 °C.
Certified Compliance: Multi-standard certifications for safety, fire performance, and mining-specific requirements.
Application Areas

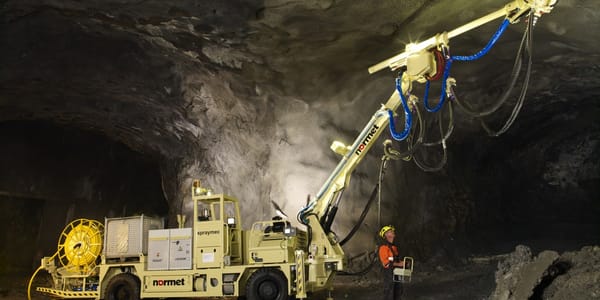

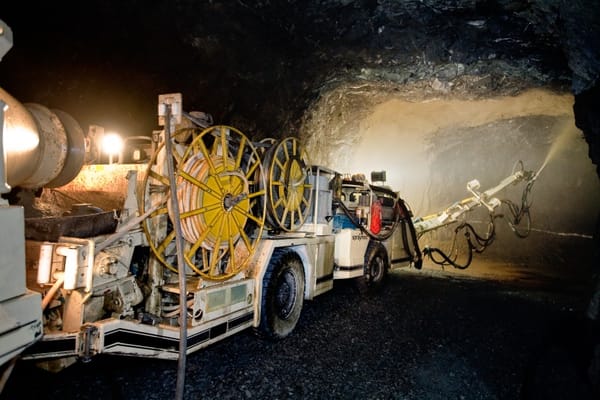

Intended for power supply cables on load-haul-dump (LHD) scoops and similar underground mining equipment requiring flexible, durable reeling cables.
Installation and Maintenance
Installation recommendations follow VDE 0298-3 bending radius norms with regular inspection advised to maintain cable integrity under demanding dynamic use.
Customization Services
Available with multiple conductor sizes, core configurations, sheath types, and lengths optimized for mining operations.
Contact Us
For quotations, detailed technical sheets, and customized LHD cable solutions, please contact our sales or technical teams.
