FEICHUN (S) (N)SSHCGEOEU 0.6/1 kV Underground Reeling Cable
Heavy-Duty Reeling Cable for Scoops (LHDs) in Underground Mining
$10.00

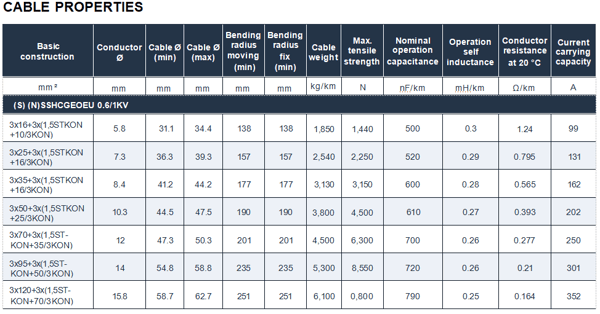

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 0.6/1 (1.2) kV; also permitted for U0/U = 640/1140 V |
Test Voltage | 3 kV |
AC Test Voltage (Control Cores) | 2 kV |
Maximum Conductor Temperature | 90 °C |
Max Conductor Temperature at Short Circuit | 250 °C |
Ambient Temperature (Fixed) | –40 °C to +80 °C |
Ambient Temperature (Flexible) | –25 °C to +60 °C |
Conductor | Very finely stranded tinned copper, class FS |

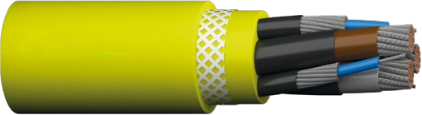

Core Construction | Three main cores stranded with three control/earth cores in outer interstices; core colors: Black, Brown, Grey |
Central Support Element | Aramid yarns embedded in cradle separator |
Insulation | EPR rubber, special compound 3GI3 |
Insulation Screen | Semi-conductive NBR easy strip |
Reinforcement | Polyester braiding |
Outer Sheath | Rubber polychloroprene (PCP), special compound 5GM5 |
Mechanical Properties | Torsional stress ±50°/m; Permanent tensile strength: 30 N/mm² |
Travel Speed | Up to 160 m/min |
Bending Radius | 4 × cable diameter per VDE 0298-3; Minimum 20 × diameter for S-type directional changes |
Chemical & Environmental Resistance | Flame retardant; oil resistant; ozone resistant; UV resistant |
FEICHUN(S) (N)SSHCGEOEU cable is designed for frequently changing dynamic loads in underground mining, ideal for reeling applications such as scoops (LHDs). Suitable for mono-spiral and cylindrical reels, the cable features a high tensile strength central reinforcement element and an outer sheath with excellent abrasion and tear resistance, ensuring durability and reliable operation under harsh mining conditions.
Standards and Certifications
Based on DIN VDE 0250-812
MA China Certification
EAC Certification
DIN VDE 0298-4 E
DIN EN 60228 / IEC 60228 / VDE 0295
DIN EN 60811-404 / IEC 60811-404
DIN EN 60332-1-2 / IEC 60332-1-2
Product Features
Designed for Dynamic Reeling Loads: Optimized for frequent bending, roller bending, and torsional stress in underground mining.
High Tensile Strength: Central aramid reinforcement and polyester braiding provide robust mechanical strength.
Abrasion and Tear Resistant Sheath: Polychloroprene (PCP) sheath with special compound ensures durability in harsh conditions.
Wide Operating Temperature Range: Suitable for both fixed and flexible installation environments.
Certified Quality: Meets rigorous international standards for mining cable applications.
Application Areas

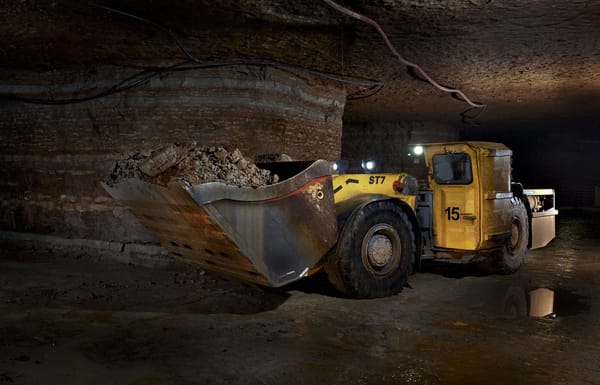

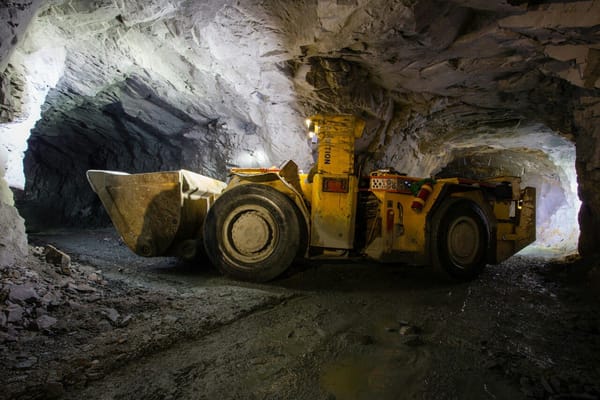

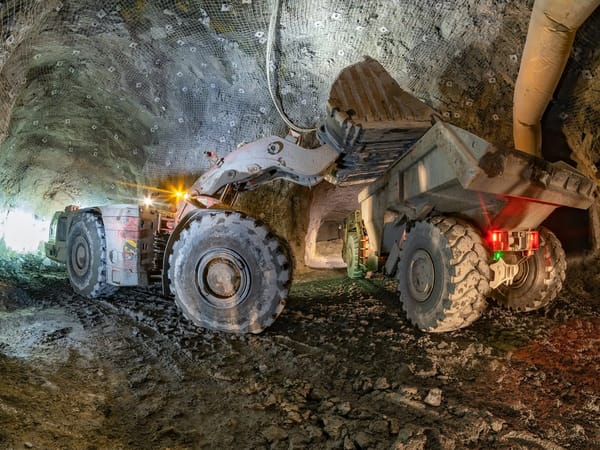

Ideal for power supply cables on mobile underground mining equipment requiring reel operation, such as load-haul-dump (LHD) scoops and similar machinery.
Installation and Maintenance
Installed per VDE 0298-3 bending radius specifications with routine inspections to sustain cable integrity under dynamic use.
Customization Services
Available with customizable conductor sizes, core arrangements, reinforcement options, and cable lengths.
Contact Us
For quotations, technical datasheets, and customized underground reeling cable solutions, please contact our sales or technical teams.
