Feichun® STN Highly Flexible Crane Cable with Central Strain Relief – Ideal for Lifting, Construction, and Marine Environments

In today's demanding industrial landscape, the reliability and performance of electrical cables can make the difference between operational success and costly downtime. The Feichun STN cable represents a breakthrough in flexible crane cable technology, specifically engineered to withstand the harshest environmental conditions while maintaining exceptional electrical performance. This highly specialized crane cable for outdoor use incorporates advanced flexible cable with strain relief design, making it the preferred choice for professionals who cannot afford equipment failure in critical applications.

Introduction

The importance of flexible and weather-resistant cables in heavy-duty applications cannot be overstated. Traditional cables often fail under the mechanical stress of constant movement, exposure to UV radiation, moisture, and chemical contaminants commonly found in industrial environments. The Feichun® STN addresses these challenges through innovative engineering that combines superior flexibility with uncompromising durability, establishing new standards for crane and lifting equipment cables.

Key Features of Feichun® STN Cable

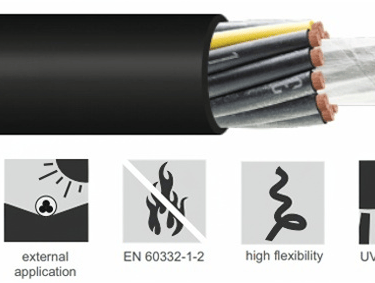

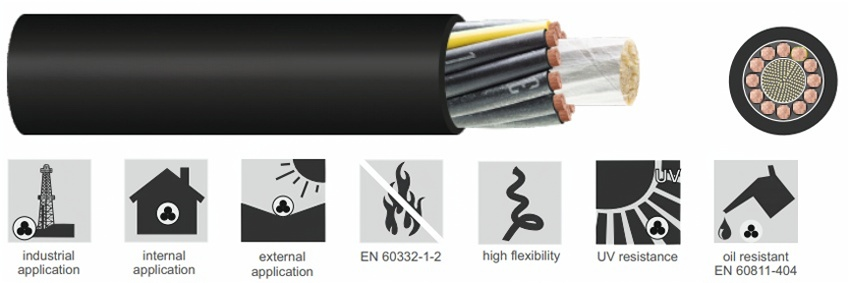

The Feichun® STN cable's most distinctive feature is its weather-resistant cable construction, built around a revolutionary central strain relief system. This UV resistant crane cable incorporates either textile or aramid-based strain relief elements that run through the cable's core, providing unprecedented mechanical strength while maintaining the flexibility required for dynamic applications.

What sets this seawater resistant cable apart is its ability to support free-hanging applications up to an impressive 80 meters without additional support structures. This capability is achieved through the cable's unique core arrangement, where individual conductors are stranded around the central strain relief element, distributing mechanical loads evenly throughout the cable's structure.

The cable's exceptional resistance properties make it suitable for the most challenging environments. Its excellent UV resistance ensures long-term performance under direct sunlight, while its ozone resistance prevents degradation in polluted urban or industrial atmospheres. The moisture and seawater resistance capabilities make it particularly valuable in marine and coastal applications where salt spray and high humidity would quickly compromise conventional cables.

The outer sheath, constructed from a specialized rubber compound conforming to DIN VDE 0207-21 type 5GM3 standards, provides multi-layered protection against oil, ozone, and UV radiation. This flame-retardant outer layer maintains its integrity even under extreme temperature variations, ensuring consistent performance across diverse operational conditions.

Typical Applications

The versatility of the Feichun® STN cable makes it indispensable across numerous industries and applications. In lifting equipment applications, this construction equipment cable provides the reliability needed for overhead cranes, mobile cranes, and hoisting systems where cable failure could result in catastrophic accidents and significant financial losses.

Construction machinery operations benefit tremendously from the cable's robust design. Whether powering tower cranes at high-rise construction sites or providing electrical connections for heavy earthmoving equipment, the shipyard cable performs consistently in environments characterized by dust, moisture, temperature extremes, and mechanical stress.

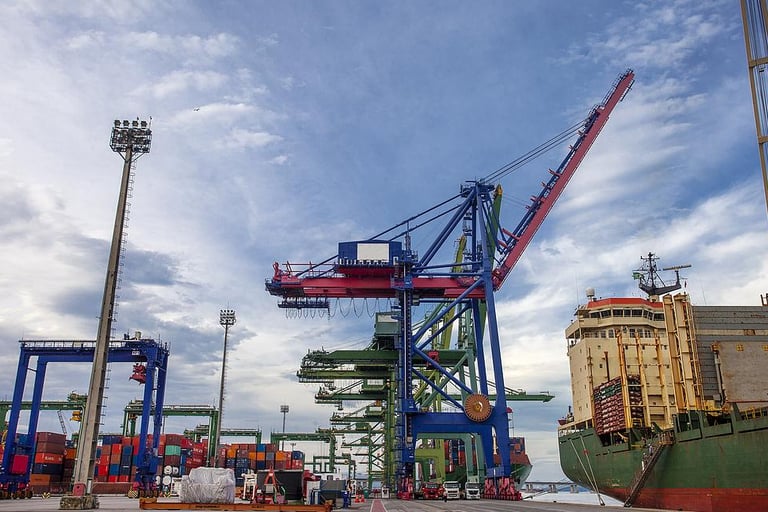

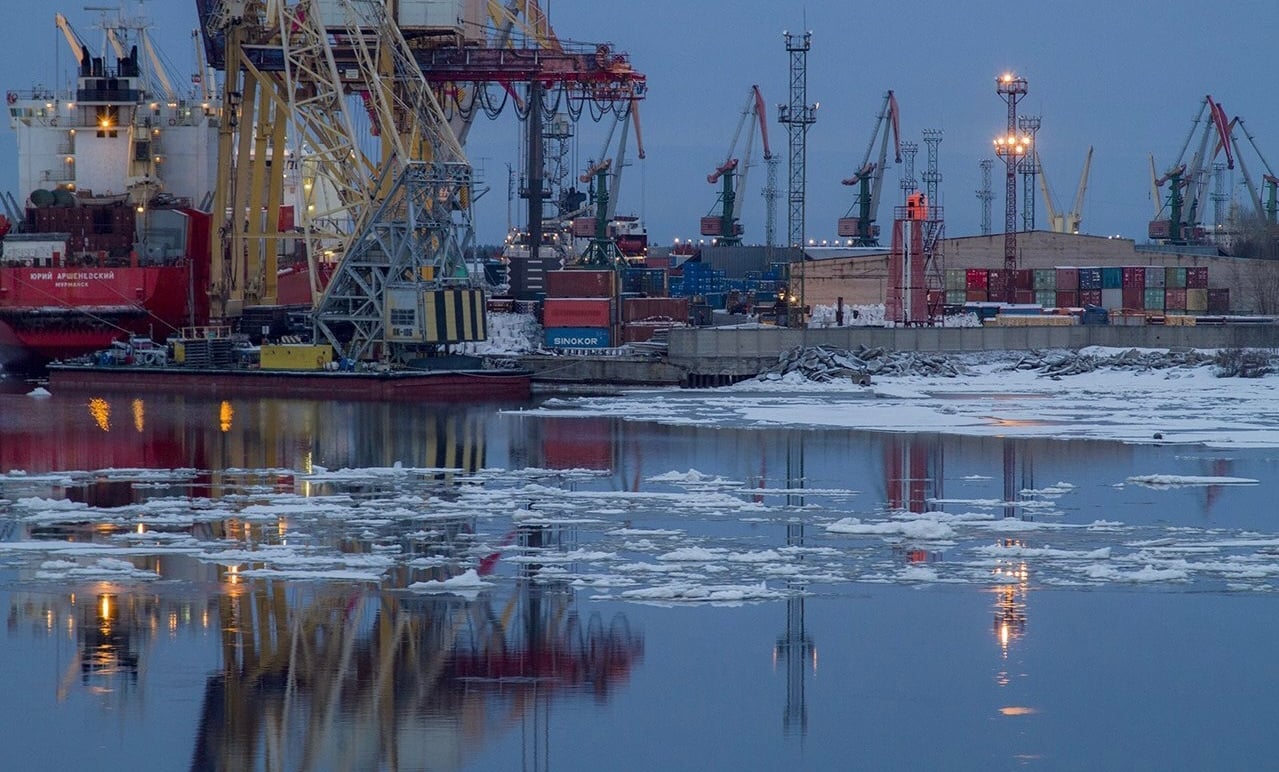

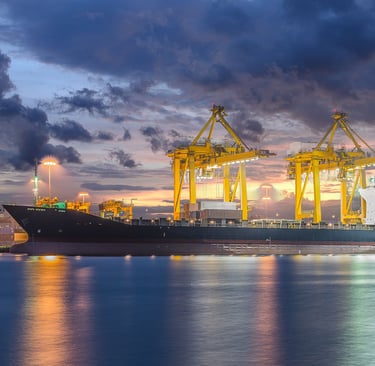

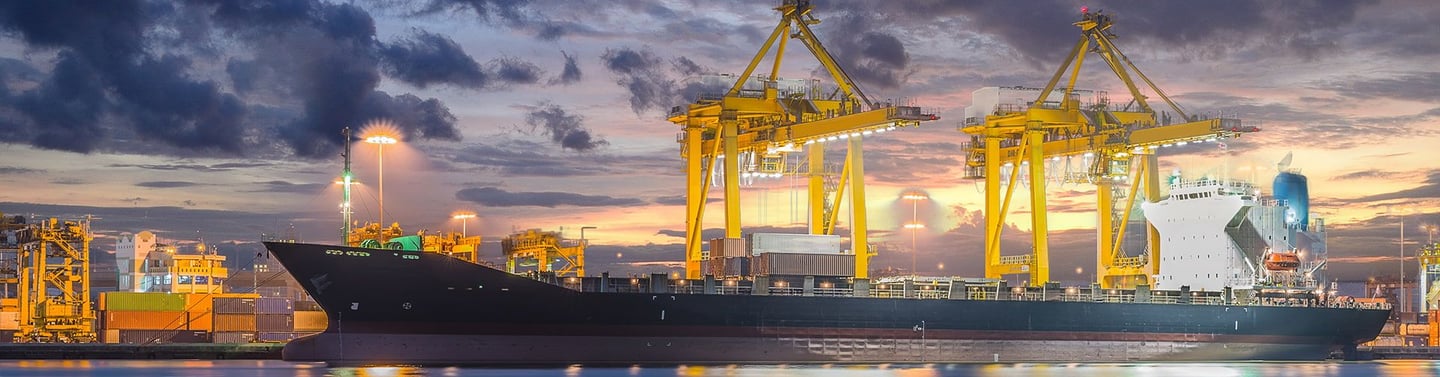

Port and shipyard applications represent perhaps the most demanding use cases for the lifting cable for cranes. The combination of saltwater exposure, extreme weather conditions, and heavy mechanical loads creates an environment where only the most robust cables can survive. The Feichun® STN's seawater resistance and UV stability make it ideally suited for container handling cranes, ship-to-shore cranes, and marine construction equipment.

Transportation systems, including rail-mounted cranes, mobile lifting platforms, and specialized cargo handling equipment, rely on the cable's flexibility and durability to maintain operational readiness. The cable's ability to withstand constant flexing and environmental exposure ensures minimal maintenance requirements and extended service life.

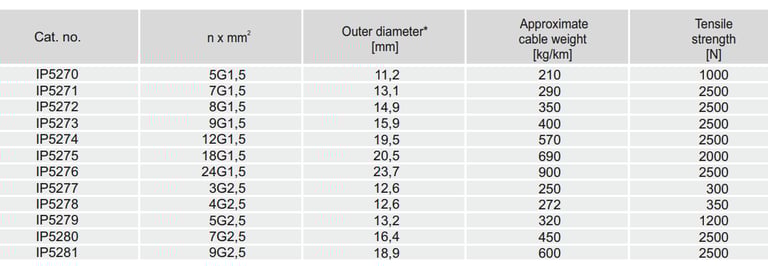

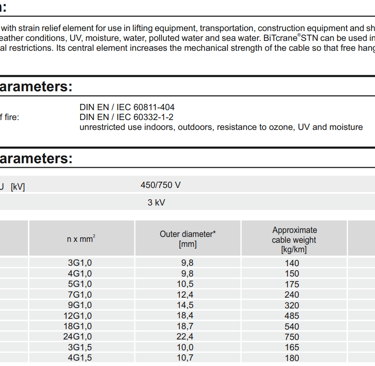

Technical Specifications

The Feichun® STN operates at a 450/750V crane cable rating, making it suitable for a wide range of industrial applications. The cable's voltage designation of 450/750V indicates its capability to handle 450V between conductor and ground, and 750V between conductors, providing adequate safety margins for most crane and lifting applications.

Temperature performance is critical in industrial applications, and the Feichun® STN excels in this regard. For fixed installation applications, the cable operates reliably across a temperature range of -40°C to +80°C, while flexible operation applications see a slightly reduced but still impressive range of -30°C to +80°C. The maximum operating temperature on the conductor reaches 90°C during normal operation, with short-circuit conditions rated up to 250°C.

The cable's flame retardant flexible cable properties comply with EN 60332-1-2 cable standards, ensuring that it will not propagate flame in the event of electrical fault or external fire exposure. This flame retardant characteristic is particularly important in enclosed spaces or applications where fire safety is paramount.

Oil resistance, certified to EN 60811-404 standards, ensures the cable maintains its integrity when exposed to hydraulic fluids, lubricants, and other petroleum-based products commonly encountered in industrial environments. This resistance prevents cable degradation and maintains electrical properties over extended periods of exposure.

Mechanical Design & Durability

The mechanical design of the Feichun® STN cable reflects decades of engineering expertise and real-world application experience. The conductor construction utilizes plain copper wire conforming to class 6 specifications according to DIN EN/IEC 60228. This class 6 designation indicates the highest level of flexibility in copper conductor design, essential for applications requiring frequent flexing and movement.

The EPR insulated cable construction employs EPR (Ethylene Propylene Rubber) compound type 3GI3 according to DIN VDE 0207-20 standards. EPR insulation offers superior electrical properties, excellent temperature resistance, and outstanding flexibility compared to traditional PVC insulation. This insulation system maintains its properties across the cable's entire operating temperature range while providing excellent dielectric strength.

Core identification follows industry standards with color-coded arrangements for cables with five cores or fewer, featuring the standard green/yellow protective conductor. For cables with six or more cores, a black numbering system is employed while maintaining the green/yellow protective conductor for safety compliance.

The flexible cable with textile core design represents the heart of the cable's mechanical performance. The central strain relief element, constructed from either textile or aramid-based materials, provides the tensile strength necessary for free-hanging applications while maintaining the flexibility required for dynamic operations. This industrial cable with strain relief design distributes mechanical loads throughout the cable structure, preventing stress concentration that could lead to premature failure.

The outer sheath construction deserves particular attention for its multi-functional design. The rubber compound, formulated according to DIN VDE 0207-21 type 5GM3 specifications, provides comprehensive protection against environmental hazards. Its oil resistance prevents degradation from hydraulic fluids and lubricants, while ozone resistance ensures long-term performance in urban and industrial atmospheres where ozone levels may be elevated.

Compliance and Certification

The Feichun® STN cable meets the most stringent international standards and regulations, ensuring compatibility with global industrial requirements. RoHS compliant crane cable certification confirms that the cable is manufactured without hazardous substances, meeting the European Union's Restriction of Hazardous Substances directive 2015/863/EU. This compliance is increasingly important as environmental regulations become more stringent worldwide.

CPR certified cable status under regulation 305/2011 ensures that the cable meets Construction Products Regulation requirements for fire performance and safety in building applications. This certification is mandatory for many construction and industrial applications within the European market and increasingly recognized globally.

The cable's manufacture according to DIN VDE standard cables specifications ensures compatibility with German and European industrial standards. DIN VDE standards are recognized worldwide for their rigor and comprehensive coverage of electrical safety and performance requirements. Compliance with IEC standards further ensures international compatibility and acceptance.

Low Voltage Directive (LVD) compliance ensures that the cable meets essential safety requirements for electrical equipment operating within specified voltage ranges. This compliance demonstrates the manufacturer's commitment to electrical safety and performance standards.

Feichun® STN Compared to Other Crane Cables

When evaluating the Feichun® STN against conventional crane cables, several key differentiators emerge that establish it as a high-performance crane cable solution. The most significant advantage lies in its unique combination of flexibility and mechanical strength, achieved through the innovative central strain relief design.

Traditional crane cables often compromise between flexibility and strength, with highly flexible cables lacking the tensile strength for long free-hanging applications, while stronger cables sacrifice the flexibility needed for dynamic operations. The Feichun® STN eliminates this compromise through its engineered approach to load distribution and stress management.

The cable's superior environmental resistance represents another crucial advantage in industrial rubber cable comparison evaluations. While standard industrial cables may offer resistance to one or two environmental factors, the Feichun® STN provides comprehensive protection against UV radiation, ozone, moisture, seawater, oil, and temperature extremes simultaneously.

The 80-meter free-hanging capability significantly exceeds that of most conventional crane cables, reducing the need for intermediate support structures and simplifying installation in many applications. This capability translates to reduced infrastructure costs and improved operational flexibility for end users.

From a total cost of ownership perspective, the Feichun® STN demonstrates superior value through extended service life, reduced maintenance requirements, and lower failure rates in harsh industrial environments. While the initial investment may be higher than basic alternatives, the long-term cost efficiency becomes apparent through reduced replacement frequency and minimized downtime costs.

Frequently Asked Questions About Crane Cable Issues

Q: What causes most crane cable failures in outdoor applications? A: The most common causes include UV degradation of the outer sheath, moisture ingress leading to conductor corrosion, mechanical stress concentration at connection points, and oil contamination causing insulation breakdown. The Feichun® STN addresses each of these failure modes through its comprehensive environmental resistance and strain relief design.

Q: How do I determine if my current crane cable can handle free-hanging applications? A: Evaluate the cable's tensile strength specifications, strain relief design, and manufacturer recommendations for maximum unsupported lengths. Standard cables without central strain relief typically cannot exceed 15-20 meters safely, while the Feichun® STN supports up to 80 meters due to its engineered core design.

Q: Why is seawater resistance important for cables not directly exposed to marine environments? A: Seawater resistance indicates superior protection against salt spray, high humidity, and corrosive atmospheres that extend far inland from coastal areas. Additionally, winter road salt and industrial chemical exposure create similarly corrosive conditions that benefit from seawater-resistant cable construction.

Q: What maintenance procedures extend crane cable life? A: Regular visual inspection for outer sheath damage, verification of proper bend radius compliance, monitoring of connection points for corrosion, and periodic electrical testing help identify potential issues before failure occurs. The Feichun® STN's robust construction reduces maintenance frequency while improving early problem detection.

Conclusion

The Feichun® STN highly flexible crane cable with central strain relief represents the pinnacle of engineering innovation in industrial cable design. Its unique combination of mechanical strength, environmental resistance, and electrical performance makes it the optimal choice for demanding applications in lifting, construction, and marine environments.

The cable's comprehensive compliance with international standards, including RoHS, CPR, and DIN VDE specifications, ensures compatibility with global industrial requirements while meeting the most stringent safety and environmental regulations. Its proven performance in applications ranging from construction sites to shipyards demonstrates the real-world reliability that industrial operations demand.

For organizations seeking to minimize downtime, reduce maintenance costs, and ensure operational safety in challenging environments, the Feichun® STN cable offers an unmatched combination of durability, flexibility, and performance. The investment in premium cable technology pays dividends through extended service life, reduced replacement frequency, and enhanced operational reliability.

Whether you're specifying cables for new installations or upgrading existing systems to improve reliability, the Feichun® STN deserves serious consideration. For inquiries about custom specifications, technical support, or availability, contact your flexible industrial cable supplier to discuss how this buy crane cable solution can enhance your operational performance.

As industrial operations continue to demand higher performance and reliability from their electrical infrastructure, the Feichun® STN cable stands ready to meet these challenges while providing the peace of mind that comes from choosing proven, premium-quality solutions from an established Feichun crane cable manufacturer.
