FESTOON FO 2 x 12 …/125 Cable for Heavy Duty Festoon Systems – High Flexibility & Optical Signal Transmission at Speeds up to 300 m/min

In the rapidly evolving landscape of industrial automation and manufacturing, festoon systems have become indispensable components for ensuring continuous power supply and data transmission to moving machinery. These sophisticated cable management systems enable seamless operation of overhead cranes, automated guided vehicles (AGVs), robotic assemblies, and other dynamic industrial equipment that require constant electrical and optical connectivity whilst in motion.

The critical importance of reliable cable solutions in festoon applications cannot be overstated. Traditional cable systems often fail under the demanding conditions of continuous movement, extreme temperatures, and exposure to industrial chemicals and environmental elements. This is where specialised festoon cables, particularly those designed for both power and optical signal transmission, become essential. The selection of appropriate cabling directly impacts operational efficiency, maintenance costs, and overall system reliability in industrial environments.

Modern industrial operations increasingly demand high-speed data transmission capabilities alongside robust power delivery, making optical fibre festoon cables a preferred choice for applications requiring both electrical power and high-bandwidth communication. The integration of optical fibres within heavy-duty festoon cables represents a significant advancement in industrial cable technology, offering superior performance characteristics that traditional copper-based solutions cannot match.

Introduction

Product Overview: FESTOON FO 2 x 12 …/125

The FESTOON FO 2 x 12 …/125 represents a cutting-edge solution in optical fibre festoon cable technology, specifically engineered for demanding industrial applications requiring reliable optical signal and data transmission. This heavy-duty rubber cable combines the robustness necessary for continuous movement applications with the precision required for high-speed optical communication systems.

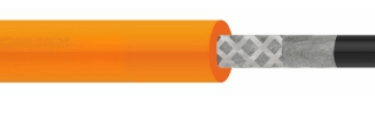

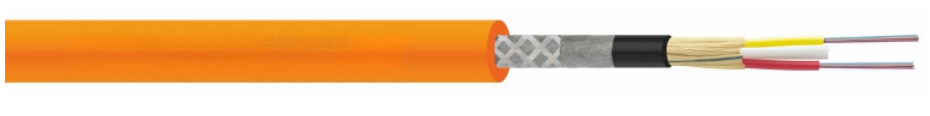

The cable's innovative design centres around its dual tube fibre optic element configuration, featuring two distinct tubes, each containing 12 optical fibres. This 2 x 12 configuration provides exceptional flexibility in network design and redundancy options, allowing for primary and backup communication paths or separate channels for different data streams. The first tube is colour-coded according to specific fibre types, whilst the second tube consistently features red identification, ensuring clear differentiation during installation and maintenance procedures.

The FESTOON FO 2 x 12 …/125 accommodates three distinct fibre types to meet varying application requirements. The E9/125 design features a yellow-coded first tube containing 12 E9/125 fibres, optimised for high-performance data transmission applications. The G62.5/125 variant incorporates a blue-coded first tube with 12 G62.5/125 fibres, whilst the G50/125 option utilises a green-coded first tube containing 12 G50/125 fibres. This variety ensures compatibility with diverse optical networking standards and legacy systems.

The cable construction incorporates synthetic strain relief elements that provide exceptional mechanical protection whilst maintaining flexibility. The thermoplastic elastomer (TPE) jacket offers superior chemical resistance and flexibility, whilst separating tapes ensure proper fibre isolation. A high-tech multifilament braid reinforcement provides additional mechanical strength without compromising the cable's dynamic performance characteristics.

Technical Specifications

The FESTOON FO 2 x 12 …/125 cable maintains a compact outer diameter ranging from 10 to 12 millimetres, with an approximate weight of 120 kilograms per kilometre. This optimised size-to-performance ratio ensures minimal space requirements whilst delivering maximum functionality in festoon system applications.

Thermal performance parameters demonstrate the cable's suitability for diverse environmental conditions. The cable withstands storage and transportation temperatures ranging from -40°C to 80°C, ensuring reliability during logistics and warehousing. For operational applications, including free-moving and festoon system deployment, the cable performs reliably within a temperature range of -30°C to 80°C, making it suitable for both indoor climate-controlled environments and challenging outdoor industrial applications.

Mechanical specifications highlight the cable's robust construction and dynamic performance capabilities. The minimum bending radius of 125 millimetres ensures the cable can navigate tight corners and complex routing requirements without compromising optical performance or mechanical integrity. The cable supports a maximum continuous operational load of 2000 Newtons, providing substantial margin for dynamic loading conditions encountered in festoon applications. Critically, the cable is engineered to support motor-driven festoon cable trolley travelling speeds up to 300 metres per minute, enabling high-speed industrial operations without performance degradation.

Chemical resistance properties ensure long-term reliability in harsh industrial environments. The cable demonstrates excellent oil resistance according to IEC 60811-404 standards, making it suitable for manufacturing environments where hydraulic fluids and lubricants are present. Fire safety compliance meets IEC 60332-1-2 requirements, ensuring safe operation in accordance with international safety standards. The cable exhibits unrestricted weather resistance for both indoor and outdoor applications, with specific resistance to ozone, ultraviolet radiation, and moisture ingress.

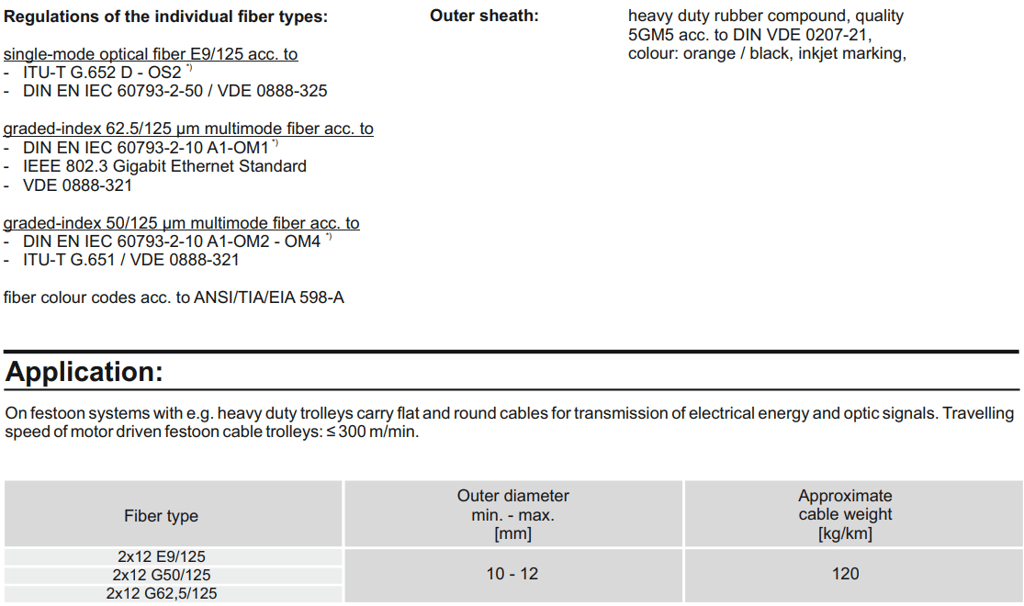

Fibre specifications adhere to rigorous international standards, ensuring compatibility and performance reliability. E9/125 fibres comply with DIN EN IEC 60793-2-50 / VDE 0888-325 standards, whilst G62.5/125 fibres meet IEEE 802.3 Gigabit Ethernet standards and VDE 0888-321 requirements. G50/125 fibres conform to ITU-T G.651 / VDE 0888-321 specifications. Fibre colour coding follows ANSI/TIA/EIA 598-A standards, ensuring universal compatibility with existing network infrastructure.

Application in Festoon Systems

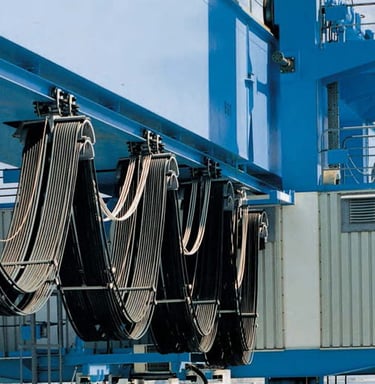

The FESTOON FO 2 x 12 …/125 cable excels in motor-driven festoon cable trolley systems, where it supports both flat and round cable configurations for comprehensive electrical energy and optical signal transmission. These systems typically involve heavy-duty trolleys that travel along predetermined paths, carrying essential power and communication cables to mobile industrial equipment.

The cable's optimisation for high travel speeds up to 300 metres per minute makes it particularly suitable for high-throughput manufacturing environments, automated warehouse systems, and rapid transit industrial applications. This speed capability significantly exceeds standard festoon cable performance parameters, enabling more efficient industrial operations and reduced cycle times.

The heavy-duty rubber compound construction provides exceptional durability whilst maintaining the high flexibility essential for smooth festoon operation. The compound's formulation specifically addresses the challenges of continuous flexing, environmental exposure, and mechanical stress encountered in dynamic industrial applications. The 5GM5 quality rubber compound, manufactured according to DIN VDE 0207-21 standards, ensures consistent performance across varying operational conditions.

The distinctive orange and black coloured outer sheath with inkjet marking facilitates easy identification and traceability during installation and maintenance procedures. This visual identification system reduces installation errors and simplifies troubleshooting processes, contributing to overall system reliability and maintenance efficiency.

Key Benefits

High flexibility represents the foremost advantage of the FESTOON FO 2 x 12 …/125 cable, enabling smooth operation in dynamic festoon setups where continuous movement is essential. The cable's design accommodates the repetitive bending and flexing motions inherent in festoon applications whilst maintaining optical transmission integrity and mechanical reliability over extended operational periods.

Robust environmental resistance ensures reliable performance across diverse indoor and outdoor applications. The cable's comprehensive resistance to oil, ultraviolet radiation, ozone, and moisture provides long-term reliability in challenging industrial environments, reducing maintenance requirements and extending service life. This environmental resilience translates to lower total cost of ownership and improved operational continuity.

Enhanced mechanical strength, achieved through synthetic strain relief elements and multifilament braid reinforcement, provides exceptional durability under dynamic loading conditions. The 2000 Newton continuous load capacity ensures adequate safety margins for demanding applications whilst the optimised construction distributes mechanical stresses effectively throughout the cable structure.

Compatibility with Gigabit Ethernet standards ensures seamless integration with modern industrial communication networks. The cable supports high-speed data transmission requirements essential for Industry 4.0 applications, real-time monitoring systems, and advanced automation protocols. This compatibility future-proofs installations against evolving communication requirements whilst maintaining backward compatibility with existing systems.

The dual-tube configuration provides inherent redundancy and flexibility in network design, allowing for primary and backup communication paths or dedicated channels for different data types. This configuration enhances system reliability whilst providing options for future expansion or reconfiguration without cable replacement.

Use Cases and Industry Applications

Manufacturing industries represent primary applications for FESTOON FO 2 x 12 …/125 cables, particularly in automated production lines, overhead crane systems, and robotic assembly operations. These environments demand reliable power and communication delivery to moving equipment whilst maintaining high operational speeds and precision control. The cable's ability to support 300 metres per minute travel speeds aligns perfectly with modern manufacturing efficiency requirements.

Automation and material handling industries benefit significantly from the cable's robust construction and high-speed capabilities. Automated storage and retrieval systems (AS/RS), automated guided vehicle (AGV) charging and communication systems, and conveyor belt networks require reliable optical communication for coordination and control. The cable's environmental resistance ensures consistent performance in warehouse environments where temperature variations and dust exposure are common.

Telecommunication infrastructure applications, particularly in mobile base stations and tower installations, utilise festoon cables for antenna positioning systems and equipment access platforms. The cable's weather resistance and optical performance capabilities make it ideal for outdoor telecommunication environments where reliable high-speed data transmission is essential.

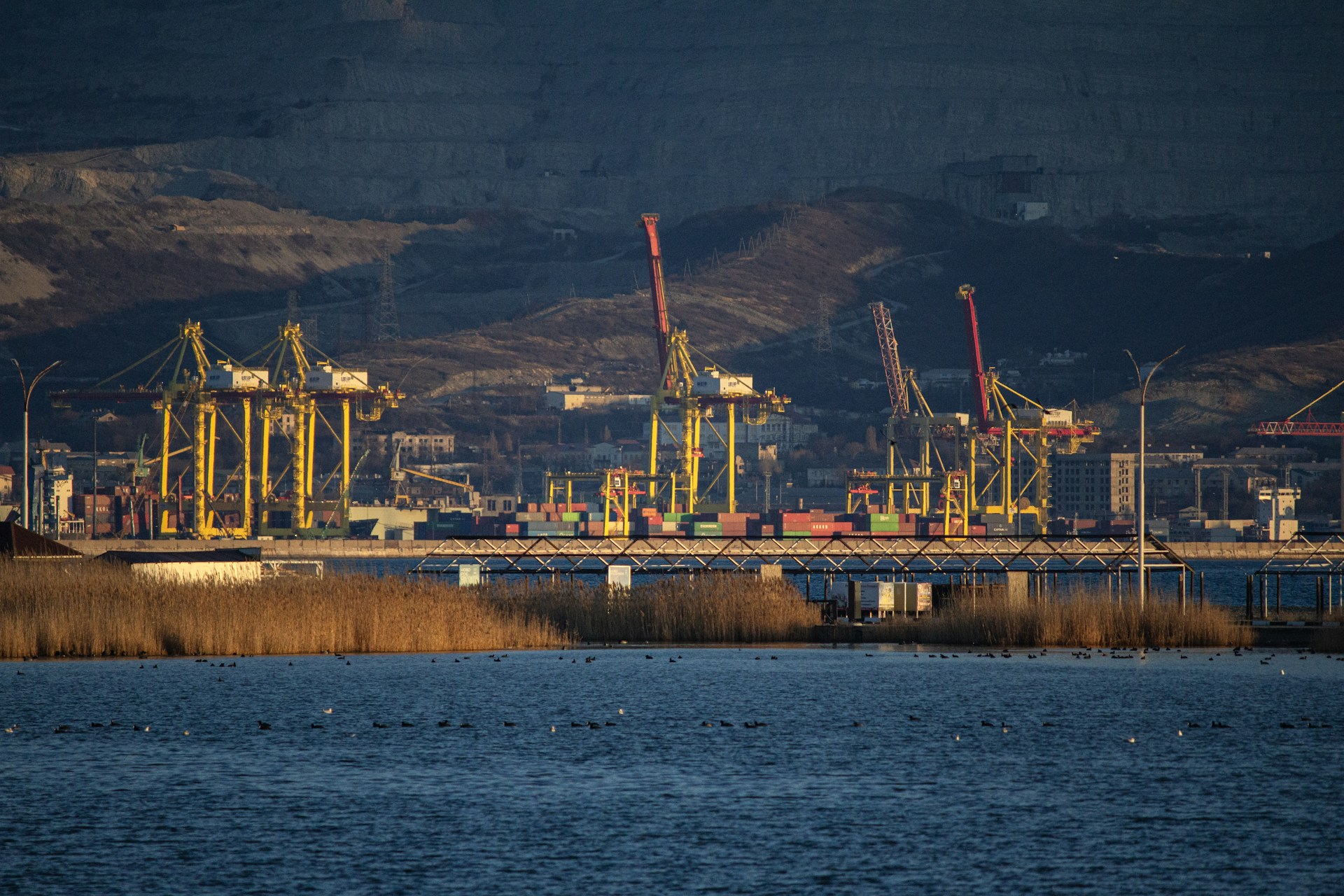

Port and maritime industries employ festoon systems for container handling equipment, ship-to-shore cranes, and automated cargo handling systems. The cable's oil resistance and environmental durability provide essential performance characteristics for marine environments where salt spray, temperature extremes, and mechanical stress are prevalent.

Mining and heavy industry applications benefit from the cable's robust construction and resistance to harsh environmental conditions. Underground conveyor systems, mobile mining equipment, and processing facility automation require cables that can withstand extreme conditions whilst maintaining communication reliability.

Frequently Asked Questions

Q: What makes this cable suitable for high-speed festoon applications? A: The FESTOON FO 2 x 12 …/125 cable is specifically engineered with a heavy-duty rubber compound and optimised construction that supports motor-driven trolley speeds up to 300 m/min. Its synthetic strain relief elements and multifilament braid reinforcement distribute mechanical stresses effectively, whilst the 125mm minimum bending radius ensures smooth operation around pulleys and guides.

Q: How does the dual-tube configuration benefit industrial applications? A: The 2 x 12 configuration provides inherent redundancy and network flexibility. Users can designate one tube for primary communication and the second for backup, or allocate separate tubes for different data streams such as control signals and monitoring data. This configuration enhances system reliability whilst providing future expansion options.

Q: What environmental conditions can this cable withstand? A: The cable operates reliably in temperatures from -30°C to 80°C and withstands storage temperatures from -40°C to 80°C. It demonstrates excellent resistance to oil (IEC 60811-404), UV radiation, ozone, and moisture, making it suitable for both indoor and outdoor industrial environments.

Q: Are there potential issues with continuous flexing in festoon applications? A: Whilst the cable is designed for continuous flexing, proper installation practices are essential. Ensuring adequate support intervals, maintaining minimum bending radius requirements, and regular inspection of high-flex zones will maximise service life. The synthetic strain relief elements and TPE jacket are specifically designed to handle repetitive flexing stresses.

Q: How do I select the appropriate fibre type for my application? A: E9/125 fibres are optimised for high-performance, long-distance transmission applications. G62.5/125 fibres are ideal for Gigabit Ethernet and shorter distance applications. G50/125 fibres suit legacy system compatibility and specific industrial standards. Consult technical specifications and consider transmission distance, bandwidth requirements, and existing infrastructure compatibility.

Conclusion

The FESTOON FO 2 x 12 …/125 cable represents an optimal solution for demanding festoon system applications requiring reliable optical signal transmission combined with exceptional mechanical durability. Its unique combination of high-speed capability, environmental resistance, and flexible design makes it ideally suited for modern industrial automation environments where continuous movement and high-performance communication are essential.

The cable's comprehensive technical specifications, from its 300 m/min speed capability to its robust environmental resistance, position it as a premium choice for industries requiring uncompromising performance. The dual-tube configuration provides both current functionality and future expandability, ensuring long-term value and system flexibility.

For specific applications requiring customised fibre combinations or unique environmental requirements, consulting detailed technical datasheets and engaging with cable specialists ensures optimal system performance and reliability. The FESTOON FO 2 x 12 …/125 cable's proven design and rigorous compliance with international standards provide the foundation for reliable, high-performance industrial communication systems.
