FESTOON NTSKCGECWOEU I 3.6/6 kV Mining Cable
Heavy-Duty Mining Cable with Flame, Oil & UV Resistance
$10.00

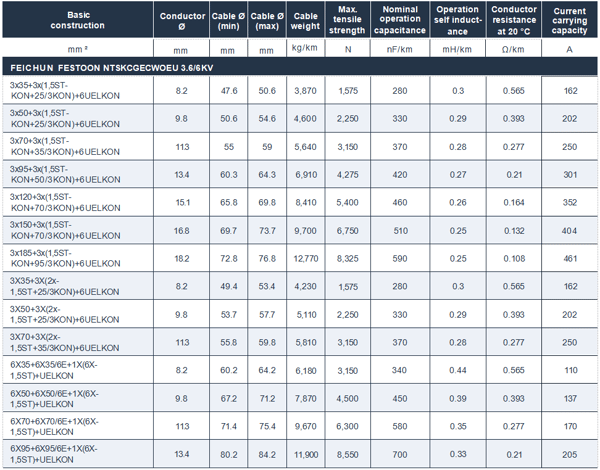

Technical Specifications
Parameter | Description |
|---|---|
Rated Voltage U0/U (Um) | 3.6/6 (7.2) kV |
Test Voltage | 11 kV |
AC Test Voltage (Control Cores) | 2 kV |
Nominal Voltage U | 6,000 V |
Max Conductor Temperature | 90 °C |
Max Short Circuit Temperature | 250 °C |
Ambient Temperature Range (Fixed) | –40 °C to +80 °C |
Ambient Temperature Range (Flexible) | –25 °C to +60 °C |
Conductor | Finely stranded tinned copper, class 5 |

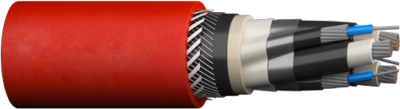

Conductor Configuration | Three main cores laid-up with double concentric control/PE and FO/PE conductors in outer interstices; power cores natural color, control cores blue |
Insulation | Semi-conductive EPR rubber, special compound 3GI3 |
Insulation Screen | Semi-conductive NBR easy strip |
Reinforcement | Spinning of steel and copper-tinned wires |
Outer Sheath | Rubber polychloroprene (PCP), special compound 5GM5 |
Mechanical Properties | Permanent tensile strength: 15 N/mm² |
Bending Radius | 6 × diameter (fixed installations); 10 × diameter (flexible operations) |
Chemical & Environmental Resistance | Flame retardant; oil resistant; ozone resistant; UV resistant |
FESTOON NTSKCGECWOEU is designed as a power feeder cable for underground mines and tunnel sites. It is used in underground festoon systems for the power supply of mobile transformers and shiftable units in mining applications, providing reliable electrical performance and robust mechanical properties suitable for demanding subterranean conditions.
Standards and Certifications
DIN VDE 0250-813
DIN EN 60228 / IEC 60228 / VDE 0295
DIN VDE 0298-4
DIN EN 60332-1-2 / IEC 60332-1-2
DIN EN 60811-404 / IEC 60811-404
Product Features
Designed for Underground Festoon Systems: Reliable power supply for mobile transformers and shiftable mining units.
Robust Mechanical Construction: Steel and copper-tinned wire spinning reinforce cable strength and durability.
Superior Electrical Insulation: Special EPR compounds ensure stable electrical performance in harsh underground environments.
Wide Temperature Range: Supports both fixed and flexible installations over a broad ambient temperature spectrum.
Certified to International Standards: Ensures compliance with demanding mining cable requirements.
Application Areas

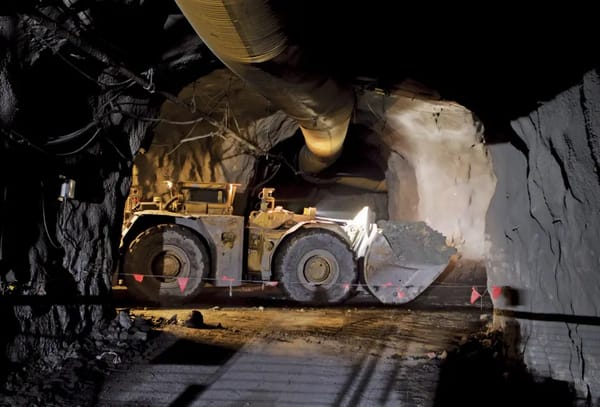

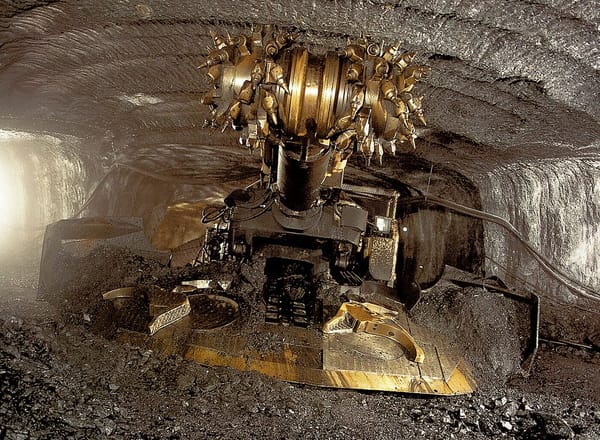

Power feeder cable for underground mining tunnels and sites using festoon systems to power mobile equipment and shiftable units.
Installation and Maintenance
Install in accordance with VDE 0298-3 bending radius guidelines. Regular maintenance is recommended to ensure cable integrity during operation.
Customization Services
Available with multiple conductor configurations, sheath materials, and lengths tailored to mining site specifications.
Contact Us
For quotations, technical datasheets, and tailored underground festoon cable solutions, please contact our sales or technical teams.
