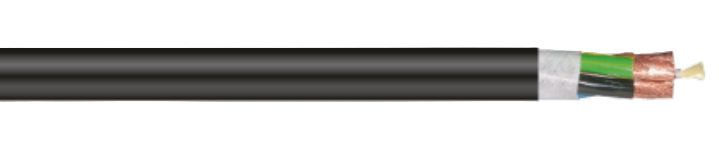

FESTOONFLEX PUR-HF Power & Control Cable for Extreme Mechanical Demands
Designed for trolley systems, drag chains, and conveyor facilities with frequent bending in indoor and outdoor environments
$10.00
Structure & Specifications | |

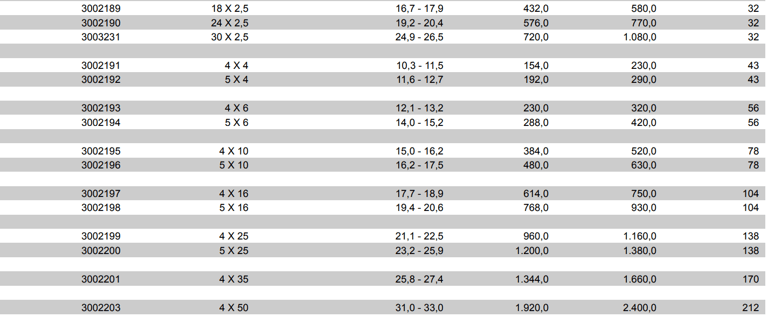

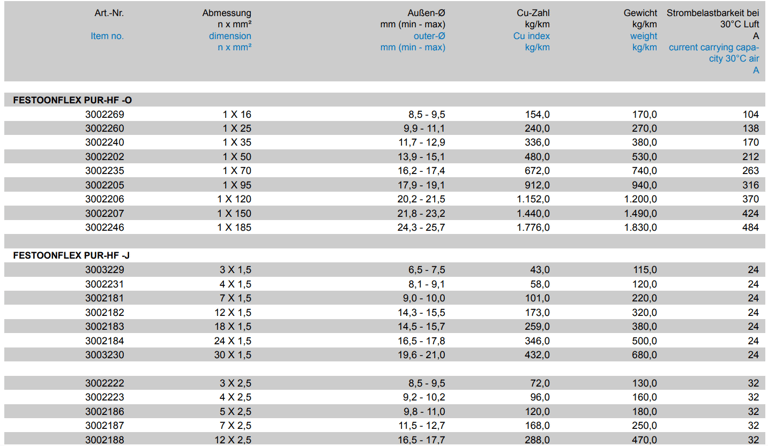

conductor material conductor class core insulation core identification stranding outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved speed torsion tensile strength operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 based on polyester acc. to DIN 0293-308 up to 5 wires coloured, from 6 wi- res white with black numerals with or without GNYE cores stranded in layers around central element PUR, halogen-free black yes Uo/U: 0,6/1 kV 2,5 kV look at the table on the right side 6 x d 6 x d In festoon systems max. 240 m/min. / in reeling operati- on max. 60 m/min. +/- 25 °/m on the conductor max. 15 N / mm² -50 °C / +90 °C |
operat. temp. moved min/max -40 °C / +90 °C temp. at conductor +90 °C burning behavior similar to IEC 60332-2-1 resistant to oil acc. to EN 60811-2-1 standard similar to DIN VDE 0250 | |
Application |
power and control cable for very high mechanical requirements, frequently bendings, especially for use in trolley systems, drag chains on moving parts of machines, con- veyor facilities. Suitable for dry, humid and wet rooms and for outdoor use. |
Special Features |
• for low reeling operation requirements • free from lacquer damaging substances and silicone (during production) • halogen-free • oil resistant acc. to IEC 61892-4 D • for permanent use in water (no drinking water) up to 50 m diving depth |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. |
