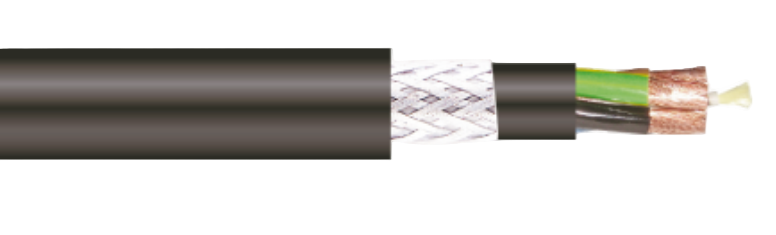

FESTOONTEC C-PUR-HF Power & Control Cable for High Mechanical Demands
Durable solution for trolley systems, drag chains, and conveyor facilities with frequent bending in indoor and outdoor environments
$5.00
Structure & Specifications | |

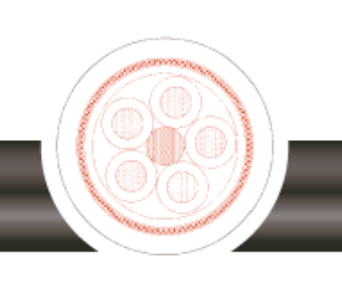

conductor material conductor class core insulation core identification stranding inner sheath material protection against contact shield supporting element protection against contact outer sheath sheath colour printing rated voltage testing voltage current carrying capacity min. bending radius fixed min. bending radius moved speed tensile strength operat. temp. fixed min/max | bare copper strand acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 based on polyester acc. to DIN 0293-308 up to 5 wires coloured, from 6 wi- res white with black numerals with or without GNYE cores stranded in layers around central element PUR, only cables with 2, 3, 4 and 5 cores and cables with twisted pairs PETP-foil, overlapped copper braid tinned, coverage ca. 85 % multicore cables with central textile element polyesterfleece, overlapped PUR black yes Uo/U: 0,6/1 kV 2,5 kV acc. to DIN VDE, see Technical Guideline 6 x d 7,5 x d on cable trolleys max. 240 m / min. on the conductor max. 15 N / mm² -50 °C / +90 °C |
operat. temp. moved min/max -40 °C / +90 °C temp. at conductor +90 °C burning behavior similar to IEC 60332-2-1 resistant to oil acc. to 60811-2-1 standard similar to DIN VDE 0250 | |
Application |
power and control cable for very high mechanical requirements, frequently bendings, especially for use in trolley systems, drag chains on moving parts of machines, con- veyor facilities. Suitable for dry, humid and wet rooms and for outdoor use. |
Special Features |
• free from lacquer damaging substances and silicone (during production) • halogen-free • FESTOONTEC PUR-HF also available with shielded twisted pairs, see table • also available on request for permanent use in water (no drinking water) up to 50 m di- ving depth |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. |
