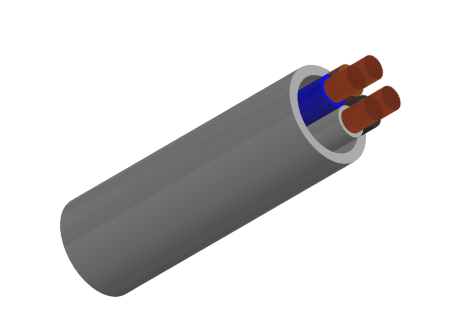

FG7M1/FG7OM1

Application and Description

These cables are especially used in power circuits or signals and commands transfer. In environments with high fire hazards risk when it's essential to guarantee the safety of people and goods. Typically hospitals, schools, commercial areas, public premises, hotels, undergrounds, residential buildings and industries ambits with high concentration of persons or instrumental goods. For fixed installation indoor or outdoor, clipped on metallic frames or walls.

Standard and Approval

CEI 20-11

CEI 20-13

CEI 20-22 III

CEI 20-29

CEI 20-35

CEI 20-37

CEI-UNEL 00722

CEI-UNEL 35382

CEI-UMEL 35384

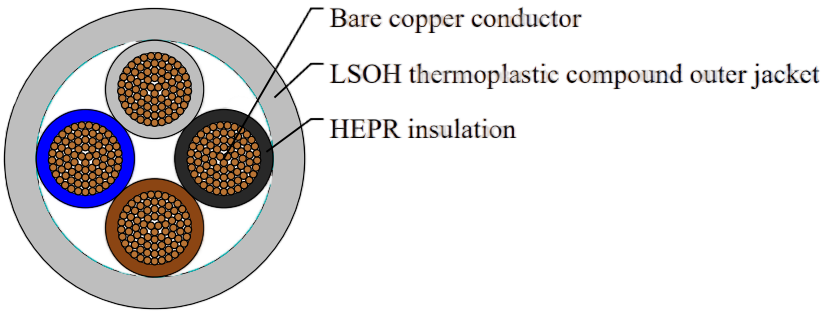

Cable Construction

Flexible bare copper conductor to CEI 20-29 cl.5

Rubber HEPR, G7 quality to CEI 20-11

LSOH thermoplastic compound filler

Type M1 LSOH thermoplastic compound outer jacket

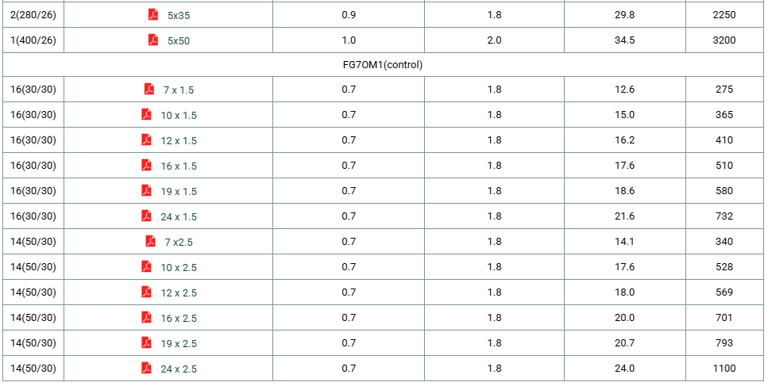

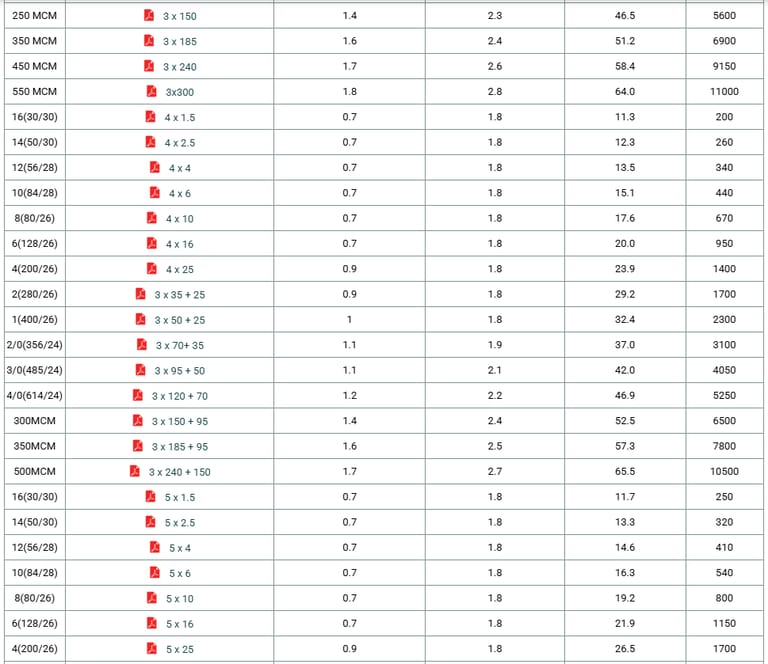

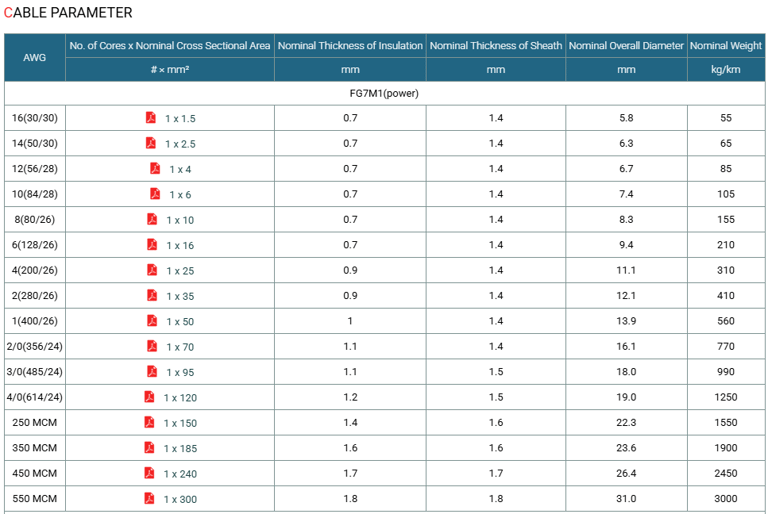

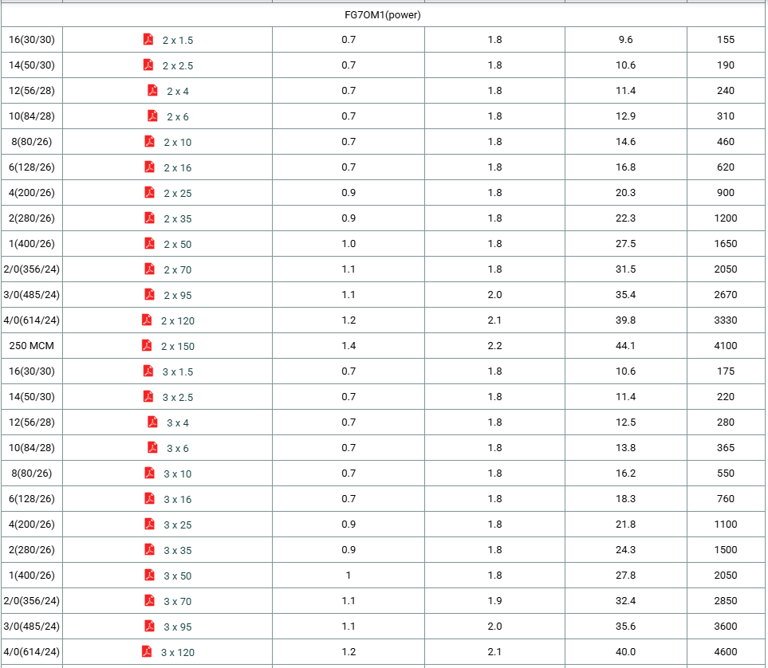

Technical Characteristics
