FG7OH1R/FG7OH2R

Application and Description

These cables are suitable for power transport in industry, yards, residential building and handicraft. For installations on masonry and metal structures, on gangways, pipes, ducts and similar systems. For fixed installation indoors and out. Underground laying is acceptable, even if not protected. Shield guarantees an optimal protection from electromagnetic disturbs; suitable for civil and industrial places and for the transport of signals and commands.

Standard and Approval

CEI 20-13

CEI 20-22 II

CEI 20-35 (EN60332-1)

CEI 20-37 pt.2 (EN50267)

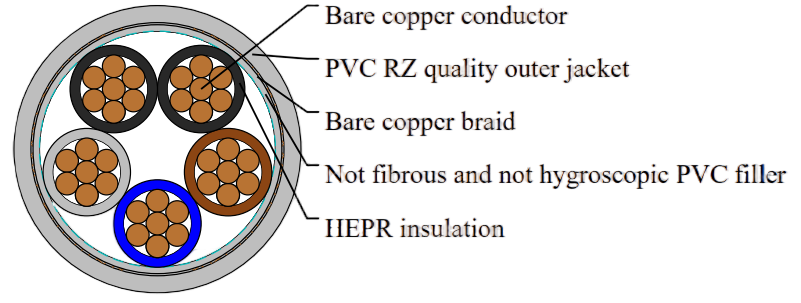

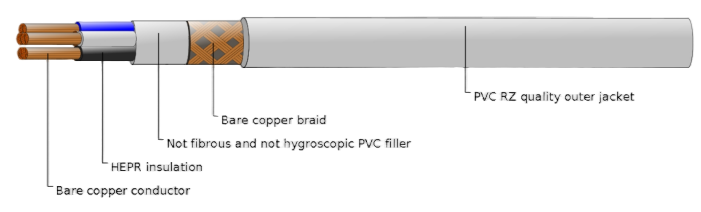

Cable Construction

Flexible bare copper conductor to CEI 20-29 cl.5

Rubber HEPR, G7 quality,acc. to CEI 20-11

Not fibrous and not hygroscopic filler

Bare copper tape screen(for FG7OH1R)

Bare copper wire braid(for FG7OH2R)

Grey PVC RZ quality outer jacket

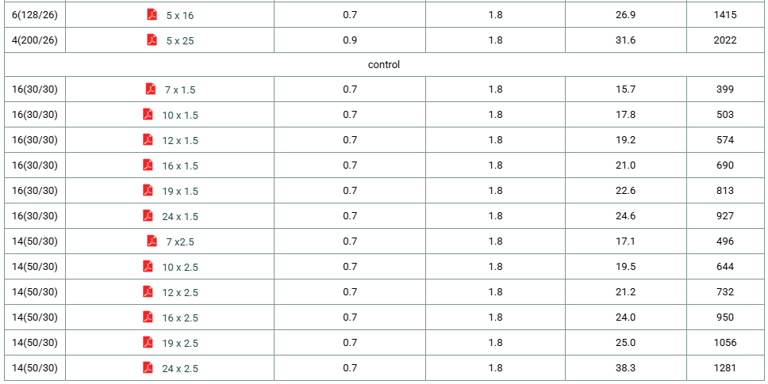

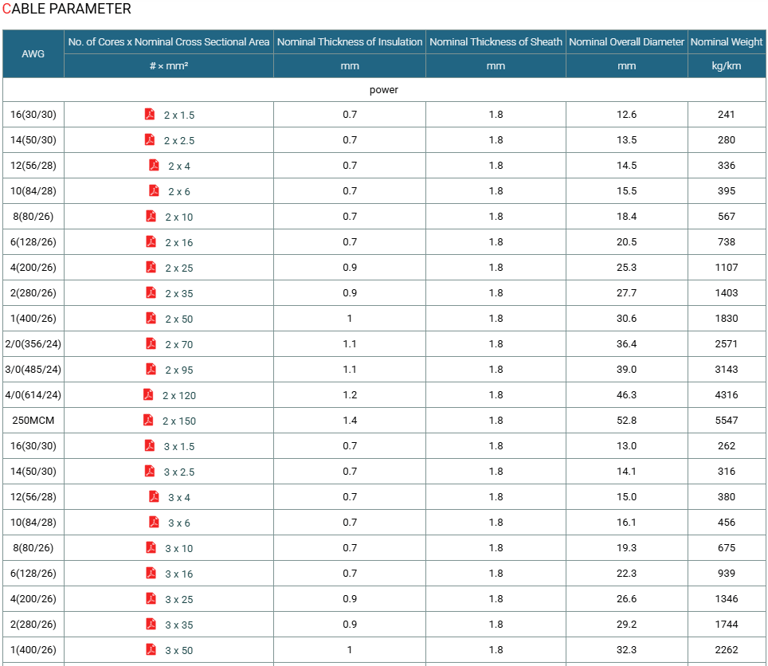

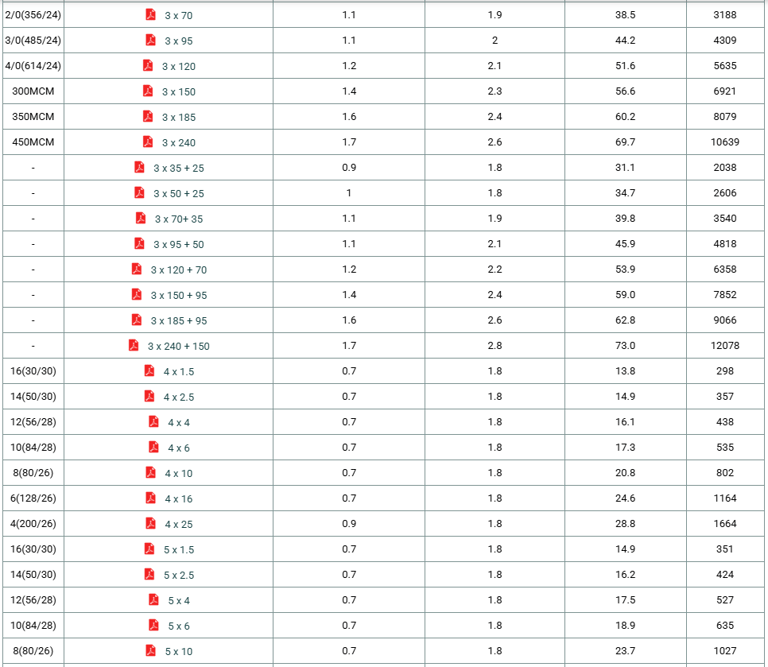

Technical Characteristics
