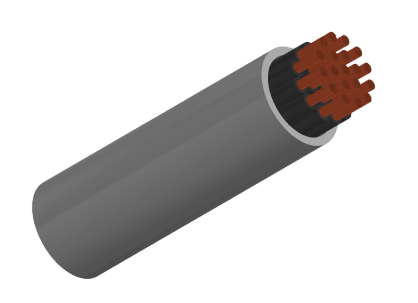

FG7OR
Cable
Application and Description
These cables are suitable for power transport in industry, yards, residential building and handicraft. For installations on masonry and metal structures, on gangways, pipes, ducts and similar systems. For fixed installation indoors and outdoors. Underground laying is acceptable, even if not protected.
Standard and Approval
CEI 20-13
CEI 20-22 II
CEI 20-35 (EN60332-1)
CEI 20-37 pt.2 (EN50267)

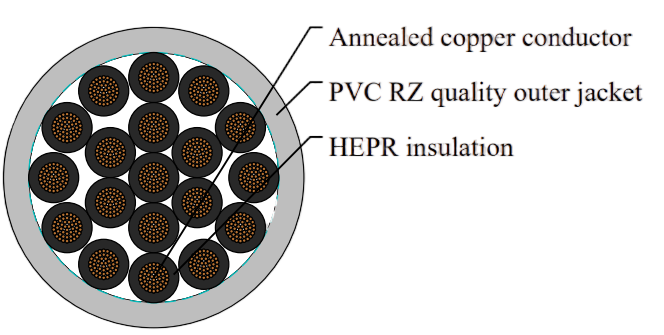

Cable Construction
Flexible conductor of annealed red copper Cl.5
Rubber HEPR, G7 quality,acc. to CEI 20-11
Not fibrous and not hygroscopic filler
Grey PVC RZ quality outer jacket
Technical Characteristics
Working voltage | 600/1000 V |
Test voltage | 4000 V |
Minimum bending radius | 4 x Ø |
Flexing temperature | 0°C to +90°C |
Static temperature | -25°C to +90°C |
Maximum short circuit temperature | +250°C |
Flame retardant | CEI 20-22 II |
Insulation resistance | 10 MΩ x km |
