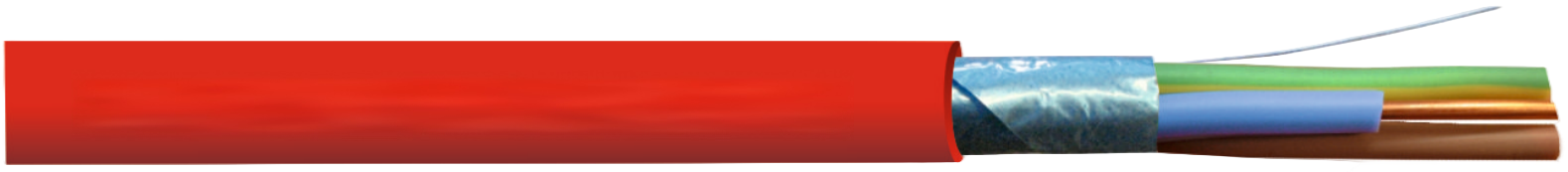

S(St) FE180/E90 Screened Fire-Resistant Power Cable 300/500V

Halogen-free indoor cable with static screen, providing 90 min. circuit integrity and 180 min. fire insulation for critical safety systems.

$10.00

Technical data:

Thermal parameters:

Temperature range:

fixed installation: -40 °C up to 80 °C

min. instalation temp: -10 °C

max. installation temp: 50 °C

Electrical parameters:

Operating voltage: 300/500 V Test voltage:

AC 3000 V

DC 7200 V

Insulation resistance (min.): 100 MΩ x km Mechanical parameters:

Min. bending radius: 10 x Ø

Design:

Conductors: bare solid copper conductor, class 1 acc. to EN 60228,IEC 60228

Insulation: special ceramic silicone rubber

Core colors:without green/yellow earth conductor

2-core – blue, brown

3-core – brown, black, grey

4-core – blue, brown, black, grey

5-core – blue, brown, black, grey, black Above 5 cores – In each layer:brown (starting conductor), blue (reference conductor), remaining conductors – any freely selected colours with exception of green, yellow, brown, blue with green/yellow earth conductor

3-core – green/yellow, blue, brown

4-core – green/yellow, brown, black, grey

5-core – green/yellow, blue, brown, black, grey Above 5 cores – In external layer:green/yellow (starting conductor), blue (reference conductor) remaining conductors – any freely selected colours with exception of green, yellow, brown, blue

Other layers: brown (starting conductor), blue (reference conductor) remaining conductors – any freely selected colours with exception of green, yellow, brown, blue

Wrapping: polyester tape

Screen: aluminium backed polyester tape with tinned copper drain wire

Outer sheath: halogen-free compound; colour: red

Application:Halogen-free fire resistant cables designed for installations in places where it is necessary to ensure operation of devices under fire conditions. They are recommended for emergency lighting installations, smoke extraction systems, alarm systems, signalling systems, sound warning and control systems, fire alarm signalling and automation and other safety ensuring circuits. Static screen in FEICHUN S(St) cables protects them against interferences of external magnetic fields.
